TE Connectivity 2081570-1

B08GLY1PZ6

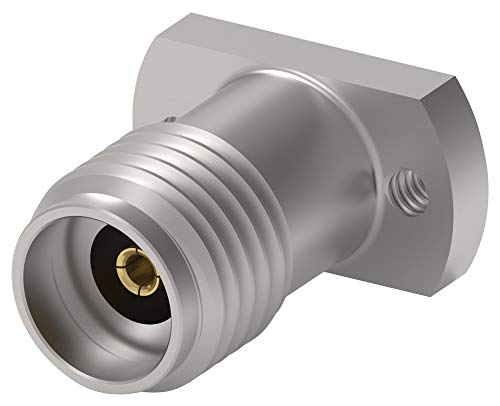

TE CONNECTIVITY - 2081570-1 - RF/Coaxial Connector, 2.92mm Coaxial, Straight Flanged Jack, Solder, 50 ohm, Beryllium Copper

TE CONNECTIVITY - 2081570-1 - RF/Coaxial Connector, 2.92mm Coaxial, Straight Flanged Jack, Solder, 50 ohm, Beryllium Copperzoom

Attributes

Key Value
Base Product Number2081570
Body FinishPassivated, -
Body MaterialStainless Steel
Cable Connector Orienta.Straight
Cable Group-
CategoryConnectors, Interconnec.
Center Contact MaterialBeryllium Copper
Center Contact PlatingGold
Circuit ApplicationSignal
ConnectorWire & Cable
Connector Style2.92mm
Connector SystemCable-to-Board
Connector TypeJack, Female Socket
Contact TerminationCompression
Description2.92MM JACK 2 HOLE FLAN.
Detailed Description2.92mm Connector Jack, .
Dielectric MaterialPolyetherimide (PEI)
Digi-Key Part Number17-2081570-1-ND
EMIPCB Ground
Fastening TypeThreaded
Features-
Frequency - Max40 GHz
Height Above PC Board10.94?mm?[?.431?in?]
Housing Color-
Impedance50Ohm, 50
Includes-
Ingress Protection-
Insertion Loss-
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.2081570-1
Manufacturer Standard L.15 Weeks
Mating Cycles500
MfrTE Connectivity AMP Con.
Mounting FeatureFlange
Mounting TypeSurface Mount
Number of Coaxial Conta.1
Number of Ports1
Number of Positions1
Number of Signal Positi.1
Operating Frequency40
Operating Temperature-55?C ~ 125?C
Operating Temperature R.-55 ? 125??C?[?-67 ? 25.
PackageBox
Packaging MethodBag
PCB Mount OrientationVertical
Port ConfigurationSingle Port
Product StatusActive
RF Connector Center Con.Beryllium Copper
RF Connector Center Con.Gold
RF Connector Coupling M.Screw
RF Connector Mated Oute.9.65?mm?[?.38?in?]
RF Connector StyleJack
RF Contact Captivation .Mechanical
RF InterfaceOS 2.9
Series-
Shield TerminationScrew
Termination Method to P.Single-Sided
Voltage Rating335 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Mouser571-2081570-154.96194TE Connectivity54.96 @ 1
Onlinecomponents.com2081570-160.51125TE Connectivity60.51 @ 1
thumbzoomNewark41AH535269.441000In StockTE CONNECTIVITY69.44 @ 1000
thumbzoomDigi-Key1070725570.32138TE Connectivity AMP Connectors70.32 @ 1
