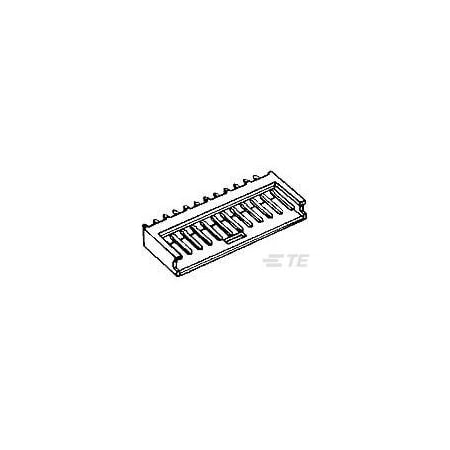

TE Connectivity 280371-3

mpn280371-3
brandname: TE Connectivity (TE)
manufacturername: TE Connectivity (TE)

TE Connectivity Part Number 280371-3

Brand: TE Connectivity
PartNumber: 280371-3
Manufacturer: TE Connectivity
Label: TE Connectivity

Attributes

Key	Value
Alternate Part No.	571-280371-3
Approved Standards	UL 94V-0
Brand	TE Connectivity / AMP
Centerline (Pitch)	2.54?mm?[?.1?in?], Ther.
Color	Black
Connection Material	Brass
Connector	Printed Circuit Board
Connector Contact Load .	Fully Loaded
Connector Profile	Standard
Connector Terminates To	Printed Circuit Board
Contact Base Material	Brass
Contact Finish	Gold Plated
Contact Gender	Pin (Male)
Contact Material	Brass
Contact Mating Area Pla.	Gold
Contact Mating Area Pla.	30
Contact Plating	Gold
Contact Plating Thickne.	30 ?in
Contact Shape	Round
Contact Type	Pin
Dielectric Withstanding.	750 V
Features	Shrouded
Flammability Rating	UL 94 V-0
Header Type	Shrouded
High Temperature Housing	-65 ? 105
Hole Center to Center	2.54 mm
Housing Color	2.54?mm?[?.1?in?]
Housing Material	Without, Thermoplastic
Item	PCB Mount Header
Latching Type	Detent Windows
Manufacturer	TE Connectivity
Manufacturer Part No.	280371-3
Material	Thermoplastic
Mating Alignment	Without
Mating Alignment Type	With
Mating Post Length	6.6 mm, 6.6?mm?[?.26?in.
Mating Retention	With
Mating Retention Type	Through Hole - Solder
Max. Temp.	105?C
Mounting Angle	Vertical
Number of Contacts	4
Number of Positions	4
Number of Rows	1
Number of Shrouded Sides	Black
Operating Temperature R.	1.65, - 55 C to + 105 C
Package Quantity	1
Packaging Method	CSA LR7189, UL E28476
Packaging Quantity	Box
Panel Mount Feature	Without
PCB Connector Assembly .	PCB Mount Header
PCB Contact Termination.	Tin
PCB Contact Termination.	2.5
PCB Mount Orientation	Vertical
PCB Mount Retention	Detent Window
Pitch	2.54 mm
Post Size	.025
Product Category	Headers & Wire Housings
Product Type	Headers
Row Spacing	2.54 mm
Row-to-Row Spacing	3
Series	AMPMODU MOD II
Shrouded End Dimension	2.54?mm?[?.1?in?]
Standards	CSA LR7189; UL E28476
Strain Relief	Polarization
Terminal Finish	Tin Plated
Terminal Type	Through Hole
Termination Method to P.	3.5?mm?[?.138?in?]
Termination Post	6.6?mm?[?.26?in?]
Termination Post Length	3.5 mm
Termination Style	Through Hole
Tradename	AMPMODU
Type	Shrouded
UL Flammability Rating	No

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Waldom	TE CONNECTIVITY AMP BRAND 280371-3	0.66	85	4864	TE CONNECTIVITY/AMP BRAND	0.66 @ 85
Newark	12H8038	0.804	3000	124	AMP - TE CONNECTIVITY	0.804 @ 3000
us.rs-online.com	72051417	0.89	3000	124	TE Connectivity	0.89 @ 3000
swatee.com	280371-3	1.15	1	345	TE Connectivity	1.15 @ 1
Zoro	G005892355	97.75	85	124	Te Connectivity	97.75 @ 85
