1734795-1

B00LVEUTIW

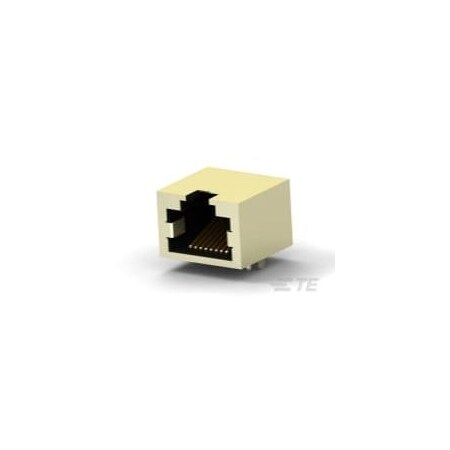

Modular Connectors / Ethernet Connectors RJ45 8P8C SHD W/O LED DIP 6u (10 pieces)

Modular Connectors / Ethernet Connectors RJ45 8P8C SHD W/O LED DIP 6u (10 pieces)zoom

Attributes

Key Value
Alternate Part No.571-1734795-1
Base Product Number1734795
BrandTE Connectivity
CategoryConnectors, Interconnec.
Centerline (Pitch)1.02?mm?[?.04?in?]
Circuit ApplicationSignal
ColorBlack
ConnectorPrinted Circuit Board
Connector Contact Densi.Standard
Connector Height11.3?mm?[?.444?in?]
Connector Mounting TypeBoard Mount
Connector ProfileStandard
Connector TypeJack
Contact Base MaterialPhosphor Bronze
Contact Current Rating .1
Contact FinishGold
Contact Finish Thickness6.00?in (0.152?m)
Contact MaterialPhosphor Bronze
Contact Mating Area Pla.Gold
Contact Mating Area Pla..15??m?[?6??in?]
Contact PlatingGold
Contact Underplating Ma.Nickel
DescriptionCONN MOD JACK 8P8C R/A .
Detailed DescriptionJack Modular Connector .
Digi-Key Part NumberA121573-ND
FeaturesBoard Guide
Flammability RatingUL 94 V-0
Grounding OptionsPCB Ground
Housing ColorBlack
Housing MaterialPA 9T GF30, Polyamide (.
Ingress Protection-
KeyedNo
LED ColorDoes Not Contain LED
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.1734795-1
Manufacturer Product Nu.1734795-1
Manufacturer Standard L.4 Weeks
Mating Entry LocationSide
MfrTE Connectivity AMP Con.
Modular Connector StyleJack
Modular JackRJ45
Modular Jack Latch Orie.Inverted - Latch Up
Modular JacksRJ Type Jacks & Plugs
Mounting AngleRight
Mounting TypeThrough Hole
Number of Loaded Positi.8
Number of Ports1
Number of Positions8
Number of Positions/Con.8p8c (RJ45, Ethernet)
Number of Rows1
Operating Temperature-
Operating Temperature R.-40 ? 85??C?[?-40 ? 185.
Orientation90? Angle (Right)
PackageTray
Packaging MethodBox & Tray, Tray
Packaging Quantity80
Panel Mount FeatureWithout
Part StatusActive
PCB Contact Termination.Gold Flash
PCB Mount OrientationRight Angle
PCB Tail Length2.4?mm?[?.094?in?]
PCB Thickness (Recommen.1.6?mm?[?.063?in?]
Performance CategoryCat 3, Cat 5
Port ConfigurationSingle Port
Port Matrix Configurati.1 x 1
ProductModular Jacks
Product CategoryModular Connectors / Et.
Product StatusActive
RatingsCat3
Series-
Shield MaterialBrass
Shield Plating MaterialNickel
ShieldedYes
ShieldingShielded
Status IndicatorNone
Tab DirectionUp
TerminationSolder
Termination Method to P.Through Hole - Solder
Termination StyleThrough Hole
UL Flammability RatingUL 94V-0
USOC CodesRJ45

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Future Electronics90897250.8521600140TE Connectivity0.852 @ 1600
Allied ElectronicsE52357080.931600140TE Connectivity0.93 @ 1600
Onlinecomponents.com1734795-11.01800TE Connectivity / AMP Brand1.0 @ 1
thumbzoomTME1734795-11.180090TE Connectivity1.1 @ 800
TE Connectivity1734795-11.1639116108TE Connectivity (TE)1.1639 @ 1
thumbzoomNewark61W83101.31160076TE CONNECTIVITY1.31 @ 1600
RS Delivers909-80871.39921750TE Connectivity1.3992 @ 1
thumbzoomswatee.com1734795-11.611109TE Connectivity1.6 @ 1
thumbzoomDigi-Key23314781.6512210TE Connectivity AMP Connectors1.65 @ 1
thumbzoomZoroG1059303221.658090Te Connectivity1.65 @ 80
AmazonSCB00LVEUTIW18.66190TE Connectivity0.00062518.66 @ 1
