TE Connectivity 2042088-1

B06XT1TGCB

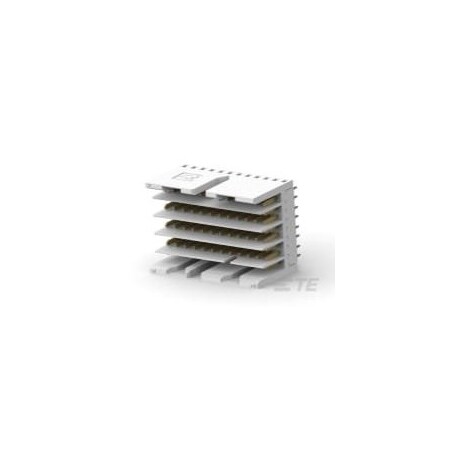

TE CONNECTIVITY 2042088-1 PCB backpanel-connectors 96 Position 1.45 mm Plug Press Fit Male Z-Pack Slim UHD Connector - 1 Item(s)

TE CONNECTIVITY 2042088-1 PCB backpanel-connectors 96 Position 1.45 mm Plug Press Fit Male Z-Pack Slim UHD Connector - 1 Item(s)zoom

Attributes

Key Value
Centerline (Pitch)1.45?mm?[?.057?in?]
Circuit ApplicationSignal
ConnectorPrinted Circuit Board
Connector Height9.5?mm?[?.374?in?]
Connector StylePlug
Connector SystemBoard-to-Board
Connector Width12.51?mm?[?.493?in?]
Contact Base MaterialCopper Alloy
Contact Current Rating ..5
Contact Length3.1
Contact Mating Area Pla.Gold
Contact ShapeDual Beam
Contact TypePin
Contact Underplating Ma.Nickel
Country of Origin (subj.India
Guide HardwareWithout
Housing ColorNatural
Housing MaterialLCP (Liquid Crystal Pol.
Impedance30
Mating AlignmentWith
Mating Alignment TypePolarization
Mating RetentionWithout
Module TypeCenter
Number of Columns12
Number of Pairs96
Number of Positions192
Number of Rows8
Number of Signal Positi.192
Operating Temperature R.-55 ? 105??C?[?-67 ? 22.
Operating Voltage50
Packaging MethodTray
PCB Contact Termination.Tin
PCB Hole Diameter.4?mm?[?.0158?in?]
PCB Mount AlignmentWith
PCB Mount OrientationVertical
PCB Mount RetentionWith
PCB Mount Retention TypeAction/Compliant Tail
PCB Thickness (Recommen.1.2
Row-to-Row Spacing1.25?mm?[?.05?in?]
SealableNo
ShroudedUnshrouded
Stack Height1.6
StackableYes
Termination Method to P.Through Hole - Press-Fit
Termination Post1.6?mm?[?.493?in?]
UL Flammability RatingUL 94V-0

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 2042088-110.3110563TE CONNECTIVITY/AMP BRAND10.31 @ 10
TE Connectivity2042088-111.74245118TE Connectivity (TE)11.74245 @ 5
Newark58R284712.265405TE CONNECTIVITY12.26 @ 540
HotendaH72772112.5815TE Connectivity AMP Connectors12.58 @ 5
thumbzoomPowell Electronics2042088-113.86145405TE Connectivity13.8614 @ 540
thumbzoomZoroG10106747317.085405Te Connectivity17.08 @ 540
Onlinecomponents.com2042088-123.36150TE Connectivity / AMP Brand23.36 @ 5
