Description:

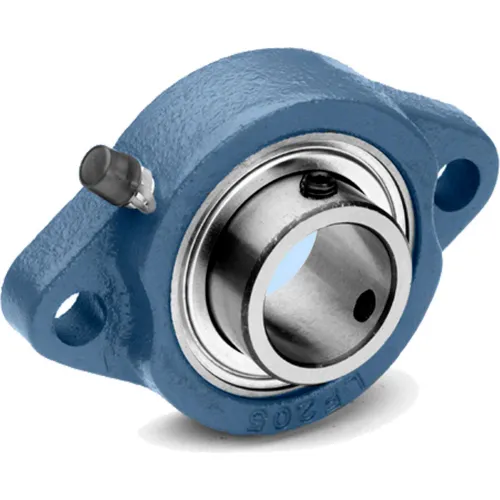

2 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 3/4 in, Bore Type Cylindrical, Closure Double Sealed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing SB204-12G, Lubricant Material NLGI #2 Equivalent, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Number of Mount Holes 2, Overall Height 2 25/64 in, Overall Length 3 35/64 in, Overall Width 1 5/32 in, Rolling Element Rows 1
Weight:
1.0
Weight:
1.0 LB
Preferred Price:
35.77
Price:
35.77
Min Simple Price:
16.79
Absolute Min Price:
23.89
Min Price:
23.89
Dimensions:
[5.0, 3.0, 2.0]
qty:
21
simpleSku:
MTY3Ng:::SBLF204-12G
sku:
MTY3Ng::G4:SBLF204-12G@y0
condition:
11
seller:
Zoro
amzMan:
tritan
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Bearing Housing Material Type, Housing Material | Cast Iron |
| Bearing Insert Material | 52100 Steel, Alloy Steel |
| Bearing Insert Type | Ball, Radial Ball |
| Bearing Lubrication | Shell Alvania RL2 or NLGI #2 Equivalent |
| Bearing Material Grade | 52100 |
| Bolt Hole Center-to-Center | 2.8150" |
| Bolt Size, Mounting Bolt Size | 5/16 in |
| Bore Dia. | 0.75" |
| Bore Diameter | 3/4 in |
| Bore Type | Cylindrical |
| Brand | Tritan |
| Closure | Double Sealed |
| Color | Grey |
| Current Stock | 397 |
| Dynamic Load Capacity | 2,877 lbf, 2827 Lbf |
| Features | Narrow Inner Ring Bearing, SBLF Light Duty |
| Finish, Housing Material Finish | Painted |
| Flange Thickness | 0.437 in |
| Housing Type | Rhombus |
| Included Bearing | SB204-12G |
| International Shipping | No |
| Item | 2 Bolt Flange Bearing, 2-Bolt Flange Bearing |
| Lead Time | Expected to ship in 1-2 business days |
| Locking Type, Shaft Locking Type | Set Screw |
| Lubricant Material | NLGI #2 Equivalent |
| Lubrication Openings | One Zirc Fitting |
| Maximum Temperature | 250 Degrees F |
| Minimum Temperature | -40 Degrees F |
| Mount Hole Center-to-Center Length | 2.812 in, 2 13/16 in |
| Mount Hole Size | 13/32 in |
| Mpn | SBLF204-12G |
| Number of Mount Holes | 2 |
| Overall Height | 10 mm, 2.406 in |
| Overall Length | 90 mm, 3.562 in |
| Overall Width | 1.156 in, 61 mm |
| Rolling Element Rows | 1 |
| Seal Material | Rubber |
| Series | SBLF |
| Shaft Locking Type | Set Screws |
| SKU | ZO-G9564064 |
| Standards | ISO, AFBMA, AFBMA, ISO |
| Static Load Capacity | 1495 Lbf |
| Static Radial Load Capacity | 1,494 lbf |
| SubCategory | Power Transmission |
| System of Measurement | Inch |
| Temp. Range | -4 to +248? F |
| UPC | 888569039255 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Zoro | G9564064 | 16.79 | 16.79 | 1 | 345 | Tritan | 0.77 | 16.79 @ Qty: 1+ | |
 | simsupply.com | ZO-G9564064 | 25.85 | 25.85 | 1 | 397 | Tritan | 25.85 @ Qty: 1+ | ||
 | Global Industrial | WBB1873254 | 29.12 | 29.12 | 1 | In Stock | Tritan | 29.12 @ Qty: 1+ | ||
| grainger.ca | WWG36UY01 | 30.10643288 | 30.10643288 | 1 | In Stock | TRITAN | 0.77 | 30.10643288 @ Qty: 1+ | ||
 | Raptor Supplies | AH7JVZ | 34.928361 | 34.928361 | 1 | In Stock | TRITAN | 34.928361 @ Qty: 1+ |
