2-6339191-1

B00LVE9N84

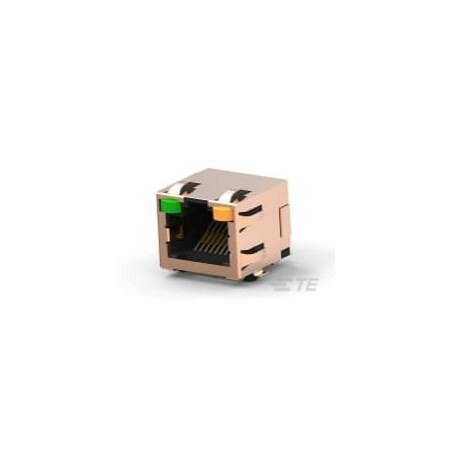

Modular Connectors / Ethernet Connectors MJ,RJ4,5SM,TSHLD LED (G/O) (100 pieces)

Modular Connectors / Ethernet Connectors MJ,RJ4,5SM,TSHLD LED (G/O) (100 pieces)zoom

Attributes

Key Value
Base Product Number6339191
CategoryConnectors, Interconnec.
Centerline (Pitch)1.02?mm?[?.04?in?]
Circuit ApplicationSignal
ConnectorPrinted Circuit Board
Connector Contact Densi.Standard
Connector Height13.35?mm?[?.525?in?]
Connector Mounting TypeBoard Mount
Connector ProfileStandard
Connector TypeJack
Contact Base MaterialPhosphor Bronze
Contact Current Rating .1.5
Contact FinishGold
Contact Finish Thickness50.0?in (1.27?m)
Contact MaterialPhosphor Bronze
Contact Mating Area Pla.Gold
Contact Mating Area Pla.1.27??m?[?50??in?]
Contact Underplating Ma.Nickel
Country of Origin (subj.India
DescriptionCONN MOD JACK 8P8C R/A .
Detailed DescriptionJack Modular Connector .
Digi-Key Part NumberA121555TR-ND - Tape & R.
FeaturesBoard Guide, Solder Ret.
Grounding OptionsPCB and Panel Ground
Housing ColorBlack
Housing MaterialLCP (Liquid Crystal Pol.
Ingress Protection-
KeyedNo
LED ColorGreen - Orange
LED Color (Top Left)Green
LED Color (Top Right)Orange
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.2-6339191-1
Manufacturer Standard L.17 Weeks
Mating Entry LocationSide
MfrTE Connectivity AMP Con.
Modular Connector StyleJack
Modular JackRJ45
Modular Jack Latch Orie.Inverted - Latch Up
Modular JacksRJ Type Jacks & Plugs
Mounting TypeSurface Mount
Number of Loaded Positi.8
Number of Ports1
Number of Positions8
Number of Positions/Con.8p8c (RJ45, Ethernet)
Number of Rows1
Operating Temperature-40?C ~ 85?C
Operating Temperature R.-40 ? 85??C?[?-40 ? 185.
Orientation90? Angle (Right)
PackageTape & Reel (TR)
Packaging MethodReel
Packaging Quantity200
Panel Mount FeatureWith
Part StatusActive
PCB Contact Termination.Tin
PCB Mount OrientationRight Angle
PCB Mount Retention TypeBoardlock
PCB Tail Length.86?mm?[?.03?in?]
PCB Thickness (Recommen.1.57?mm?[?.062?in?]
Performance CategoryCat 5
Port ConfigurationSingle Port
Port Matrix Configurati.1 x 1
Product StatusActive
RatingsCat5
Series-
Shield MaterialCopper Alloy
Shield Plating MaterialTin
ShieldedYes
ShieldingShielded, EMI Finger
Status IndicatorLED
Tab DirectionUp
TerminationSolder
Termination Method to P.Surface Mount
UL Flammability RatingUL 94V-0

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com2-6339191-13.261200TE Connectivity / AMP Brand3.26 @ 5
Future ElectronicsC0129531303.70836005TE Connectivity3.708 @ 3600
WaldomTE CONNECTIVITY AMP BRAND 2-6339191-13.892002145TE CONNECTIVITY/AMP BRAND3.89 @ 200
Arrow2-6339191-14.60617666TE Connectivity4.606 @ 5
Newark17R78654.6336005AMP - TE CONNECTIVITY4.63 @ 3600
TE Connectivity2-6339191-14.951511053TE Connectivity (TE)4.9515 @ 5
thumbzoomZoroG2010170335.7136005Te Connectivity5.71 @ 3600
Mouser571-2-6339191-16.3813068TE Connectivity6.38 @ 5
thumbzoomDigi-Key23276447.8515TE Connectivity AMP Connectors7.85 @ 5
AmazonSCB07KTHMBYH41.4915TE Connectivity / AMP41.49 @ 5
AmazonTPB07KTHMBYH41.63151TE Connectivity / AMP Brand41.63 @ 5
