TE Connectivity 1761609-3

B00HKI5TLU

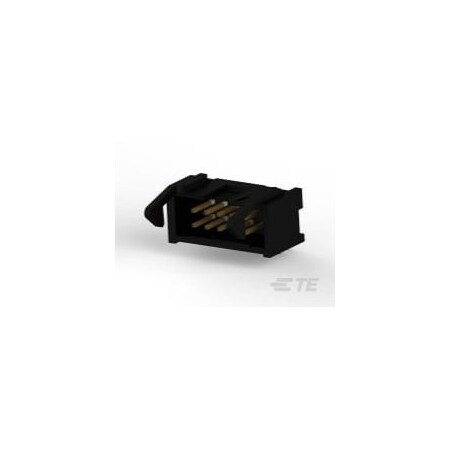

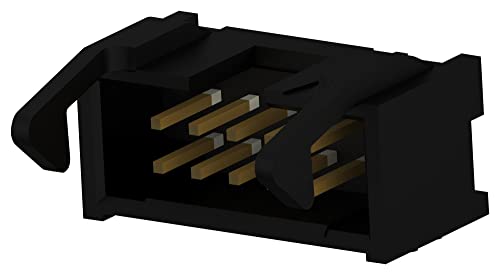

TE Connectivity Part Number 1761609-3

TE Connectivity Part Number 1761609-3zoom

Attributes

Key Value
Alternate Part No.571-1761609-3
AngleRight Angle
ApplicationSignal
Applications-
Base Product Number1761609
BrandTE Connectivity / AMP
CategoryConnectors, Interconnec.
Centerline (Pitch)2.54?mm?[?.1?in?]
Circuit ApplicationSignal
ColorBlack
Connection MaterialPhosphor Bronze
ConnectorPlug, Printed Circuit B.
Connector Height9.19?mm?[?.36?in?]
Connector Mounting TypeBoard Mount
Connector ProfileLow
Connector SystemWire-to-Board
Connector Terminates ToPrinted Circuit Board
Connector TypeHeader
Contact Base MaterialPhosphor Bronze
Contact Current Rating .1
Contact FinishGold Flash over Palladi.
Contact Finish - MatingGold or Gold-Palladium
Contact Finish - PostTin
Contact Finish Thicknes.30.0?in (0.76?m)
Contact Finish Thicknes.100.0?in (2.54?m)
Contact GenderPin (Male)
Contact Length - Mating0.237" (6.02mm)
Contact Length - Post0.102" (2.60mm)
Contact MaterialPhosphor Bronze
Contact Mating Area Pla.Gold Flash
Contact Mating Area Pla.30 ? 30
Contact PlatingGold
Contact Plating Thickne.30 ?in
Contact ShapeSquare
Contact TypeMale Pin, Pin
Contact Underplating Ma.Nickel
Current Rating1 A
Current Rating (Amps)1A per Contact
DescriptionCONN HEADER R/A 10POS 2.
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberA31192-ND
Fastening TypeLatch Lock/Eject Hooks,.
FeaturesWith Ejection Latches, .
Flammability RatingUL 94 V-0
For Use WithAMP-Latch Receptacle
Header TypePin Header
Height9.19 mm
Hole Center to Center2.54 mm
Housing ColorBlack
Housing MaterialPBT, Thermoplastic
Ingress Protection-
Insulation ColorBlack
Insulation Height0.362" (9.20mm)
Insulation MaterialPolybutylene Terephthal.
ItemConnector
Latching TypeEjection
Length0.8 in
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.1761609-3
Manufacturer Product Nu.1761609-3
Manufacturer Standard L.12 Weeks
Mated Stacking Heights-
MaterialPBT
Material Flammability R.UL94 V-0
Mating AlignmentWith
Mating Alignment TypeCenter
Mating Entry LocationTop
Mating RetentionWith
Mating Retention TypeLatch
Max. Temp.105?C
Max. Voltage250V AC
MfrTE Connectivity AMP Con.
Mounting AngleRight
Mounting TypeThrough Hole, Right Ang.
Number of Contacts10
Number of Positions10
Number of Positions Loa.All
Number of Rows2
Operating Temperature-65?C ~ 105?C
Operating Temperature R.-65 ? 105??C?[?-85 ? 22.
Overall Contact Length-
PackageTube
Package Quantity1
PackagingTray
Packaging MethodTube
Packaging Quantity26
Panel Mount FeatureWithout
PCB Contact Termination.Tin
PCB Mount AlignmentWithout
PCB Mount OrientationRight Angle
PCB Mount RetentionWithout
Pitch2.54 mm, 2.54 mm (0.100.
Pitch - Mating0.100" (2.54mm)
Primary TypeBoard Mount
Product CategoryHeaders & Wire Housings
Product StatusActive
Product TypeHeaders
Row Spacing2.54 mm
Row Spacing - Mating0.100" (2.54mm)
Row-to-Row Spacing2.54?mm?[?.1?in?]
SeriesAMP-LATCH, AMP-LATCH Se.
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
Terminal FinishTin Plated
Terminal TypeThrough Hole
TerminationSolder, Through Hole
Termination Method to P.Through Hole - Solder
Termination Post2.6?mm?[?.102?in?]
Termination Post Length2.6 mm
Termination StyleThrough Hole
TradenameAMP-LATCH
TypeRight Angle Header, Shr.
UL Flammability RatingUL 94V-0
Voltage Rating250VAC
