2199119-8

B00MMUQ9EW

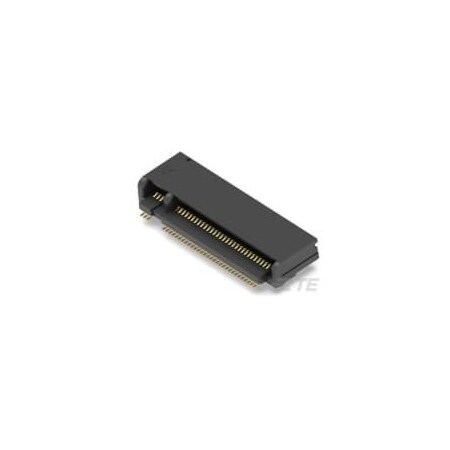

PCI Express / PCI Connectors .5PITCH 3.2H KEY A EMBOSS NGFF MINICARD (1 piece)

PCI Express / PCI Connectors .5PITCH 3.2H KEY A EMBOSS NGFF MINICARD (1 piece)zoom

Attributes

Key Value
Base Product Number2199119
Card Thickness-
Card TypeM.2 (NGFF) Mini Card
CategoryConnectors, Interconnec.
Centerline (Pitch).5?mm?[?.0197?in?]
Circuit ApplicationPower
ColorBlack
ConnectorPrinted Circuit Board
Connector Height3.2?mm?[?.126?in?]
Connector Mounting TypeBoard Mount
Connector SystemBoard-to-Board
Connector Width8.7?mm?[?.343?in?]
Contact Base MaterialCopper Alloy
Contact Current Rating ..5
Contact FinishGold
Contact Finish Thickness15.0?in (0.38?m)
Contact MaterialCopper Alloy
Contact Mating Area Pla.Gold
Contact Mating Area Pla.15
Contact Type-
DescriptionCONN M.2 FMALE 67POS 0..
Detailed Description67 Position Female Conn.
Digi-Key Part NumberA115901TR-ND - Tape & R.
FeaturesBoard Guide
Flange Feature-
GenderFemale
Housing ColorBlack
Housing MaterialHigh Temperature Thermo.
Keying CodeA
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.2199119-8
Manufacturer Standard L.13 Weeks
Material - InsulationThermoplastic
MfrTE Connectivity AMP Con.
Mounting TypeSurface Mount, Right An.
Number of Positions67
Number of Positions/Bay.-
Number of Rows2
Operating Temperature-40?C ~ 80?C
Operating Temperature R.-40 ? 80??C?[?-40 ? 176.
PackageTape & Reel (TR)
Packaging MethodTape & Reel
PCB Contact Termination.Gold Flash, Tin
PCB Contact Termination.Matte
PCB Mount OrientationRight Angle
Pitch0.020" (0.50mm)
Product StatusActive
Read OutDual
SealableNo
Series-
TerminationSolder
Termination Method to P.Surface Mount

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com2199119-80.5463001200TE Connectivity0.546 @ 300
WaldomTE CONNECTIVITY AMP BRAND 2199119-80.6412004800TE CONNECTIVITY/AMP BRAND0.64 @ 1200
thumbzoomZoroG1059267761.0412005Te Connectivity1.04 @ 1200
TE Connectivity2199119-81.0829110373TE Connectivity (TE)1.0829 @ 5
thumbzoomNewark89W21491.22144005AMP - TE CONNECTIVITY1.22 @ 14400
thumbzoomDigi-Key42089061.88417704TE Connectivity AMP Connectors1.884 @ 5
Allied ElectronicsE5243772573.02396005TE Connectivity573.023 @ 9600
