TE Connectivity 2288172-7

B096L572QV

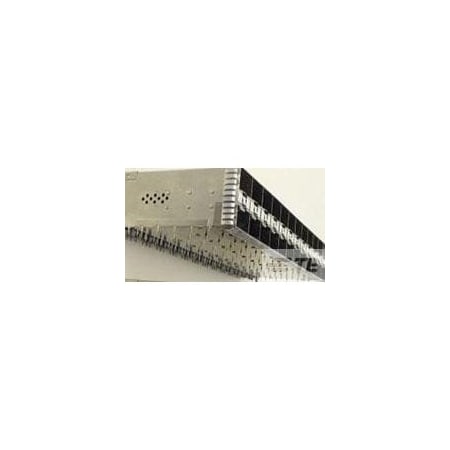

2288172-7, Conn zSFP+ RCP 240 POS Press RA Thru-Hole 240Terminal 24Port (1 Items)

2288172-7, Conn zSFP+ RCP 240 POS Press RA Thru-Hole 240Terminal 24Port (1 Items)zoom

Attributes

Key Value
ApplicationSignal
Cage MaterialNickel Silver Alloy
Cage TypeStacked
CategoryUncategorized
Centerline (Pitch)&thin..8?mm?[?.0315?in?]
Circuit ApplicationSignal
Connector & Contact Ter.Printed Circuit Board
Connector SystemCable-to-Board
Connector Terminates ToPrinted Circuit Board
Contact FinishGold Flash over Palladi.
Contact Mating Area Pla.Gold or Gold Flash over.
Contact Mating Area Pla..76??m?[?29.92??in?]
Contact Plating Thickne.0.76 ?m
Data Rate (Max)32
DescriptionZSFP+ STACKED 2X12 RCPT.
Digi-Key Part Number2266-2288172-7-ND
EMI Containment Feature.EMI Springs
FeaturesIntegrated Lightpipes; .
Flammability RatingUL 94 V-0
For Use WithzSFP+ SMT Connector
For Use With Pluggable .zSFP+ SMT Connector
Form FactorzSFP+(SFP28)
Heat Sink CompatibleNo
Hole Center to Center0.8 mm
Included Heat SinkNo
Included LightpipeYes
IncludesLightpipe
Integrated LightpipesYes
ItemCage Assembly
Lightpipe ConfigurationDual Triangular (Inner)
Lightpipe StyleStandard
ManufacturerTE Connectivity
Manufacturer Product Nu.2288172-7
MaterialNickel Silver Alloy
Max. Temp.85?C
MfrTE Connectivity
Number of Contacts480
Number of Ports24
Number of Positions480
Operating Temperature R.-40 ? 85??C?[?-40 ? 185.
PackageBox
Package Quantity1
Packaging MethodTray
PCB Mounting StyleThrough Hole Press-Fit
PCB Thickness (Recommen.1.5?mm?[?.059?in?]
Pluggable I/O Applicati.zSFP+ Thermally Enhanced
Port Matrix Configurati.2 x 12
Product StatusActive
Product TypeCage Assembly with Inte.
SealableYes
Series*
Tail Length?:</s.1.8?mm?[?.07?in?]
Tail Plating MaterialTin
Terminal FinishTin Plated
Terminal TypeThrough Hole - Press-Fit
Termination Method to P.Through Hole - Press-Fit
UL Flammability RatingUL 94V-0

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 2288172-7173.4912088TE CONNECTIVITY/AMP BRAND173.49 @ 1
Newark41AJ6701222.7112049AMP - TE CONNECTIVITY222.71 @ 1
thumbzoomZoroG701068375231.991In StockTe Connectivity231.99 @ 1
thumbzoomDigi-Key14736211251.9412088TE Connectivity251.94 @ 1
