Black Box C6APC28-WH-01

mpnC6APC28-WH-01
brandname: BLACK BOX
manufacturername: BLACK BOX

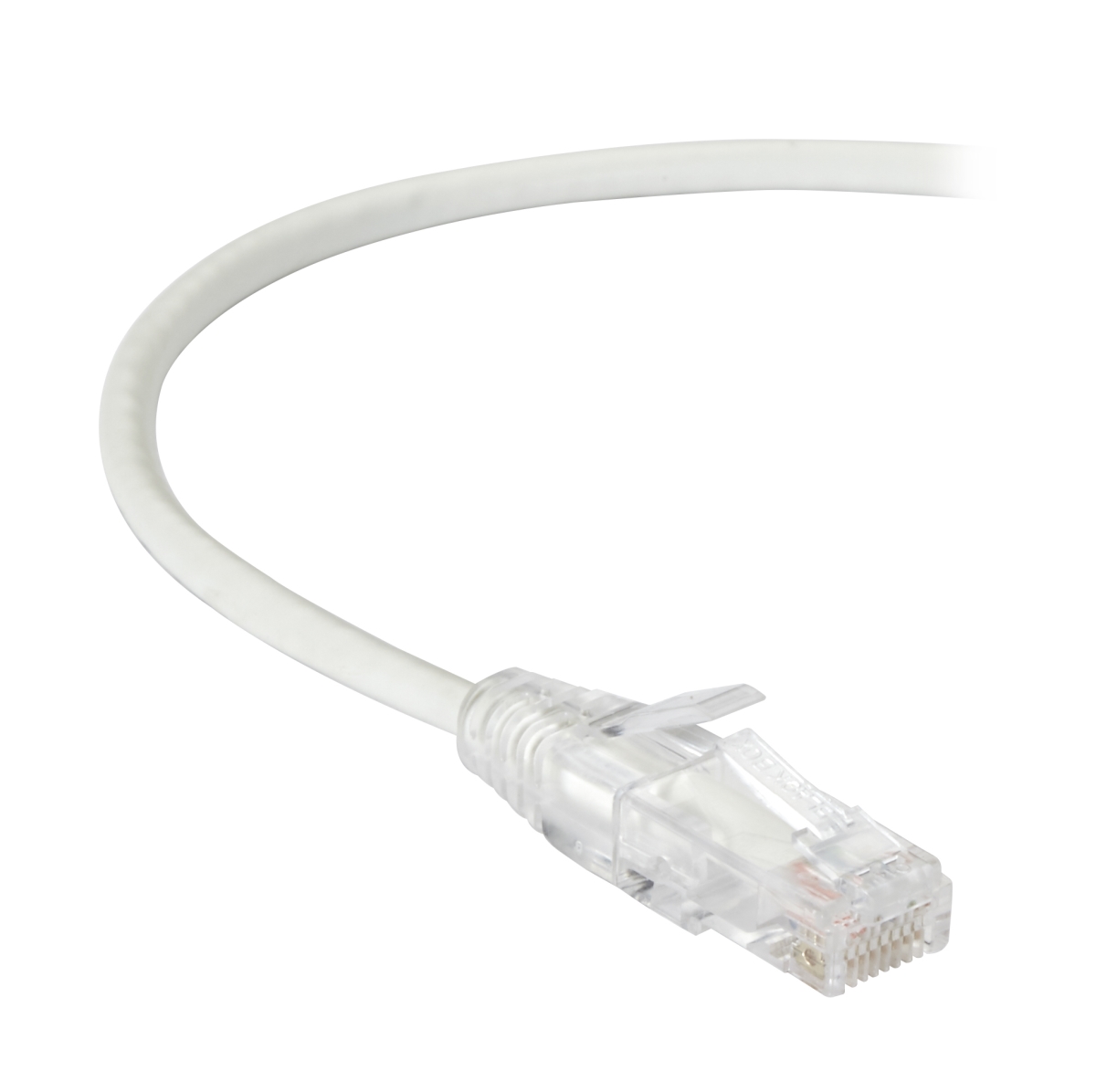

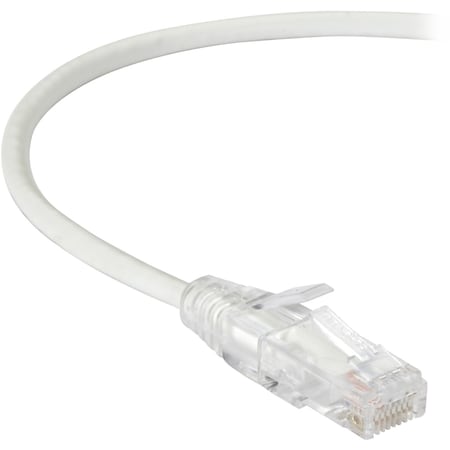

Black Box C6APC28-WH-01, Slim-Net 28 AWG Patch Cable, Pack of 50 pcs

Brand: Black Box
PartNumber: C6APC28-WH-01
PackageQuantity: 50
Manufacturer: Black Box Corporation
Label: Black Box Corporation

Attributes

Key	Value
ACR	100 MHz: 24.4 dB/100 m;.
ACRF	100 MHz: 27.8 dB/100 m;.
American Wire Gauge	28 AWG
Approvals	UL?E196163
Best Sellers Rank	#21,831 in Cat 6 Ethern.
Brand	Black Box Network Servi.
Brand Name	Black Box
Cable Characteristic	Patch Cable
Cable Length	1 ft
Cable Type	Category 6a, Ethernet
Color	White
Conductor Gauge	28 AWG, stranded bare c.
Connector on First End	1 x RJ-45 Male Network
Connector on Second End	1 x RJ-45 Male Network
Contact Plating	Gold
Country of Origin	China
Data Transfer Rate	10 Gbit/s
Date First Available	January 30, 2018
Delay Skew	1-10 MHz: 40 +/- 10 nS/.
Device Supported	Patch Panel, Wallplate,.
Environmental Certifica.	RoHS
Environmentally Friendly	Yes
Features	Stranded, Snagless, Boo.
Frequency	500 MHz
Gauge	28.0
Height	0.50
Impedance	100 ? 15 ohms
Insertion Loss (Maximum)	100 MHz: 19.8 dB/100 m;.
Insulation	HDPE
Is Discontinued By Manu.	No
Item Dimensions LxWxH	2 x 2 x 0.5 inches
Item model number	C6APC28-WH-01
Jacket	PVC, CM
Jacket Type	CM
Length	9.00
Limited Warranty	Lifetime
Manufacturer	Black Box Network Servi.
Manufacturer Part Number	C6APC28-WH-01
Manufacturer Website Ad.	http://www.blackbox.com
Material	Polyvinyl Chloride (PVC.
NEXT	100 MHz: 44.3 dB/100 m;.
Outer Diameter	0.161"" (4.1 mm)
Package Quantity	1
Pair-to-Ground Capacita.	330 pF/100 m max.
Product Dimensions	2 x 2 x 0.5 inches
Product Line	Slim-Net
Product Name	Slim-Net Cat.6a UTP Pat.
Product Type	Network Cable
Product with faster shi.	true
Propagation Delay	250 MHz: 535.5 ns/100 m.
PS-ACR	100 MHz: 22.4 dB/100 m;.
PS-ACRF	100 MHz: 24.8 dB/100 m;.
PS-NEXT	100 MHz: 42.3 dB/100 m;.
Resistance	22.3 ohms/100 m
Return Loss	100 MHz: 19.0 dB/100 m;.
Shielding	No
Shipping	undefined (Fixed Shippi.
Weight	0.10
Width	7.00

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
bhphotovideo.com	BLC6AP28WH1	5.544	1	50		Black Box		5.544 @ 50
Newark	83Y9017	5.99	1	50		BLACK BOX		5.99 @ 50
directdeals.com	C6APC28-WH-01	5.99	1	50		Black Box		5.99 @ 50
Megadepot	C6APC28-WH-01	7.43	1	50		BlackBox		7.43 @ 50
usmegastore.com	C6APC28-WH-01	7.43	1	50		BlackBox		7.43 @ 50
ipcstore.com	14_C6APC28-WH-01_1	8.0	1	50		Black Box		8.0 @ 50
AmazonTP	B079FJYD2B	8.82	1	50	2	Black Box Network Services		8.82 @ 50
unbeatablesale.com	SYBA160202	8.89	1	50		BLACK BOX		8.89 @ 50
Amazon	B079FJYD2B	9.35	1	50		Black Box Network Services		9.35 @ 50
PCNation	3FG598	10.81	1	50		BLACK BOX CORPORATION	1.0	10.81 @ 50
CDW	4741807	10.99	1	889		Black Box		10.99 @ 50
spaceboundsolutions.com	SBS-588239	12.61	1	50		Black Box Innovations		12.61 @ 50
Zoro	G9497250	12.98	1	50		Black Box		12.98 @ 50
Beach Audio	19679622	16.28	1	100		Black Box		16.28 @ 50
homeessentialsdirect.com	C6APC28-WH-01	20.91	1	50		Black Box Network Services		20.91 @ 50
