Hubbell DS120GY

B002QN1VZ2

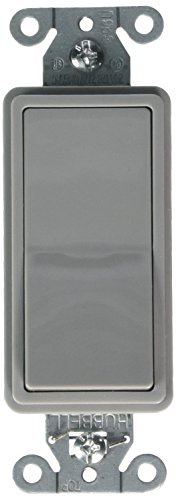

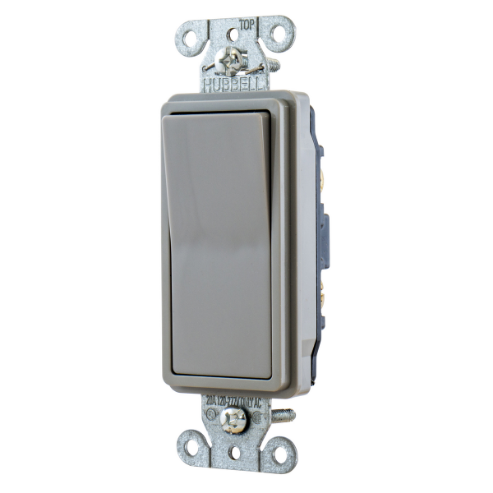

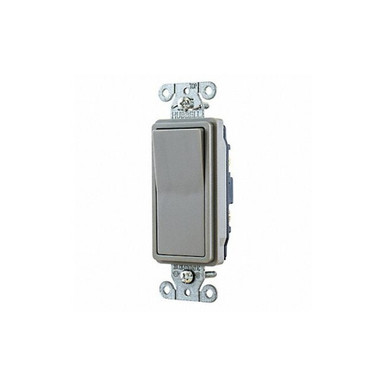

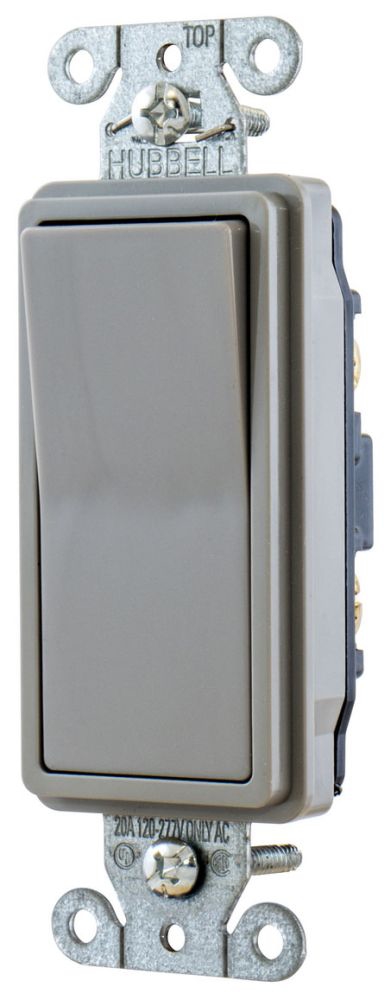

Hubbell DS120GY Decorator Switch, Single Pole, 20 amp, 120/277V, Gray

Hubbell DS120GY Decorator Switch, Single Pole, 20 amp, 120/277V, Grayzoom

Attributes

Key Value
ActuatorRocker
Amperage20 A
Amperage Rating20A, 20 Amp
Amps AC20 A
AntimicrobialNo
Application EnvironmentCommercial
ApprovalsCSA, UL
AWG Range#14 AWG to #10 AWG
BrandHubbell
Brand NameHubbell-Wiring
Cable Size14-10 AWG
ColorGray
Color FamilyGray
ColourGray
Conductor MaterialNo
ConnectivityBack and Side Wired
Country of OriginCN - China
Country Of OriginChina
Country of Origin (subj.China
Current20 A
Current / amperage rati.20 A
Current Rating20 A
Current rating20 A
Current Stock97
Degree of ProtectionNo
Dielectric strengthWithstands 1500V AC min.
Dimensions4.28 Inch Length x 1.43.
ECCNEAR99
Energy Star FlagNo
Environmental ConditionsV2 Flammability Rated P.
Family SeriesHubbell Switches
FeaturesAutomatic Self-Groundin.
FinishNo
For MarketCommercial Grade
FunctionNo
GradeSpecification
Gross Weight0.2 lbs
GroundingSelf, Grounded
GTIN00783585154435
Height1.54 in, 1.54 in.
Horsepower Rating1 hp
Housing MaterialThermoplastic
HP @ 120 VAC1 hp
HP @ 240 VAC2 hp
IlluminatedNo
Industry Standard(s)UL Listed
Insulation MaterialNo
International ShippingNo
ItemWall Switch
Item NameDecorator Switch
Item NumberDS120GY
Jacket MaterialNo
Lead TimeExpected to ship in 1-2.
Length4.28 in., 4.28 in
LockingNo
ManufacturerHubbell
Manufacturer NameHubbell-Wiring
Manufacturer Part NumberDS120GY
MarketCommercial
MaterialThermoplastic
Max Temperature Rise30C maximum at rated cu.
Maximum Operating Tempe.75 Degrees C
Maximum Wire Size10 AWG
Minimum Operating Tempe.-40 Degrees C
Minimum Wire Size14 AWG
MountingScrew
Mounting Screw TypeThread Cleaning Captive
MpnDS120GY
Net Weight0 lbs
No. of Poles1
Number of polesSingle Pole
Number of Poles1
Number of Switches1
Operating temperatureMaximum continuous 75C .
OperatorRocker
Operator ColorGray
Overall Height1.54 in
Overall Width1.43 in
Packing TypeNo
Rated HP1
Rated Voltage120-277V ac
Resistance PropertiesImpact Resistant
RoHS FlagNo
SKUZO-G2406275
StandardUL Listed
StandardsUL Listed, CSA Certifie.
Stranded/SolidNo
StyleSingle Pole
Sub BrandStyle Line?
SubCategoryElectrical
Switch ConfigurationSingle Pole
Switch FunctionMaintained
Switch StyleRocker, Rocker Switch
Switch typeSingle Pole
Switch Type1-Pole
Temperature-40-167 ?F
Temperature Rating-40 to 75 deg C Operati.
Terminal ConnectionBack and Side Wired
TypeRocker/Decorator, Comme.
UNSPSC39122226
UPC783585154435, 783585154.
Voltage120-277 VAC, 120 VAC, 2.
Voltage AC120 to 277
Voltage Rating120/277 Volt AC, 120/27.
Width1.43 in.
Width (in)1.43
Wire Connection TypeScrew Terminals
Wire Connection TypesScrew Terminals
Wire Range#14 to #10 AWG Solid an.
Wire size#14 AWG to #10 AWG
WiringBack and Side Wired
Wiring MethodBack and Side

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Monarch Electric5073685.651In StockHubbell-Wiring5.65 @ 1
thumbzoomgordonelectricsupply.comDS120GY5.951In StockHUBBELL5.95 @ 1
thumbzoomZoroG24062756.551In StockHubbell0.26.55 @ 1
Graybar252014009.06081In StockHubbell Wiring Device - Kellems9.0608 @ 1
steinerelectric.com4658809.691In StockHubbell Wiring Device-Kellems9.69 @ 1
thumbzoomsimsupply.comZO-G240627513.25197Hubbell13.25 @ 1
kirbyrisk.com237282614.481In StockHubbell14.48 @ 1
thumbzoomsustainablesupply.comC120740818.411In StockHubbell0.218.41 @ 1
Onlinecomponents.comDS120GY19.041In StockHubbell19.04 @ 1
thumbzoomRaptor SuppliesAE7LEG22.80511351In StockHUBBELL WIRING DEVICE-KELLEMS22.8051135 @ 1
thumbzoomMRO Supply101734323.072In StockHubbell Wiring23.07 @ 2
thumbzoomGalcoDS120GY-HBBL23.751In StockHubbell0.223.75 @ 1
grainger.caHBLDS120GY33.394334061In StockHUBBELL WIRING DEVICE-KELLEMS0.233.39433406 @ 1
Newark06R637242.961In StockHUBBELL WIRING DEVICES42.96 @ 1
