TE Connectivity 3-1473059-1

B096T1K4ZQ

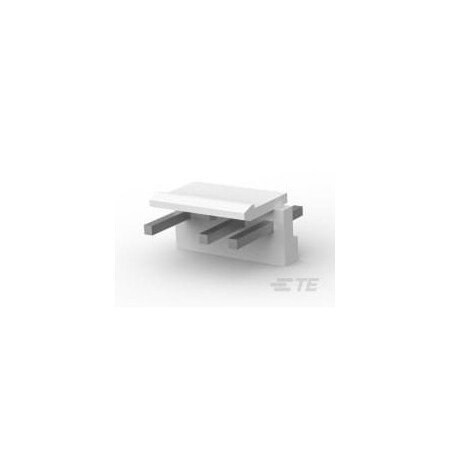

Power Connector, 4 POS, Straight Solder

Power Connector, 4 POS, Straight Solderzoom

Attributes

Key Value
CategoryUncategorized
Centerline (Pitch)3.96?mm?[?.156?in?]
Circuit ApplicationPower
ConnectorPrinted Circuit Board
Connector Contact Load .Selectively Loaded
Connector Height9.2?mm?[?.36?in?]
Connector ProfileStandard
Connector SystemWire-to-Board
Connector Width8.5?mm?[?.334?in?]
Contact Base MaterialBrass
Contact Current Rating .8
Contact Mating Area Pla.Tin
Contact Mating Area Pla.1??m?[?39.36??in?]
Contact Retention Withi.Without
Contact ShapeSquare
Contact TypeTab
Contact Underplating Ma.Nickel
Country of Origin (subj.China
Description04P EP HDR ASSY NO2P GWT
Digi-Key Part Number2266-3-1473059-1-ND
Header TypeUnshrouded
Housing ColorNatural
Housing MaterialNylon GF15
ManufacturerTE Connectivity
Manufacturer Product Nu.3-1473059-1
Mating RetentionWithout
MfrTE Connectivity
Number of Columns4
Number of Loaded Positi.3
Number of Positions4
Number of Power Positio.4
Number of Rows1
Operating Temperature R.-25 ? 105??C?[?-13 ? 22.
Operating Voltage250
PackageBox
Packaging MethodBag
Packaging Quantity500
Panel Mount FeatureWithout
PCB Connector Assembly .PCB Mount Header
PCB Contact Termination.Tin
PCB Mount AlignmentWithout
PCB Mount OrientationVertical
PCB Mount RetentionWithout
Product StatusActive
SealableNo
Series*
Termination Method to P.Through Hole - Solder
Termination Post3.7?mm?[?.145?in?]
UL Flammability RatingUL 94V-2

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 3-1473059-10.1972691940TE CONNECTIVITY/AMP BRAND0.197 @ 269
thumbzoomZoroG0009390790.2829250Te Connectivity0.28 @ 250
thumbzoomDigi-Key147005330.3028056204382741940TE Connectivity0.302805620438 @ 274
Newark41AJ72130.41511940AMP - TE CONNECTIVITY0.415 @ 250
