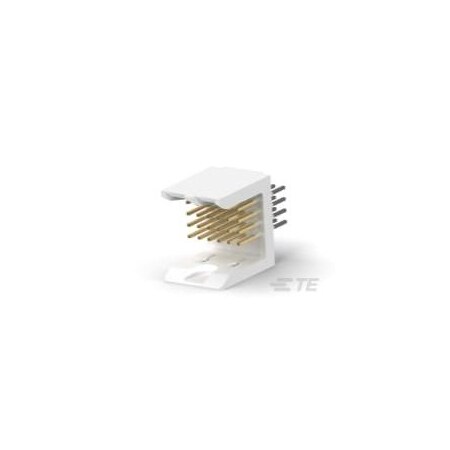

5536504-1, 2MM FB,ASY,024,SIG,HDR,EN,6.50 (10 Items)

5536504-1, 2MM FB,ASY,024,SIG,HDR,EN,6.50 (10 Items)zoom

Attributes

Key Value
Alternate Mfr Part Numb.5536504-1
Alternate Part No.571-5536504-1
ApplicationSignal
Board-to-Board Configur.Vertical
BrandTE Connectivity
Centerline (Pitch)2?mm?[?.079?in?]
Circuit ApplicationSignal
Connection MaterialPhosphor Bronze
ConnectorPrinted Circuit Board
Connector Height17?mm?[?.669?in?]
Connector Mounting TypeBoard Mount
Connector SystemBoard-to-Board
Connector Terminates ToPrinted Circuit Board
Connector Width16?mm?[?.622?in?]
Contact Base MaterialPhosphor Bronze
Contact Current Rating .3
Contact FinishGold Plated
Contact MaterialPhosphor Bronze
Contact Mating Area Pla.Gold
Contact Mating Area Pla..76??m?[?30??in?]
Contact PlatingGold
Contact Plating Thickne.0.76 ?m
Contact TypePin
Current Rating3 A
For Use WithReceptacle Assembly
Height17 mm
Hole Center to Center2 mm
Housing ColorNatural
Housing MaterialLiquid Crystal Polymer .
Impedance24
ItemPCB Mount Header
ManufacturerTE Connectivity
Manufacturer Part No.5536504-1
MaterialLiquid Crystal Polymer
Mating AlignmentWith
Mating Alignment TypePolarizing Rib
Mating Entry LocationTop
Max. Temp.125?C
Max. Voltage30V AC
Mounting AngleVertical
Number of Contacts24
Number of Positions24
Number of Rows4
Number of Signal Positi.24
Operating Temperature R.-55 ? 125??C?[?-67 ? 25.
Package Quantity1
PackagingTube
Packaging MethodTube
Packaging Quantity48
PCB Connector Assembly .PCB Mount Header
PCB Contact Termination.Tin
PCB Mount AlignmentWithout
PCB Mount OrientationVertical
PCB Mount RetentionWith
PCB Mount Retention TypeAction/Compliant Tail
PCB Thickness (Recommen.2.4?mm?[?.76?in?]
Pitch2 mm, 2.00 mm (0.079")
Primary TypeHard Metric
Product CategoryHigh Speed/Modular Conn.
SealableNo
SeriesSignal, Z-PACK FB, Z-PA.
StackableNo
Terminal FinishTin Plated
Terminal TypeThrough Hole - Press-Fit
TerminationPress Fit
Termination Method to P.Through Hole - Press-Fit
Termination Post4.25?mm?[?.167?in?]
Termination StyleThrough Hole - Press Fit
TypePlug
UL Flammability RatingUL 94V-0
Width0.622 in
