TE Connectivity / AMP Brand 8-1393644-3

B00FRC0ACO

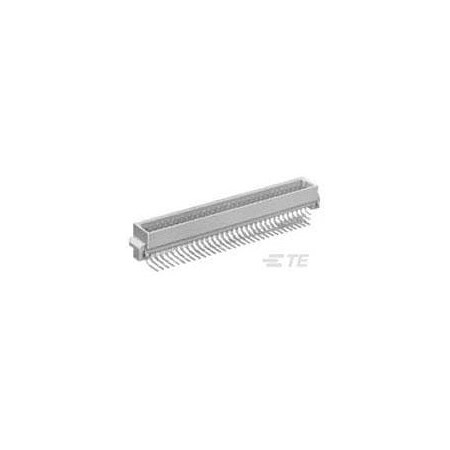

TE Connectivity/AMP Brand 8-1393644-3 Connector Backplane

TE Connectivity/AMP Brand 8-1393644-3 Connector Backplanezoom

Attributes

Key Value
Alternate Part No.571-8-1393644-3
Base Product Number1393644
Board-to-Board Configur.Right Angle
BrandTE Connectivity / AMP
CategoryConnectors, Interconnec.
Centerline (Pitch)2.54?mm?[?.1?in?]
Circuit ApplicationSignal
ConnectorPlug, Printed Circuit B.
Connector Mounting TypeBoard Mount
Connector SystemBoard-to-Board
Connector TypePlug, Male Pins, 96
Contact Base MaterialPhosphor Bronze
Contact Current Rating .1.5
Contact FinishGold or Gold-Palladium,.
Contact Finish Thickness-, -55?C ~ 125?C
Contact MaterialPhosphor Bronze
Contact TypePin
Country of Origin (subj.Poland
Current Rating1.5 A
Current Rating (Amps)UL94 V-0, -
DIN LevelII
DIN SizeStandard
FeaturesGold or Gold-Palladium,.
Housing MaterialPolyester, Polyester - .
Level, Class2
Make First / Break LastNo
ManufacturerTE Connectivity
Manufacturer Part No.8-1393644-3
Material - Insulation3, Polybutylene Terepht.
Material Flammability R.UL94 V-0, Polybutylene .
Mating AlignmentWith
Mating Alignment TypePolarization
MfrTE Connectivity AMP Con.
Mounting AngleRight
Mounting TypeSolder, Through Hole, R.
Number of Columns32
Number of PositionsAll, 96
Number of Positions Loa.All, 0.100" (2.54mm)
Number of Rows3, 2
Number of Signal Positi.96
Operating Temperature-, -55?C ~ 125?C
Operating Temperature R.-55 ? 105??C?[?-67 ? 22.
PackageActive, Tray
Packaging MethodTray
Panel Mount FeatureWithout
Part StatusPlug, Male Pins
PCB Mount OrientationRight Angle
PCB Mount RetentionWith
PCB Mount Retention TypeBoardlock
PCB Thickness (Recommen.1.6?mm?[?.063?in?]
Pitch2.54 mm, C, 0.100" (2.5.
Position Locations Load.Every even pitch
Product CategoryDIN 41612 Connectors
Product StatusActive
Product TypePlugs
Row-to-Row Spacing2.54?mm?[?.1?in?]
Rows LoadedA, B, C
SealableNo
Series1393644, Tray, Eurocard
ShieldedNo
StyleC, Through Hole, Right .
Tail Length3 mm
TerminationSolder, Board Lock
Termination Method to P.Through Hole - Solder
Termination Post3?mm?[?.118?in?]
Termination StyleSolder Pin
TypeC
UL Flammability RatingUL 94V-0

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
TE Connectivity8-1393644-34.371141229TE Connectivity (TE)4.37114 @ 5
thumbzoomswatee.com8-1393644-35.61259TE Connectivity5.6 @ 5
HotendaH7057895.8815TE Connectivity AMP Connectors5.88 @ 5
Mouser571-8-1393644-36.22156TE Connectivity / AMP6.22 @ 5
Newark76AC03487.1215AMP - TE CONNECTIVITY7.12 @ 5
Onlinecomponents.com8-1393644-37.3258TE Connectivity / AMP7.32 @ 5
RS Delivers718-83749.51615TE Connectivity9.516 @ 5
Digi-Key20560819.541582TE Connectivity AMP Connectors9.54 @ 5
thumbzoomZoroG1010647621158.02005Te Connectivity1158.0 @ 200
