TE Connectivity 3-644456-6

B073RQ957V

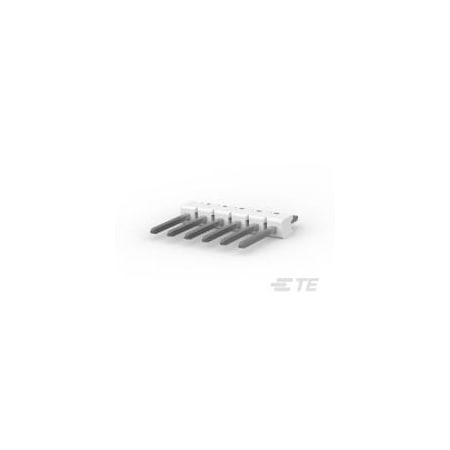

TE CONNECTIVITY 3-644456-6 MTA-100 Series 6 Position 2.54 mm Pitch Single Row Tin Plated Header - 100 item(s)

TE CONNECTIVITY 3-644456-6 MTA-100 Series 6 Position 2.54 mm Pitch Single Row Tin Plated Header - 100 item(s)zoom

Attributes

Key Value
Alternate Mfr Part Numb.3-644456-6
ApplicationsGeneral Purpose
Base Product Number644456
CategoryConnectors, Interconnec.
Centerline (Pitch)2.54?mm?[?.1?in?]
Circuit ApplicationSignal
ConnectorPrinted Circuit Board
Connector Height10.03?mm?[?.395?in?]
Connector Mounting TypeBoard Mount
Connector ProfileNarrow
Connector SystemWire-to-Board
Connector TypeHeader
Contact Base MaterialCopper Alloy
Contact Current Rating .5
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.150.0?in (3.81?m)
Contact Finish Thicknes.150.0?in (3.81?m)
Contact Length - Mating0.295" (7.49mm)
Contact Length - Post0.110" (2.79mm)
Contact MaterialCopper Alloy
Contact Mating Area Pla.Tin
Contact Mating Area Pla.3.81 ? 8.89??m?[?150 ? .
Contact Retention Withi.Without
Contact ShapeSquare
Contact TypeMale Pin, Pin
Contact Underplating Ma.Nickel
Country of Origin (subj.China
Current Rating (Amps)Varies by Wire Gauge
DescriptionCONN HEADER VERT 6POS 2.
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberA31116-ND
Fastening Type-
Features-
Header TypeBreakaway
Housing ColorNatural
Housing MaterialPolyester - GF
Ingress Protection-
Insulation ColorNatural
Insulation Height0.100" (2.54mm)
Insulation MaterialThermoplastic
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.3-644456-6
Manufacturer Standard L.15 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
Mating RetentionWithout
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Contacts6
Number of Positions6
Number of Positions Loa.All
Number of Rows1
Operating Temperature-55?C ~ 105?C
Operating Temperature R.-55 ? 105??C?[?-67 ? 22.
Overall Contact Length0.505" (12.83mm)
PackageBulk
Packaging MethodBag/Box
Packaging Quantity500
Panel Mount FeatureWithout
PCB Connector Assembly .PCB Mount Header
PCB Contact Termination.Tin
PCB Contact Termination.Matte
PCB Mount AlignmentWithout
PCB Mount OrientationVertical
PCB Mount RetentionWithout
PCB Thickness (Recommen.1.6?mm?[?.063?in?]
Pitch2.54 mm (0.100")
Pitch - Mating0.100" (2.54mm)
Primary TypeBoard Mount
Product StatusActive
Row Spacing - Mating-
SealableNo
SeriesMTA-100, MTA-100 Series
ShroudingUnshrouded
StyleBoard to Cable/Wire
TerminationSolder
Termination Method to P.Through Hole - Solder
Termination Method to W.Solder
Termination Post2.79?mm?[?.11?in?]
TypeHeader
UL Flammability RatingUL 94V-0
Voltage Rating250VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Sager Electronics3-644456-60.19510000476TE Connectivity0.195 @ 10000
WaldomTE CONNECTIVITY AMP BRAND 3-644456-60.22625017770TE CONNECTIVITY/AMP BRAND0.226 @ 250
Onlinecomponents.com3-644456-60.253111513TE Connectivity / AMP Brand0.253 @ 50
Future Electronics20238160.294111365TE Connectivity0.294 @ 50
thumbzoomZoroG4009281160.322850Te Connectivity0.32 @ 50
us.rs-online.com700870700.343931000050TE Connectivity0.34393 @ 10000
thumbzoomNewark16M29660.344150AMP - TE CONNECTIVITY0.344 @ 50
TE Connectivity3-644456-60.3859215863TE Connectivity (TE)0.38592 @ 50
RS Delivers745-4845P0.458411260TE Connectivity0.4584 @ 50
thumbzoomDigi-Key6983480.504161966TE Connectivity AMP Connectors0.504 @ 50
thumbzoomTME3-644456-60.713250TE Connectivity0.713 @ 50
AmazonSCB00KSQ1H1C1.45150TE Connectivity1.45 @ 50
AmazonTPB00OVED06M5.991502TE CONNECTIVITY / AMP5.99 @ 50
