TE Connectivity 1888250-1

B00FRBW7KI

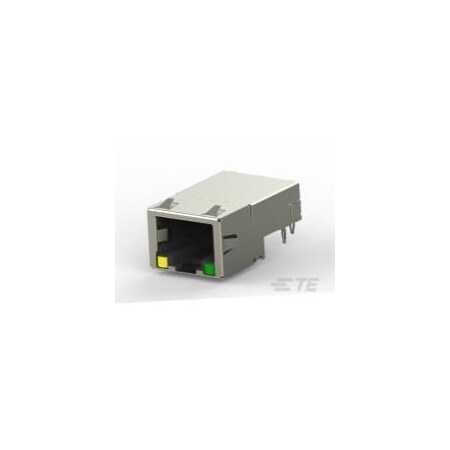

Te Connectivity Conn, Rj45, Jack, 1Port, 8P8C, Cat5E - 1888250-1

Te Connectivity Conn, Rj45, Jack, 1Port, 8P8C, Cat5E - 1888250-1zoom

Attributes

Key Value
Agency ApprovalsUL ; CSA
Alternate Mfr Part Numb.1888250-1
Alternate Part No.571-1888250-1
AngleRight Angle
Base Product Number1888250
BrandTE Connectivity / AMP
Cable TypeCat 5
CategoryConnectors, Interconnec.
Centerline (Pitch)1.02?mm?[?.04?in?]
Circuit ApplicationSignal
ColorBlack
ConnectorPrinted Circuit Board
Connector Contact Densi.Standard
Connector Height4.2?mm?[?.165?in?]
Connector Mounting TypeBoard Mount, Panel
Connector ProfileLow
Connector TypeJack
Contact Base MaterialPhosphor Bronze
Contact Current Rating ..02, .6
Contact FinishGold
Contact Finish Thickness50.0?in (1.27?m)
Contact MaterialPhosphor Bronze
Contact Mating Area Pla.Gold
Contact Mating Area Pla.1.27??m?[?50??in?]
Contact PlatingGold Plated Nickel, Gold
Contact Underplating Ma.Nickel
Country of Origin (subj.China
Current Rating1.5 A
DescriptionCONN MOD JACK 8P8C R/A .
Detailed DescriptionJack Modular Connector .
Digi-Key Part NumberA98526-ND
Features-
GenderFemale
Grounding OptionsPCB and Panel Ground
Housing ColorBlack
Housing MaterialPolyester, Thermoplastic
Ingress Protection-
KeyedNo
LED ColorGreen - Yellow
LED Color (Top Left)Green
LED Color (Top Right)Yellow
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.1888250-1
Manufacturer Product Nu.1888250-1
Manufacturer Standard L.12 Weeks
Mating Entry LocationSide
MfrTE Connectivity AMP Con.
ModeSinglemode
Modular Connector StyleJack
Modular JackRJ45
Modular Jack Latch Orie.Standard - Latch Down
Modular JacksRJ Type Jacks & Plugs
Mounting AngleRight
Mounting TypeBoard Edge; Panel Mount.
Number of Contacts8
Number of Loaded Positi.8
Number of Ports1
Number of Positions8
Number of Positions/Con.8p8c (RJ45, Ethernet)
Number of Rows1
Operating Temperature-
Operating Temperature R.-40 ? 85??C?[?-40 ? 185.
Orientation90? Angle (Right)
PackageTray
Packaging MethodBox & Tray, Tray
Packaging Quantity40
Panel Mount FeatureWithout
PCB Contact Termination.Tin
PCB Mount OrientationRight Angle
PCB Tail Length2.29?mm?[?.091?in?]
PCB Thickness (Recommen.1.6
Performance CategoryCat 5
Port ConfigurationSingle Port
Port Matrix Configurati.1 x 1
Primary TypeRJ45
ProductModular Jacks
Product CategoryModular Connectors / Et.
Product StatusActive
RatingsCat5e
Series-
Shield MaterialCopper Alloy
Shield Plating MaterialNickel
ShieldedYes
ShieldingShielded, Shielded, EMI.
Special FeaturesShielded
Status IndicatorLED
Tab DirectionUp
TerminationThrough Hole, Press-Fit
Termination Method to P.Through Hole - Press-Fit
Termination StyleThrough Hole
TypeModular Jack
UL Flammability RatingUL 94V-0
USOC CodesRJ45
Voltage Rating150 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 1888250-13.6515912TE CONNECTIVITY/AMP BRAND3.65 @ 15
thumbzoomNewark42M98934.691000In StockTE CONNECTIVITY4.69 @ 1000
TE Connectivity1888250-15.030611100TE Connectivity (TE)5.0306 @ 1
Onlinecomponents.com1888250-15.90751090TE Connectivity5.907 @ 5
thumbzoomZoroG2010265096.181000In StockTe Connectivity6.18 @ 1000
us.rs-online.com700843936.471000In StockTE Connectivity6.47 @ 1000
AmazonTPB00HKI2SVO8.321In Stock2TE Connectivity8.32 @ 1
thumbzoomDigi-Key18359638.41212495TE Connectivity AMP Connectors8.412 @ 1
RS Delivers820-81989.2521342TE Connectivity9.252 @ 1
thumbzoomswatee.com1888250-111.3111030TE Connectivity11.31 @ 1
