TE Connectivity 1888250-3

B00DK8AB26

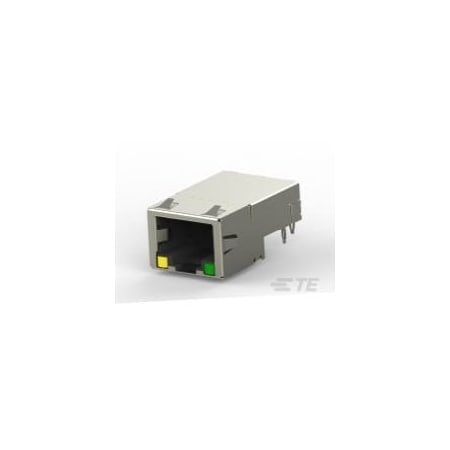

TE CONNECTIVITY 1888250-3 CAT5E RJ45 Modular Jack, 8POS, 1 Port

TE CONNECTIVITY 1888250-3 CAT5E RJ45 Modular Jack, 8POS, 1 Portzoom

Attributes

Key Value
Alternate Mfr Part Numb.1888250-3
Alternate Part No.571-1888250-3
Base Product Number1888250
BrandTE Connectivity / AMP
CategoryConnectors, Interconnec.
Centerline (Pitch)1.02?mm?[?.04?in?]
Circuit ApplicationSignal
ColorBlack
ConnectorPrinted Circuit Board
Connector Contact Densi.Standard
Connector Height4.2?mm?[?.165?in?]
Connector Mounting TypeBoard Mount, Panel
Connector ProfileLow
Connector TypeJack
Contact Base MaterialPhosphor Bronze
Contact Current Rating ..02, .6
Contact FinishGold
Contact Finish Thickness50.0?in (1.27?m)
Contact MaterialPhosphor Bronze
Contact Mating Area Pla.Gold
Contact Mating Area Pla.1.27??m?[?50??in?]
Contact PlatingGold
Contact Underplating Ma.Nickel
Country of Origin (subj.China
Current Rating1.5 A
DescriptionCONN MOD JACK 8P8C R/A .
Detailed DescriptionJack Modular Connector .
Digi-Key Part NumberA98528-ND
Features-
GenderFemale
Grounding OptionsPCB and Panel Ground
Housing ColorBlack
Housing MaterialThermoplastic
Ingress Protection-
KeyedNo
LED ColorDoes Not Contain LED
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.1888250-3
Manufacturer Product Nu.1888250-3
Manufacturer Standard L.13 Weeks
Mating Entry LocationSide
MfrTE Connectivity AMP Con.
Modular Connector StyleJack
Modular JackRJ45
Modular Jack Latch Orie.Standard - Latch Down
Modular JacksRJ Type Jacks & Plugs
Mounting AngleRight
Mounting TypeBoard Edge; Panel Mount.
Number of Loaded Positi.8
Number of Ports1
Number of Positions8
Number of Positions/Con.8p8c (RJ45, Ethernet)
Number of Rows1
Operating Temperature-
Operating Temperature R.-40 ? 85??C?[?-40 ? 185.
Orientation90? Angle (Right)
PackageTray
PackagingTray
Packaging MethodBox & Tray, Tray
Packaging Quantity40
Panel Mount FeatureWithout
PCB Contact Termination.Tin
PCB Mount OrientationRight Angle
PCB Tail Length2.29?mm?[?.091?in?]
PCB Thickness (Recommen.1.6
Performance CategoryCat 5
Port ConfigurationSingle Port
Port Matrix Configurati.1 x 1
Primary TypeRJ45
ProductModular Jacks
Product CategoryModular Connectors / Et.
Product StatusActive
RatingsCat5e
Series-
Shield MaterialCopper Alloy
Shield Plating MaterialNickel
ShieldedYes
ShieldingShielded, Shielded, EMI.
Status IndicatorNone
Tab DirectionUp
TerminationPress-Fit
Termination Method to P.Through Hole - Press-Fit
Termination StyleThrough Hole
UL Flammability RatingUL 94V-0
USOC CodesRJ45
Voltage Rating150 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Arrow1888250-32.751400400TE Connectivity2.751 @ 400
WaldomTE CONNECTIVITY AMP BRAND 1888250-33.56153040TE CONNECTIVITY/AMP BRAND3.56 @ 15
Onlinecomponents.com1888250-33.5911839TE Connectivity / AMP Brand3.59 @ 5
TE Connectivity1888250-34.274051338TE Connectivity (TE)4.27405 @ 5
Mouser571-1888250-35.351348TE Connectivity5.35 @ 5
thumbzoomZoroG1010264705.535005Te Connectivity5.53 @ 500
us.rs-online.com700420825.6810005TE Connectivity5.68 @ 1000
thumbzoomNewark18AH00567.771In StockTE CONNECTIVITY7.77 @ 5
AmazonTPB00DK8AB267.86152TE CONNECTIVITY7.86 @ 5
thumbzoomDigi-Key18359658.2214241TE Connectivity AMP Connectors8.22 @ 5
thumbzoomswatee.com1888250-39.611400TE Connectivity9.61 @ 5
AmazonSCB00DK8AB2616.3215TE Connectivity16.32 @ 5
