TE Connectivity 1888250-4

B00DWIHGOU

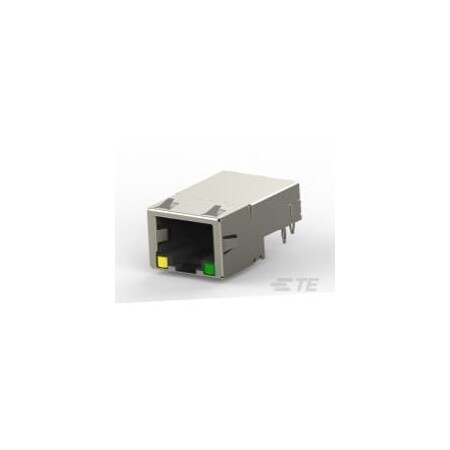

T-E Connectivity 1888250-4 (1 pc) low profile rj45, 1x1 grn/grn

T-E Connectivity 1888250-4 (1 pc) low profile rj45, 1x1 grn/grnzoom

Attributes

Key Value
Alternate Mfr Part Numb.1888250-4
CategoryConnectors, Interconnec.
Centerline (Pitch)1.02?mm?[?.04?in?]
Circuit ApplicationSignal
ConnectorPrinted Circuit Board
Connector Contact Densi.Standard
Connector Height4.2?mm?[?.165?in?]
Connector Mounting TypeBoard Mount, Panel
Connector ProfileLow
Connector TypeJack
Contact Base MaterialPhosphor Bronze
Contact Current Rating ..02, .6
Contact FinishGold
Contact Finish Thickness50.0?in (1.27?m)
Contact MaterialPhosphor Bronze
Contact Mating Area Pla.Gold
Contact Mating Area Pla.1.27??m?[?50??in?]
Contact Underplating Ma.Nickel
Country of Origin (subj.China
Features-
Grounding OptionsPCB and Panel Ground
Housing ColorBlack
Housing MaterialThermoplastic
Ingress Protection-
KeyedNo
LED ColorGreen - Green
LED Color (Top Left)Green
LED Color (Top Right)Green
Mating Entry LocationSide
MfrTE Connectivity AMP Con.
Modular Connector StyleJack
Modular JackRJ45
Modular Jack Latch Orie.Standard - Latch Down
Modular JacksRJ Type Jacks & Plugs
Mounting TypeBoard Edge; Panel Mount.
Number of Loaded Positi.8
Number of Ports1
Number of Positions8
Number of Positions/Con.8p8c (RJ45, Ethernet)
Number of Rows1
Operating Temperature-
Operating Temperature R.-40 ? 85??C?[?-40 ? 185.
Orientation90? Angle (Right)
PackageTray
Packaging MethodBox & Tray, Tray
Packaging Quantity40
Panel Mount FeatureWithout
Part StatusActive
PCB Contact Termination.Tin
PCB Mount OrientationRight Angle
PCB Tail Length2.29?mm?[?.091?in?]
PCB Thickness (Recommen.1.6
Performance CategoryCat 5
Port ConfigurationSingle Port
Port Matrix Configurati.1 x 1
Primary TypeRJ45
RatingsCat5e
Series-
Shield MaterialCopper Alloy
Shield Plating MaterialNickel
ShieldedYes
ShieldingShielded, EMI Finger
Status IndicatorLED
Tab DirectionUser Selectable
TerminationPress-Fit
Termination Method to P.Through Hole - Press-Fit
UL Flammability RatingUL 94V-0

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 1888250-43.71153415TE CONNECTIVITY/AMP BRAND3.71 @ 15
Verical1888250-43.8291363TE Connectivity3.82 @ 10
TE Connectivity1888250-45.1203911692TE Connectivity (TE)5.12039 @ 10
Mouser571-1888250-45.131391TE Connectivity5.13 @ 10
thumbzoomDigi-KeyA98529-ND5.755110TE Connectivity AMP Connectors5.755 @ 10
Future Electronics96100726.55220010TE Connectivity6.552 @ 200
us.rs-online.com700419716.59100010TE Connectivity6.59 @ 1000
thumbzoomZoroG5010264146.84210Te Connectivity6.84 @ 10
Newark95Y91737.0212884AMP - TE CONNECTIVITY7.02 @ 10
AmazonTPB07KTF4WSM78.071101TE Connectivity / AMP Brand78.07 @ 10
