TE Connectivity 1888251-2

B00KSO5P3K

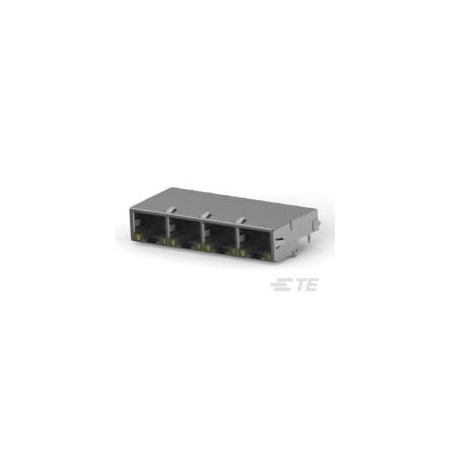

TE Connectivity Part Number 1888251-2

TE Connectivity Part Number 1888251-2zoom

Attributes

Key Value
CategoryConnectors, Interconnec.
Centerline (Pitch)1.02?mm?[?.04?in?]
Circuit ApplicationSignal
ConnectorPrinted Circuit Board
Connector Contact Densi.Standard
Connector Height4.2?mm?[?.165?in?]
Connector Mounting TypeBoard Mount, Panel
Connector ProfileLow
Connector TypeJack
Contact Base MaterialPhosphor Bronze
Contact Current Rating ..02, .6
Contact FinishGold
Contact Finish Thickness50.0?in (1.27?m)
Contact MaterialPhosphor Bronze
Contact Mating Area Pla.Gold
Contact Mating Area Pla.1.27??m?[?50??in?]
Contact Underplating Ma.Nickel
Country of Origin (subj.China
Features-
Grounding OptionsPCB and Panel Ground
Housing ColorBlack
Housing MaterialPolybutylene Terephthal.
Ingress Protection-
KeyedNo
LED ColorGreen, Yellow - Green, .
LED Color (Top Left)Green/Yellow
LED Color (Top Right)Green/Yellow
Mating Entry LocationSide
MfrTE Connectivity AMP Con.
Modular Connector StyleJack
Modular JackRJ45
Modular Jack Latch Orie.Standard - Latch Down
Modular JacksRJ Type Jacks & Plugs
Mounting TypeBoard Edge; Panel Mount.
Multiple Port Configura.Ganged
Number of Loaded Positi.8
Number of Ports4
Number of Positions8
Number of Positions/Con.8p8c (RJ45, Ethernet)
Number of Rows1
Operating Temperature-
Operating Temperature R.-40 ? 85??C?[?-40 ? 185.
Orientation90? Angle (Right)
PackageTray
Packaging MethodBox & Tray, Tray
Packaging Quantity20
Panel Mount FeatureWithout
Part StatusActive
PCB Contact Termination.Tin
PCB Mount OrientationRight Angle
PCB Tail Length2.29?mm?[?.091?in?]
PCB Thickness (Recommen.1.6
Performance CategoryCat 5
Port ConfigurationMultiple Ports
Port Matrix Configurati.1 x 4
RatingsCat5e
Series-
Shield MaterialCopper Alloy
Shield Plating MaterialTin over Nickel
ShieldedYes
ShieldingShielded, EMI Finger
Status IndicatorLED
Tab DirectionUp
TerminationPress-Fit
Termination Method to P.Through Hole - Press-Fit
UL Flammability RatingUL 94V-0

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com1888251-211.8511000TE Connectivity / AMP Brand11.85 @ 1000
thumbzoomDigi-KeyA98531-ND12.4067511000TE Connectivity AMP Connectors12.40675 @ 1000
WaldomTE CONNECTIVITY AMP BRAND 1888251-213.141862TE CONNECTIVITY/AMP BRAND13.1 @ 1000
Allied ElectronicsE523748213.9210001000TE Connectivity13.92 @ 1000
Future Electronics809159214.7610001000TE Connectivity14.76 @ 1000
TE Connectivity1888251-216.287511000TE Connectivity (TE)16.2875 @ 1000
Newark97X966216.8210001000TE CONNECTIVITY16.82 @ 1000
thumbzoomZoroG70102645021.010001000Te Connectivity21.0 @ 1000
AmazonTPB07KTJ8GQY45.59110001TE Connectivity / AMP Brand45.59 @ 1000
AmazonUNKB07KTJ8GQY45.5911000TE Connectivity / AMP Brand45.59 @ 1000
