Marathon Electric X203

B0042G9L0S

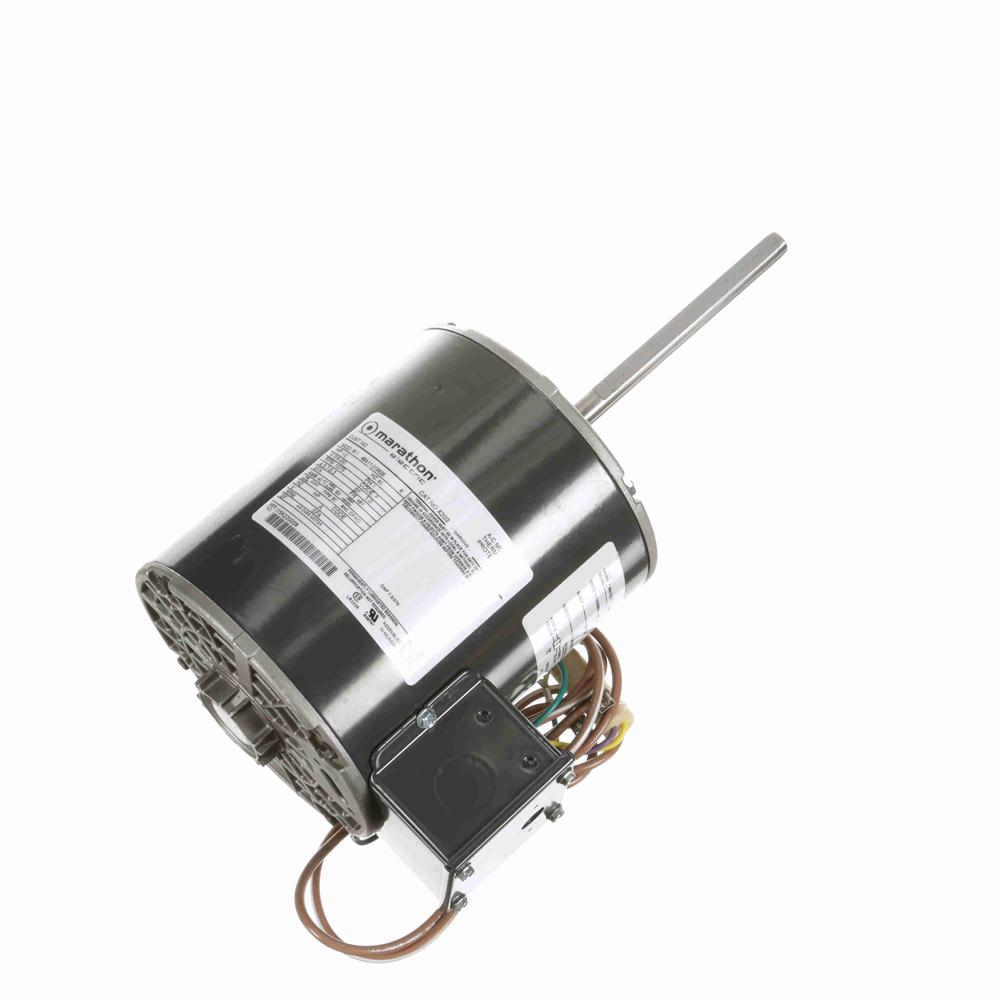

Marathon X203 HVAC Motor

Marathon X203 HVAC Motorzoom

Attributes

Key Value
Amps5.7-5.3
BearingsBall
Capacitor7.5MFD/370VAC Required
Duty CycleContinuous
Efficiency0.64
Enclosure MaterialSteel
Enclosure TypeOAO (Open Air Over)
enclosure type:OAO (Open Air-Over)
Frame48Y
frame material:Rolled Steel
frame size:48Y
frequency rating:60 Hz
HP1/2
Hz60
Insulation ClassB
Manufacturer Model #048A11O1062
Maximum Ambient Tempera.40? C
motor category:OEM Direct Replacement .
Motor Diameter5-5/8"
motor horsepower:0.50 hp, 1/2 hp
motor phase:1 ph
Motor Shell Length6"
motor supply voltage:208-230 V
MountingBand
Mounting OrientationHorizontal
mounting type:C-Face Flange
Number of Speeds1
Overall Length12.84"
Phase1
Product TypePSC (Permanent Split Ca.
RotationReversible
RPM1075
Service Factor1
Shaft Diameter1/2"
Shaft Length5.46"
Ship Weight19 lbs.
standards met:UL, CSA
synchronous rpm:1200 rpm
Thermal ProtectionAutomatic
Volts208, 230
weight:19 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoommotionindustries.com04739434229.11In StockMarathon Electric229.1 @ 1
thumbzoomemotorpro.comX203276.291In StockMarathon19.0276.29 @ 1
