TE Connectivity 2-644488-5

B00FRBVR9U

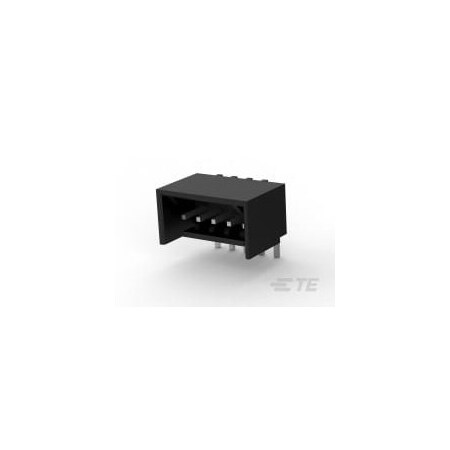

TE CONNECTIVITY 2-644488-5 PCB header-plug-board-mount MTA-100 5 Position Through-Hole Single Row Right Angle Wire to Board Header - 2000 item(s)

TE CONNECTIVITY 2-644488-5 PCB header-plug-board-mount MTA-100 5 Position Through-Hole Single Row Right Angle Wire to Board Header - 2000 item(s)zoom

Attributes

Key Value
ApplicationsGeneral Purpose
Base Product Number644488
CategoryConnectors, Interconnec.
Centerline (Pitch)2.54?mm?[?.1?in?]
Circuit ApplicationSignal
ConnectorPrinted Circuit Board
Connector Height10.41?mm?[?.41?in?]
Connector Mounting TypeBoard Mount
Connector SystemWire-to-Board
Connector TypeHeader
Contact Base MaterialCopper Alloy
Contact Current Rating .5
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.-
Contact Finish Thicknes.-
Contact Length - Mating0.200" (5.08mm)
Contact Length - Post0.130" (3.30mm)
Contact MaterialCopper Alloy
Contact Mating Area Pla.Tin
Contact Mating Area Pla.Matte
Contact Mating Area Pla.3.81 ? 6.3??m?[?150 ? 2.
Contact Retention Withi.Without
Contact ShapeSquare
Contact TypeMale Pin, Pin
Contact Underplating Ma.Nickel
Country of Origin (subj.China
Current Rating (Amps)Varies by Wire Gauge
DescriptionCONN HEADER R/A 5POS 2..
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberA30903-ND
Fastening TypeFriction Lock
Features-
Header TypeShrouded
Housing ColorBlack
Housing MaterialPolyester - GF
Ingress Protection-
Insulation ColorBlack
Insulation Height0.343" (8.71mm)
Insulation MaterialPolyester
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.2-644488-5
Manufacturer Standard L.15 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
Mating RetentionWith
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole, Right Ang.
Number of Positions5
Number of Positions Loa.All
Number of Rows1
Operating Temperature-55?C ~ 105?C
Operating Temperature R.-55 ? 105??C?[?-67 ? 22.
Overall Contact Length-
PackageBulk
Packaging MethodBox & Carton
Packaging Quantity500
Panel Mount FeatureWithout
PCB Connector Assembly .PCB Mount Header
PCB Contact Termination.Tin
PCB Contact Termination.Matte
PCB Mount AlignmentWithout
PCB Mount OrientationRight Angle
PCB Mount RetentionWithout
PCB Thickness (Recommen.1.6?mm?[?.063?in?]
Pitch - Mating0.100" (2.54mm)
Product StatusActive
Row Spacing - Mating-
SealableNo
SeriesMTA-100
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder
Termination Method to P.Through Hole - Solder
Termination Method to W.Solder
Termination Post3.3?mm?[?.13?in?]
UL Flammability RatingUL 94V-0
Voltage Rating250VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 2-644488-50.511501450TE CONNECTIVITY/AMP BRAND0.51 @ 150
Future Electronics89374920.5642000100TE Connectivity0.564 @ 2000
Onlinecomponents.com2-644488-50.611100TE Connectivity / AMP Brand0.61 @ 100
HotendaH12948950.73481100TE Connectivity AMP Connectors0.7348 @ 100
TE Connectivity2-644488-50.739612597TE Connectivity (TE)0.7396 @ 100
Newark41AJ58430.76410001450AMP - TE CONNECTIVITY0.764 @ 1000
thumbzoomDigi-Key6984291.01724110742TE Connectivity AMP Connectors1.01724 @ 100
thumbzoomZoroG7009279941.241000100Te Connectivity1.24 @ 1000
RS Delivers745-4855P1.47361100TE Connectivity1.4736 @ 100
