Marathon Electric X005

B0042GETGY

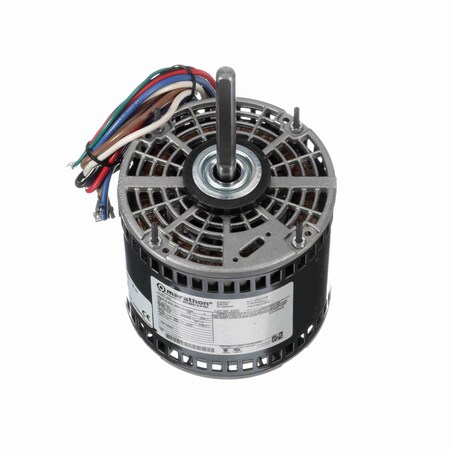

Marathon X005 48Y Frame Open Air Over 48A11O1756 Direct Drive Motor 1/2 hp, 1075 RPM, 208-230 VAC, 1 Phase, 3 Speeds, Ball Bearing, Permanent Split Capacitor, Thru-Bolt

Marathon X005 48Y Frame Open Air Over 48A11O1756 Direct Drive Motor 1/2 hp, 1075 RPM, 208-230 VAC, 1 Phase, 3 Speeds, Ball Bearing, Permanent Split Capacitor, Thru-Boltzoom

Attributes

Key Value
Alternate Mfr Part Numb.048A11O1756
Amps2.7-2.6
ApprovalsCSA, UR
Bearing TypeBall
BrandMarathon
C-Dimension10.25 (in.) (in.)
Catalog NumberX005
CEN
CompositionRolled Steel
Country of Origin (subj.United States
CSAY
DE Bearing TypeBall
DEM ReferenceMA#X005
DutyContinous
Efficiency %74 %
Electrical TypePermanent Split Capacit.
EnclosureOPAO, Open Air Over
Enclosure TypeOpen Air Over
Family SeriesMarathon Electric Motors
Frame48Y
Frame MaterialRolled Steel
Frame Type48Y
Frequency60, 60 Hz
Gross Weight0 lbs
Horsepower1/2 hp
HP1/2
Hz60
Insulation ClassB
IP Code10
Item NumberX005
Kilowatts0.37 kW
KVA CodeC
ManufacturerMarathon Electric
Manufacturer Part Number048A11O1756
Max Ambient40?C
Motor OrientationHorizontal
Mounting TypeResilient Ring - Extend.
NEMA Frame48Y
Net Weight17 lbs
Nominal Voltage208 VAC, 240 VAC
Number of Poles6
ODE Bearing TypeBall
Overall Length10.25 "
Phase1
Product CategoryHVAC/R Motors > Fan an.
RotationSelective Counterclockw.
RPM1075, 1,075 RPM
RPM (Nameplate)1075
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
Service Factor1
Shaft Diameter0.5 ", 1/2 (in.)
Shaft Extension4.06 (in.) (in.)
Shaft TypeSingle Special Extension
Speeds3
Type of Overload Protec.Automatic Lock Rotor On.
ULRecognized
Voltage208-230
Voltage (AC)208-230 VAC
Volts208-230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comX005147.01In StockMARATHON147.0 @ 1
thumbzoomGalcoX005-MARA159.281In StockMarathon Electric17.0159.28 @ 1
us.rs-online.com72650109179.41In StockMarathon Motors179.4 @ 1
thumbzoommidwestapplianceparts.comX005-MT-P184.341In StockMarathon184.34 @ 1
thumbzoomDreisilkerMA-RBC-X005195.541In StockMarathon195.54 @ 1
thumbzoomPurvisX005197.171In StockMarathon Electric197.17 @ 1
thumbzoomindustrialstores.comX005197.411In Stock10Marathon Motors197.41 @ 1
thumbzoomNational Supply NetworkB871787197.621In StockMARATHON MOTORS197.62 @ 1
thumbzoomMRO Supply2269549199.051In StockMarathon Electric199.05 @ 1
thumbzoomGuardianMARSX005233.841In StockMarathon233.84 @ 1
thumbzoomZoroG002203727300.01In Stock10Marathon300.0 @ 1
thumbzoomGlobal IndustrialWBB871655516.01In StockMarathon Motors516.0 @ 1
