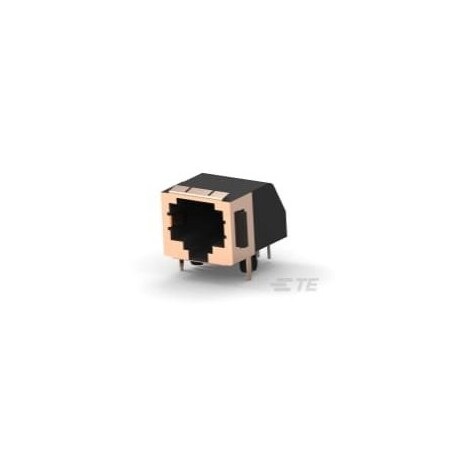

TE CONNECTIVITY / AMP 5555141-1

B00HKI2X96

Modular Connectors / Ethernet Connectors 8P8C SHIELDED

Modular Connectors / Ethernet Connectors 8P8C SHIELDEDzoom

Attributes

Key Value
Agency ApprovalsUL ; CSA
Alternate Mfr Part Numb.5555141-1
AngleRight Angle
Base Product Number5555141
Cable TypeCat 3
CategoryConnectors, Interconnec.
Centerline (Pitch)1.02?mm?[?.04?in?]
Circuit ApplicationSignal
ColorBlack
ConnectorPrinted Circuit Board
Connector Contact Densi.Standard
Connector Height12.57?mm?[?.495?in?]
Connector Mounting TypeBoard Mount, Panel
Connector ProfileLow
Connector TypeJack
Contact Base MaterialPhosphor Bronze
Contact Current Rating ..2, 1.5
Contact FinishGold
Contact Finish Thickness50.0?in (1.27?m)
Contact MaterialPhosphor Bronze
Contact Mating Area Pla.Gold
Contact Mating Area Pla.1.27??m?[?50??in?]
Contact PlatingGold Plated Nickel
Contact Underplating Ma.Nickel
Country of Origin (subj.India
Current Rating1.5 A
DescriptionCONN MOD JACK 8P8C R/A .
Detailed DescriptionJack Modular Connector .
Digi-Key Part NumberA31437-ND
FeaturesBoard Lock, Panel Stops
Grounding OptionsPCB and Panel Ground
Housing ColorBlack
Housing MaterialPolybutylene Terephthal.
Ingress Protection-
KeyedNo
LED ColorDoes Not Contain LED
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.5555141-1
Manufacturer Standard L.13 Weeks
Mating Entry LocationSide
MfrTE Connectivity AMP Con.
ModeSinglemode
Modular Connector StyleJack
Modular JackRJ45
Modular Jack Latch Orie.Standard - Latch Down
Modular JacksRJ Type Jacks & Plugs
Mounting TypeThrough Hole
Number of Contacts8
Number of Loaded Positi.8
Number of Ports1
Number of Positions8
Number of Positions/Con.8p8c (RJ45, Ethernet)
Number of Rows1
Operating Temperature-40?C ~ 85?C
Operating Temperature R.-40 ? 85??C?[?-40 ? 185.
Orientation90? Angle (Right)
PackageTray
Packaging MethodBox & Tray, Package
Packaging Quantity136
Panel Mount FeatureWith
PCB Contact Termination.Tin
PCB Mount OrientationRight Angle
PCB Tail Length3.8?mm?[?.15?in?]
PCB Thickness (Recommen.1.57?mm?[?.062?in?]
Performance CategoryCat 3
Port ConfigurationSingle Port
Port Matrix Configurati.1 x 1
Primary TypeRJ45
Product StatusActive
RatingsCat3
Series-
Shield MaterialCopper Alloy
Shield Plating MaterialTin
ShieldedYes
ShieldingShielded, EMI Finger
Special FeaturesShielded
Status IndicatorNone
Tab DirectionDown
TerminationSolder, Through Hole
Termination Method to P.Through Hole - Solder
TypeModular Jack
UL Flammability RatingUL 94V-0
Voltage Rating150 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com5555141-11.3613119TE Connectivity / AMP Brand1.36 @ 25
Future Electronics86253291.4041281024TE Connectivity1.404 @ 128
TE Connectivity5555141-11.5844912495TE Connectivity (TE)1.58449 @ 25
WaldomTE CONNECTIVITY AMP BRAND 5555141-11.693579TE CONNECTIVITY/AMP BRAND1.69 @ 35
thumbzoomNewark52R42311.9125AMP - TE CONNECTIVITY1.9 @ 25
thumbzoomDigi-Key7695811.985611502TE Connectivity AMP Connectors1.9856 @ 25
thumbzoomTMERJ45GE-AMP2.0511457TE Connectivity2.05 @ 25
RS Delivers137-8903.07441225TE Connectivity3.0744 @ 25
thumbzoomZoroG6010175653.43325Te Connectivity3.43 @ 25
us.rs-online.com700842636.14125TE Connectivity6.14 @ 25
AmazonTPB07KTG8WJR43.281251TE Connectivity / AMP Brand43.28 @ 25
