TE Connectivity / AMP 5650470-5

B00DJUH7IG

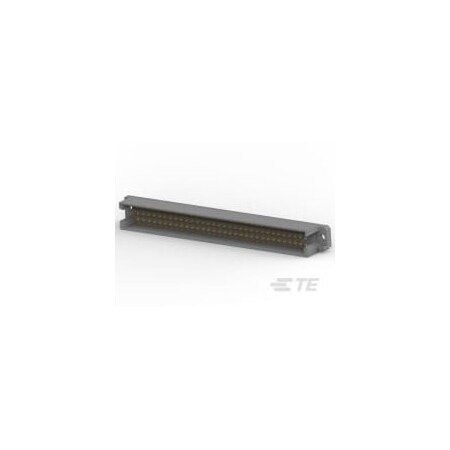

TE CONNECTIVITY / AMP - 5650470-5 - DIN 41612 PCB CONNECTOR, PLUG, 96WAY

TE CONNECTIVITY / AMP - 5650470-5 - DIN 41612 PCB CONNECTOR, PLUG, 96WAYzoom

Attributes

Key Value
Agency ApprovalsCSA ; UL
Alternate Mfr Part Numb.5650470-5
AngleStraight
Base Product Number5650470
Board-to-Board Configur.Vertical
CategoryConnectors, Interconnec.
Centerline (Pitch)2.54?mm?[?.1?in?]
Circuit ApplicationSignal
ColorGray
ConnectorPlug, Printed Circuit B.
Connector Height11.4?mm?[?.45?in?]
Connector Mounting TypeBoard Mount
Connector SystemBoard-to-Board
Connector TypePlug, Male Pins
Contact Base MaterialCopper Alloy
Contact Cross Section.64 x .64?mm?[?.025 x ..
Contact Current Rating .1.5
Contact FinishGold or Gold-Palladium
Contact Finish Thickness-
Contact MaterialCopper Alloy
Contact Mating Area Pla.Gold
Contact Mating Area Pla..76??m?[?30 ? 30??in?]
Contact TypePin
Country of Origin (subj.China
Current Rating (Amps)-
DescriptionCONN DIN PLUG 96POS PCB.
Detailed Description96 Position Din Connect.
Digi-Key Part NumberA32825-ND
DIN LevelII
DIN SizeHalf
Features-
Housing ColorGray
Housing MaterialPolymer, Polymer - GF
Level, Class2
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.5650470-5
Manufacturer Standard L.12 Weeks
Material - InsulationPolymer Thermoplastic, .
Material Flammability R.UL94 V-0
Mating AlignmentWithout
Mating RetentionWithout
MfrTE Connectivity AMP Con.
Mounting Hole Size0.11 in
Mounting TypeThrough Hole
Number of Columns32
Number of Contacts96
Number of Positions96
Number of Positions Loa.All
Number of Rows3
Number of Signal Positi.96
Operating Temperature-55 to +125 ?C, -55?C ~.
Operating Temperature R.-55 ? 105??C?[?-67 ? 22.
Operating Voltage250
Overall Length3.74 "
PackageBulk
Packaging MethodBox
Panel Mount FeatureWithout
PCB Contact Termination.Tin
PCB Contact Termination.2.54 ? 5.08??m?[?100 ? .
PCB Mount AlignmentWithout
PCB Mount OrientationVertical
PCB Mount RetentionWithout
PCB Thickness (Recommen.1.57?mm?[?.062?in?]
Pin Length0.18 "
Pin Spacing0.1 in
Pitch0.100" (2.54mm)
Primary TypeEurocard
Product HeaderEurocard Type R Connect.
Product StatusActive
Row-to-Row Spacing2.54?mm?[?.1?in?]
Rows LoadedA, B, C
SealableNo
SeriesEurocard, Eurocard Seri.
StandardsDIN 41612, IEC 603-2
StyleR
TerminationSolder
Termination Method to P.Through Hole - Solder
Termination Post4.57?mm?[?.18?in?]
TypePCB Plug
UL Flammability RatingUL 94V-0
Voltage Rating250 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com5650470-52.751760TE Connectivity / AMP Brand2.75 @ 600
Avnet5650470-52.8621641TE Connectivity2.862 @ 600
HotendaH7039743.291600TE Connectivity AMP Connectors3.29 @ 600
Future Electronics30481983.456150600TE Connectivity3.456 @ 600
WaldomTE CONNECTIVITY AMP BRAND 5650470-53.5615600TE CONNECTIVITY/AMP BRAND3.56 @ 600
TE Connectivity5650470-54.2070312845TE Connectivity (TE)4.20703 @ 600
thumbzoomNewark42K73484.221710AMP - TE CONNECTIVITY4.22 @ 600
RS Delivers745-5713P5.1481600TE Connectivity5.148 @ 600
thumbzoomZoroG0009530995.222600Te Connectivity5.22 @ 600
thumbzoomDigi-Key10912855.27971212370TE Connectivity AMP Connectors5.279712 @ 600
us.rs-online.com700426805.611600TE Connectivity5.61 @ 600
AmazonTPB00DJUH7IG8.6716002TE Connectivity8.67 @ 600
