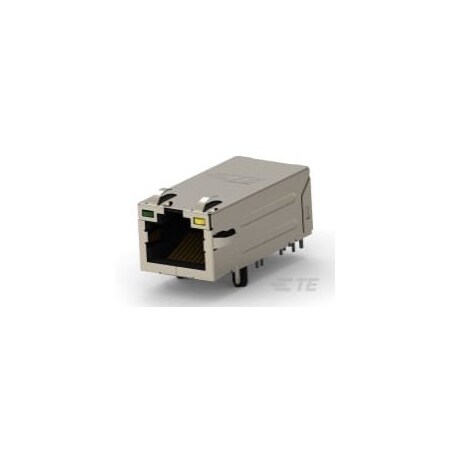

2337992-5, Conn RJ-45 F 8 POS 1.27mm Solder RA Thru-Hole 20 Terminal 1 Port Cat 5e T/R (5 Items)

2337992-5, Conn RJ-45 F 8 POS 1.27mm Solder RA Thru-Hole 20 Terminal 1 Port Cat 5e T/R (5 Items)zoom

Attributes

Key Value
Applications1G Base-T, AutoMDIX, Po.
Base Product Number2337992
Boardlock MaterialLCP
CategoryConnectors, Interconnec.
ConfigurationSingle Port
ConnectorPrinted Circuit Board
Connector Contact Densi.Standard
Connector Height13.6?mm?[?.535?in?]
Connector ProfileStandard
Connector StyleJack
Connector TypeRJ45
ConnectorsConnector
Contact Base MaterialCopper Alloy
Contact FinishGold
Contact Finish Thickness30.0?in (0.76?m)
Contact MaterialCopper Alloy
Contact Mating Area Pla.Gold over Nickel
Contact Mating Area Pla..76??m?[?30??in?]
Contact Underplating Ma.Nickel
Data Rate1000 Mbps, 1000
DescriptionCONN JACK 1PORT 1G BASE.
Detailed Description1 Port RJ45Through Hole.
Digi-Key Part NumberA145018TR-ND - Tape & R.
FeaturesBoard Guide
Finish PlatingMatte
Flammability RatingUL 94V-0
Grounding OptionsPCB and Panel Ground
Height13.6 mm[.535 in]
Height Above Board0.536" (13.61mm)
Housing ColorBlack
Housing MaterialLiquid Crystal Polymer .
Housing Material Temper.260
IndicatorLED
Insulation MaterialLCP
Insulator MaterialLCP
KeyedNo
LED ColorGreen - Yellow
LED Color (Bottom Left)None
LED Color (Bottom Right)None
LED Color (Top Left)Green
LED Color (Top Right)Yellow
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.2337992-5
Manufacturer Standard L.18 Weeks
Mating Entry LocationSide
MfrTE Connectivity AMP Con.
Modular Connector StyleJack
Modular JackRJ45 with Integrated Ma.
Modular Jack Latch Orie.Inverted - Latch Up
Modular JacksRJ Type Jacks & Plugs
Mounting TypeThrough Hole
Number of Cores per Jack8
Number of Loaded Positi.8
Number of Panel Ground .4
Number of PCB Ground Ta.2
Number of Ports1
Number of Positions8
Number of Rows1
Operating Temperature-40?C ~ 85?C
Operating Temperature R.-40 ? 85??C?[?-40 ? 185.
OrientationRight Angle, 90? Angle .
PackageTape & Reel (TR)
Package TypeReel
Packaging MethodReel
Packaging Quantity80
Packaging Reel Diameter33
Panel Ground LocationTop and Side
PCB Contact Termination.Tin
PCB Ground Tab Location-3.05?mm?[?-.12?in?]
PCB Mount OrientationRight Angle
PCB Mount Retention TypeBoardlock
PCB Termination Area Pl.Matte
Performance CategoryCat 5e
Plating MaterialNickel
Port ConfigurationSingle Port
Port Matrix Configurati.1 x 1
Product StatusActive
SealableNo
Series-
Shield MaterialBrass
Shield Panel Ground TypeShield has bottom panel.
Shield Plating FinishMatte
Shield Plating MaterialNickel
ShieldedYes
ShieldingShielded, EMI Finger
Status IndicatorLED
Tab DirectionUp
Temperature Range-40 to 85 C
TerminationSolder
Termination Method to P.Through Hole - Solder
UL Flammability RatingUL 94V-0
