Mitutoyo 293-341-30

B07Z8GDKVR

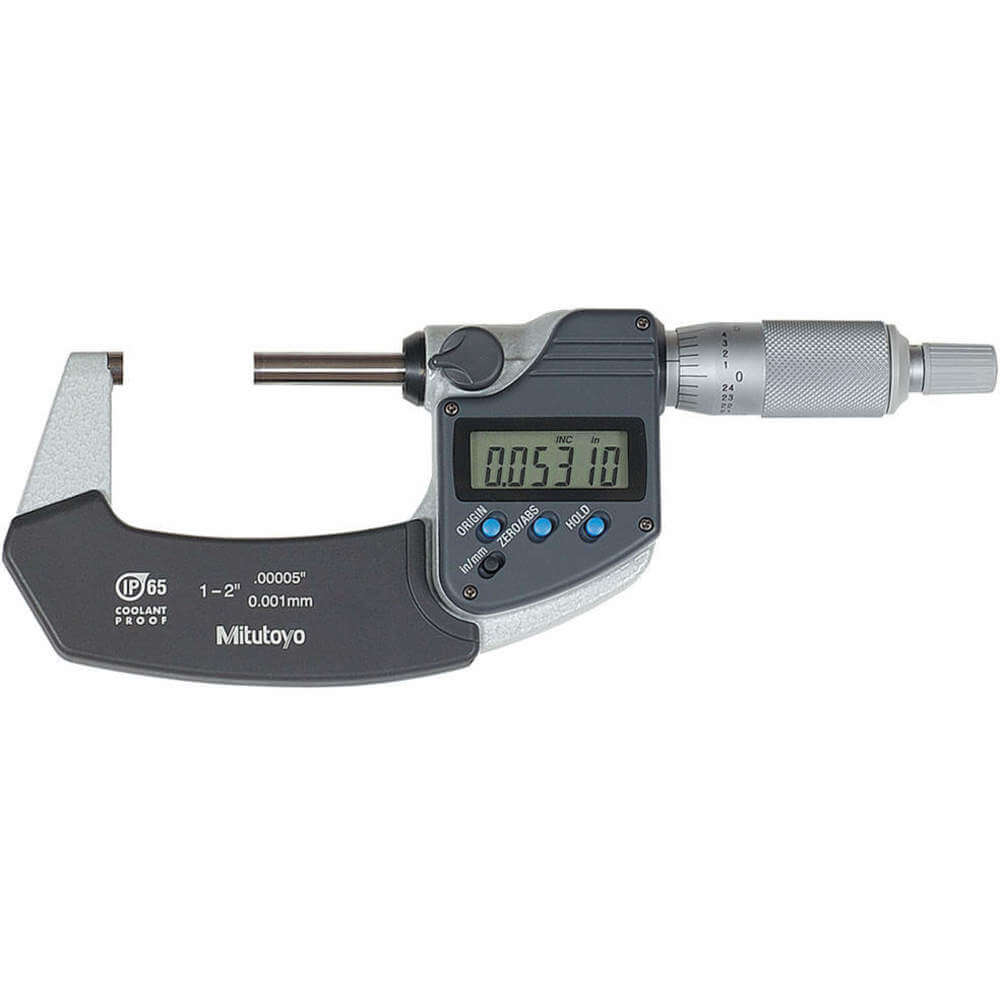

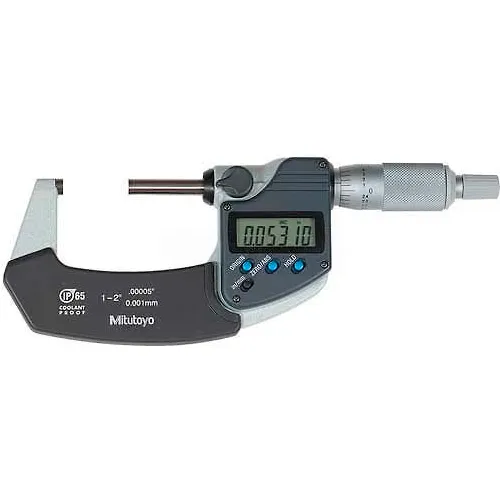

Mitutoyo 293-341-30 Digimatic Outside Micrometer, 1-2"/25.4-50.8 mm,0.00005"/0.001 mm with Standard Ratchet Stop (5)

Mitutoyo 293-341-30 Digimatic Outside Micrometer, 1-2"/25.4-50.8 mm,0.00005"/0.001 mm with Standard Ratchet Stop (5)zoom

Attributes

Key Value
Accuracy?.0001", ?.00005", +/-0.
accuracy.00005"
Accuracy (in)+/-.00005 in
Accuracy Tolerance?0.0001
AnvilFlat
Anvil MaterialCarbide
AvailabilityCall for Availability
Battery SizeSR44
Battery TypeSR44
BrandMitutoyo
Case materialPlastic case
Case part number04MAA214
CategoryTools
ClutchRatchet stop
CommentWith standard
Contact point diameter .6.35 mm
Contact point flatness .0.000012 in
Coolant ResistantYes
Country of OriginJapan
DescriptionsRatchet Stop with Stand.
Dimension TypeInch/Metric
Display Resolution0.00005 in
Display typeLCD
Display TypeLCD
FeaturesIP65 Protection Level, .
FinishEnamel
Flatness0.3?m / 0.000012", .3?m.
gtinupc603908585886
Included CertificationCertificate of Inspecti.
Includes(1) Battery (SR44), (1).
Includes BatteryYes
Individual or setIndividual
IP ratingIP65
IP RatingIP65
ItemCoolant-proof Micrometer
Item Weight1.00 lbs per EA
Long Form Calibration C.No
ManufacturerMitutoyo America Corpor.
Mass330g
Maximum Measurement50.8, 2.000
Measurement TypeInch/Metric
Measuring FacesCarbide Tipped
Measuring Force5-10N
Measuring range1 to 2 in
Mechanical or digitalDigimatic
MfrMitutoyo
Mfr. Model #293-341-30
Micrometer TypeElectronic
Minimum Measurement1.000, 25.4
Minimum Measurement - I.1 in
Minimum Measurement - mm25.4 mm
ModelStandard Micrometer
Model Number293-341-30
Operation TypeDigital
OutputNo, N
PackageBox
Parallelism0.000040" or less / 1?m.
Parrallelism (in)0.00004 in
Power sourceSR44 battery
Primary (OD) contact po.Hardened steel
Primary measuring range.1 in
Primary measuring range.25.4 mm
Primary measuring range.2 in
Primary measuring range.50.8 mm
Product StatusActive
Product typeMicrometer
Range1 to 2"/25.4 to 50.8mm,.
Range stepNA
Ratchet/ThimbleRatchet stop
Resolution.00005"/.001mm, 0.00005.
Resolution or graduatio.0.00005 in
Resolution or graduatio.0.001 mm
Series-, 293
Ship Weight (lbs.)1
Shipping height (in)1.5
Shipping length (in)9
Shipping weight (lbs)1.3
SPC OutputYes, No
Special OfferNew
SpindleFlat
Spindle Diameter6.35 mm
Spindle diameter6.35 mm
Spindle MaterialCarbide Tipped
Spindle typeNon-rotating
Spinning width (in)5
ThimbleRatchet
Thimble diameter18 mm
Thimble typeRatchet stop
Thimble TypeRatchet stop
Third drill downNo SPC output
Tool TypeMicrometer
TypeMicrometers
typeDigital
UnitEA
UnitsMetric, Inch
unspsc41111621
US harmonized tariff sc.9017.30.4000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNational Supply Network74999343197.827514Mitutoyo197.8275 @ 4
AmazonTPB00KQML20O207.0142Mitutoyo America Corporation207.0 @ 4
thumbzoomMRO Supply6226227213.3614Mitutoyo1.3213.36 @ 4
thumbzoomunbeatablesale.comGLB50047213.714MITUTOYO AMERICA213.7 @ 4
thumbzoomGlobal IndustrialWBB611787219.951415Mitutoyo219.95 @ 4
thumbzoomZoroG3691581223.99128Mitutoyo1.32223.99 @ 4
thumbzoomprimebuy.com293-341-30236.514Mitutoyo236.5 @ 4
thumbzoomMisumi USA293-341-30237.191442MITUTOYO237.19 @ 4
thumbzoomtoolschest.comGLB50047242.614Mitutoyo America242.6 @ 4
Digi-Key14019125255.9214Mitutoyo255.92 @ 4
thumbzoomgrovesindustrial.comMTI 293-341-30260.2714Mitutoyo1.0260.27 @ 4
thumbzoomsustainablesupply.comC1288400261.4614Mitutoyo1.32261.46 @ 4
steinerelectric.com809761267.8614Mitutoyo267.86 @ 4
tmttoolbox.com293-341-30269.514mitutoyo269.5 @ 4
reidsupply.comMI-29334130272.2515Mitutoyo272.25 @ 4
thumbzoomNewark45X8657286.014MITUTOYO286.0 @ 4
thumbzoomKBC Tools1-808-293341286.014MITUTOYO1.0286.0 @ 4
thumbzoomjensentools.com10139443286.014Mitutoyo286.0 @ 4
thumbzoomRaptor SuppliesAE9YCT355.58546414MITUTOYO355.585464 @ 4
thumbzoombscsource.com29334130356.2914Mitutoyo356.29 @ 4
