- mpnC23426
- brandname: Cle-Line
- manufacturername: Cle-Line

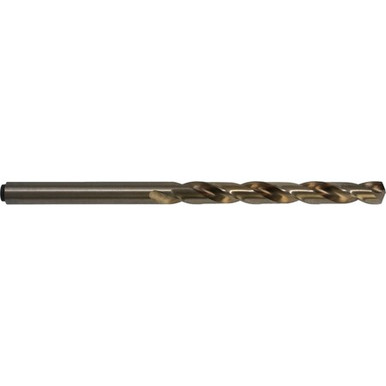

Cle-Line C23426 Cobalt Heavy Duty Jobber Length Drill, Cobalt, Gold Oxide Finish, Straight Shank, 135-Degree Split Point, Wire Size 8 (Pack of 12)
- Brand: Cle-line
- PartNumber: C23426
- Model: C23426
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Brand | Cle-Line |
| Coolant Fed | Non-Coolant Through |
| Current Stock | 97 |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M42 HSS-Co 8% |
| Decimal Equivalent | 0.1990 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.1990" |
| Diameter (Wire/Let) | 8 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Straw/Bronze |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | #8 |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0007 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0412 in |
| Drill Size - Decimal In. | 0.199 in |
| Drill Size - Wire | #8 |
| Drill Size System | Wire |
| Drill Style | Jobber Drill |
| Finish | Straw Oxide |
| Flute Length | 2-7/16 in, 2 7/16 in, 2. |
| Flute Length (Metric) | 61.91mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| International Shipping | No |
| Item | Jobber Length Drill Bit |
| Lead Time | Expected to ship in 1-2. |
| Material | M42 HSS-Co 8%, Cobalt, . |
| Maximum Drilling Depth | 1 13/16 in |
| Mpn | C23426 |
| Number of Flutes | 2 |
| Overall Length | 3.6250", 3 5/8 in, 3-5/. |
| Overall Length (Metric) | 92.07mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split |
| Series | 1802 |
| Shank Configuration | Straight |
| Shank Dia. | 3/16 in |
| Shank Length | 1 3/16 in, 1.1875" |
| Shank Length (Metric) | 30.16mm |
| Shank Size | 0.1990", 0.199 in Dia x. |
| Shank Size (Metric) | 5.05mm |
| Shank Type | Straight |
| SKU | ZO-G6375657 |
| Style | 1802 |
| SubCategory | Machining |
| Surface Condition | Straw |
| Through Coolant (Yes/No) | No |
| Tool Size | #8 |
| Type | Heavy Duty |
| UPC | 697334234265 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2543610 | 2.92 | 12 | 12 | | Cle-Line | | 2.92 @ 12 |
 | Megadepot | C23426 | 3.08 | 1 | 12 | | Cle-Line | | 3.08 @ 12 |
 | heavydutydepot.com | C23426 | 3.08 | 33 | 12 | | Cle-Line | | 3.08 @ 33 |
 | usmegastore.com | C23426 | 3.1 | 1 | 12 | | Cle-Line | | 3.1 @ 12 |
 | Zoro | G6375657 | 3.45 | 1 | 184 | | Cle-Line | 0.01 | 3.45 @ 12 |
 | MRO Supply | 6124851 | 3.48 | 15 | 12 | | Cle-Line | | 3.48 @ 15 |
 | sustainablesupply.com | C2765424 | 4.24 | 1 | 12 | | Cle-Line | 0.02 | 4.24 @ 12 |
 | National Supply Network | 57624983 | 6.3725 | 12 | 12 | | Cle-Line | | 6.3725 @ 12 |
 | simsupply.com | ZO-G6375657 | 10.17 | 1 | 97 | | Cle-Line | | 10.17 @ 12 |
| AmazonSC | B00J9F0OR6 | 45.96 | 1 | 12 | | Cle-line | | 45.96 @ 12 |
