Marathon Electric GT1049

mpnGT1049
brandname: Marathon Electric
manufacturername: Marathon Electric

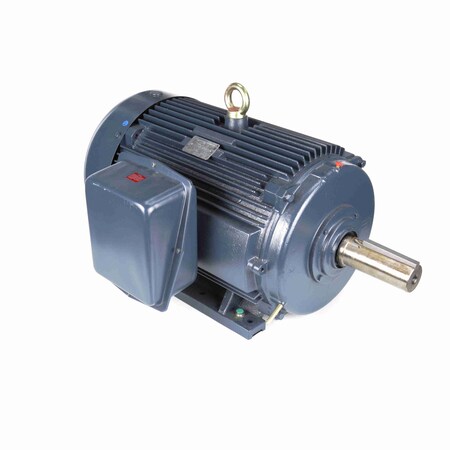

Marathon GT1049 444T Frame 444TTFC6036 TEFC General Purpose Motor, 3 Phase, Rigid Base, Ball Bearing, 125 hp, 1800 RPM, 1 Speed, 460 VAC

Marathon GT1049 444T Frame 444TTFC6036 TEFC General Purpose Motor, 3 Phase, Rigid Base, Ball Bearing, 125 hp, 1800 RPM, 1 Speed, 460 VAC

zoom

Brand: Marathon Electric
PartNumber: GT1049
Model: MGT1049
PackageQuantity: 1
Binding: Misc.
Manufacturer: Marathon Electric
Label: Marathon Electric

Attributes

Key	Value
CC Number	CC003A
Country of Origin (subj.	United States
Duty Cycle	Continuous
Family Series	Marathon Electric Misce.
Frame	444T
Full Load Amps	140.0
Green Certification or .	NEMA Premium(R) Rated
Gross Weight	0 lbs
HP	125
Hz	60
Includes	Conduit Box
Ins. Class	F
Inverter Rated	Yes
Item	General Purpose Motor
Item Number	GT1049
Length Less Shaft	38 3/16 in
Manufacturer	Marathon Electric
Manufacturer Part Number	444TTFC6036
Manufacturers Warranty .	1 yr
Max. Ambient Temp.	40 Degrees C
Motor Application	General Application
Motor Bearings	Ball
Motor Design	3-Phase
Motor Efficiency Group	NEMA Premium Efficient
Motor Enclosure Design	Totally Enclosed Fan-Co.
Motor Frame Material	Cast Iron
Motor Mounting Position	Horizontal
Motor Mounting Type	Rigid Base
Motor Service Factor	1.15
Motor Shaft Design	Keyed
Motor Shaft Rotation	CW/CCW
Motor Thermal Protection	None
Nameplate RPM	1,790
NEMA Design	B
Net Weight	1981 lbs
No. of Speeds	1
Nominal Efficiency	95.4 %
Overall Length	46 11/16 in
Part Winding Start Capa.	Yes
Phase	Three
Shaft Dia.	3 3/8 in
Shaft Length	8 1/2 in
Standards	UL Recognized (E49747),.
Usable @ 200V	No
Usable @ 208V	No
Voltage	460V AC
Weight	1,588 lb

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	midwestapplianceparts.com	GT1049-MT-P	8705.24	1	In Stock		Marathon		8705.24 @ 1
	Galco	GT1049-MARA	9857.5	1	In Stock		Marathon Electric	1981.0	9857.5 @ 1
	Zoro	G702060873	11054.0	1	In Stock	10	Marathon		11054.0 @ 1
	industrialmotors.com	GT1049	11829.0	1	14		MARATHON ELECTRIC		11829.0 @ 1
	grainger.ca	AOSGT1049	13354.5981421	1	In Stock		MARATHON MOTORS	1981.0	13354.5981421 @ 1
