- mpn2Z934
- brandname: Dayton
- manufacturername: Dayton

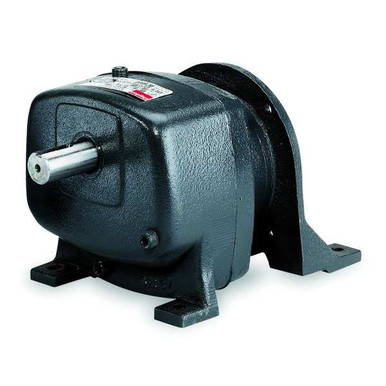

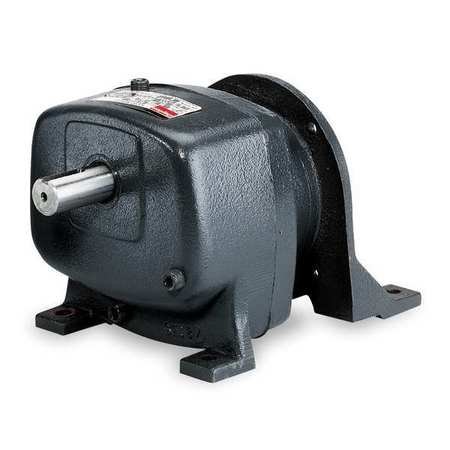

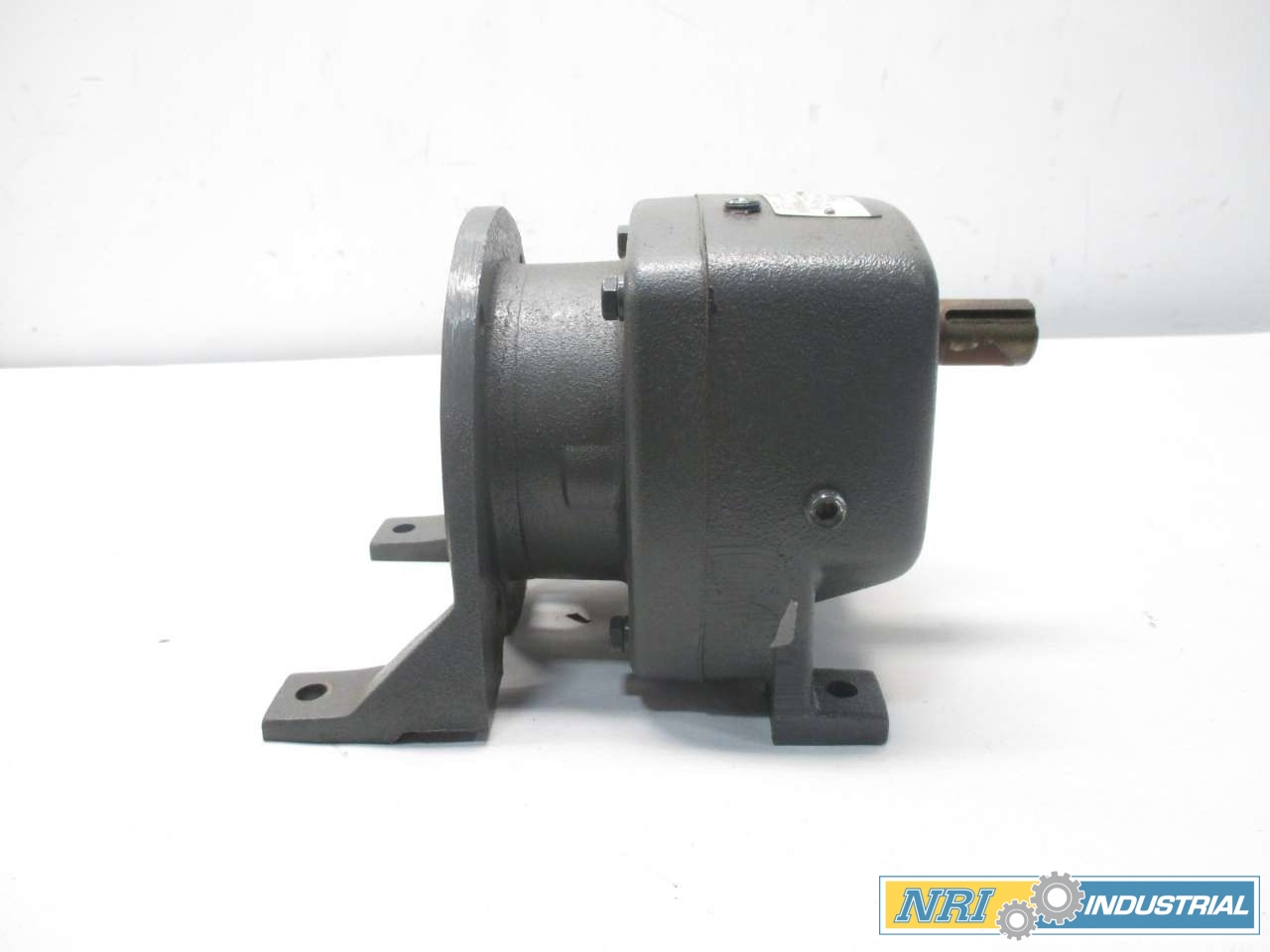

Speed Reducer,C-Face,56C,29:1
- Brand: Dayton
- PartNumber: 2Z934
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Dayton
- Label: Dayton
Attributes
| Key | Value |
|---|
| Bearings | Ball |
| Bore Dia. | 5/8" |
| Brand | Dayton |
| Current Stock | 47 |
| Dimension U | 1 in |
| Duty | Standard |
| Finish | Powdered Epoxy Paint |
| Frame | 56C |
| Gear Material | Hardened and Ground Ste. |
| Gear Type | Helical |
| Gearing | Helical and Spur |
| Housing | Cast Iron |
| Housing Material | Cast Iron |
| Input RPM | 1725, 1750 rpm, 1750 |
| International Shipping | No |
| Item | Speed Reducer |
| Lead Time | Expected to ship in 1-2. |
| Lubrication | Kluber Food Grade, Klub. |
| Max. Input HP | 0.5 hp, 0.5, 1/2 |
| Max. Output Torque | 478 in.-lb. |
| Max. Torque (In.-Lbs.) | 478 |
| Mounting | Horizontal |
| Mpn | 2Z934 |
| NEMA/IEC Frame | 56C |
| Nominal Output RPM | 60, 60 RPM |
| Nominal Ratio | 29:1 |
| Number of Stages | 1 |
| Oil Seal | Double Lip |
| Output Shaft Dia. | 1 in |
| Output Shaft Dia. (In.) | 1 |
| Output Shaft Diameter | 1 in |
| Output Shaft Height | 4 7/8 in |
| Output Shaft Height (In. | 4.88 |
| Output Torque @ 1/2 HP | 478 in-lbs |
| Output Torque @ 1/2 HP . | 478 |
| Output Torque @ 1/3 HP | 318 in-lb, 318 in-lbs |
| Output Torque @ 1/3 HP . | 318 |
| Output Torque @ 1/4 HP | 235 in-lb |
| Output Torque @ 1/4 HP . | 235 |
| Output Torque @ 1/40 HP | 3,600 in-lbs |
| Output Torque @ 3/4 HP | 478 in.-lb., 478 in-lbs |
| Overhung Load | 660 lb, 660 lb. |
| Overhung Load (Lb.) | 660 |
| Pinion | Hardened Steel |
| Pinion Material | Hardened Steel |
| Prop 65 | WARNING: Cancer and Rep. |
| Reducer Model No. | 84380 |
| Rotation | Forward/Reverse |
| Seal Type | Double Lip |
| Shaft Orientation | Parallel Inline, Parall. |
| Ship Weight | 32 lbs. |
| Single/Double Output/Un. | Single Output |
| SKU | ZO-G0789004 |
| Solid/Hollow Output Sha. | Solid |
| Speed Reducer Type | C-Face |
| Standards | AGMA |
| SubCategory | Power Transmission |
| Type | C-Face |
| UPC | 190735241370 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | NRI Industrial | D436282 | 518.1 | 1 | In Stock | | DAYTON | | 518.1 @ 1 |
| grainger.ca | DTN2Z934 | 553.99320368 | 1 | In Stock | | DAYTON | 31.55 | 553.99320368 @ 1 |
 | Zoro | G0789004 | 572.99 | 1 | 102 | | Dayton | 31.55 | 572.99 @ 1 |
 | simsupply.com | ZO-G0789004 | 642.65 | 1 | 47 | | Dayton | | 642.65 @ 1 |
| AmazonTP | B000LDE1MO | 905.67 | 1 | In Stock | 3 | Dayton | | 905.67 @ 1 |
 | sustainablesupply.com | C2777171 | 933.83 | 1 | In Stock | | Dayton | 31.55 | 933.83 @ 1 |
 | Raptor Supplies | AC4DWG | 940.540536 | 1 | In Stock | | DAYTON | | 940.540536 @ 1 |
| emotorpro.com | 2Z934 | 1324.8 | 1 | In Stock | | Dayton | 32.0 | 1324.8 @ 1 |
