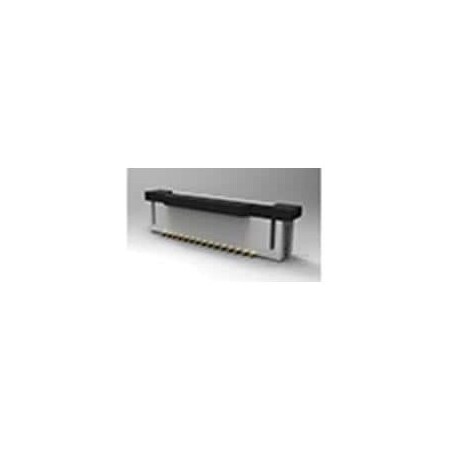

TE Connectivity 2-1734248-4

mpn2-1734248-4
brandname: TE Connectivity AMP Connectors
manufacturername: TE Connectivity AMP Connectors

TE Connectivity Part Number 2-1734248-4

Brand: TE Connectivity
PartNumber: 2-1734248-4
Manufacturer: TE Connectivity
Label: TE Connectivity

Attributes

Key	Value
Actuator Color	Black
Actuator Material	Polyamide (PA9T), Nylon.
Base Product Number	1734248
Cable End Type	Tapered
Category	Connectors, Interconnec.
Centerline (Pitch)	1?mm?[?.039?in?]
Circuit Application	Signal
Connector	Flexible Printed Circui.
Connector Height	7.7?mm?[?.303?in?]
Connector Mounting Type	Board Mount
Connector System	Flex-to-Board
Connector Width	4.6?mm?[?.181?in?]
Connector/Contact Type	Contacts, Vertical - 1 .
Contact Base Material	Phosphor Bronze
Contact Current Rating .	1
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Phosphor Bronze
Contact Mating Area Pla.	Gold
Contact Mating Area Pla.	.025??m?[?1??in?]
Contact Mating Location	Top
Contact Type	Socket
Country of Origin (subj.	United States
Current Rating (Amps)	1A
Description	CONN FPC VERT 24POS 1MM.
Detailed Description	24 Position FPC Connect.
Digi-Key Part Number	A100270TR-ND - Tape & R.
Features	Zero Insertion Force (Z.
FFC, FCB Thickness	0.30mm
Flat Flex Type	FPC
Flex Cable Thickness	.3?mm?[?.012?in?]
FPC Actuator Type	Stuffer (Plunger Style)
Height Above Board	0.217" (5.50mm), 0.217".
Housing Color	Black
Housing Material	Polyamide (PA9T), Nylon.
Insertion Force Type	Zero Insertion Force (Z.
Locking Feature	Slide Lock
Manufacturer	TE Connectivity AMP Con.
Manufacturer Product Nu.	2-1734248-4
Manufacturer Standard L.	15 Weeks
Material Flammability R.	UL94 V-0
Mating Alignment	With
Mating Cycles	20
Mfr	TE Connectivity AMP Con.
Mounting Type	Surface Mount
Number of Positions	24
Number of Rows	1
Operating Temperature	-20?C ~ 85?C
Operating Temperature R.	-20 ? 85??C?[?-4 ? 185?.
Operating Voltage	125
Package	Tape & Reel (TR)
Packaging Method	Tape
Packaging Quantity	1000
Part Status	Active
PCB Connector Assembly .	PCB Mount Receptacle
PCB Contact Termination.	Gold
PCB Mount Alignment	Without
PCB Mount Orientation	Vertical
PCB Mount Retention	With
Pitch	0.039"" (1.00mm), 0.039.
Product Status	Active
Sealable	No
Series	-
Termination	Solder
Termination Method to P.	Surface Mount
Voltage Rating	125V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Preferred Tier
Waldom	TE CONNECTIVITY AMP BRAND 2-1734248-4	0.92	1000	3392		TE CONNECTIVITY/AMP BRAND	0.92 @ 1000
TE Connectivity	2-1734248-4	1.32687	1	2742		TE Connectivity (TE)	1.32687 @ 5
Zoro	G501041363	1.37	6000	5		Te Connectivity	1.37 @ 6000
Newark	21R8491	1.5	6000	5		TE CONNECTIVITY	1.5 @ 6000
Digi-Key	2180543	2.748	1	3273		TE Connectivity AMP Connectors	2.748 @ 5
Onlinecomponents.com	2-1734248-4	5.45	1	392		TE Connectivity / AMP Brand	5.45 @ 5
AmazonTP	B07KWJ8Q4C	62.28	1	5	1	TE Connectivity / AMP Brand	62.28 @ 5
