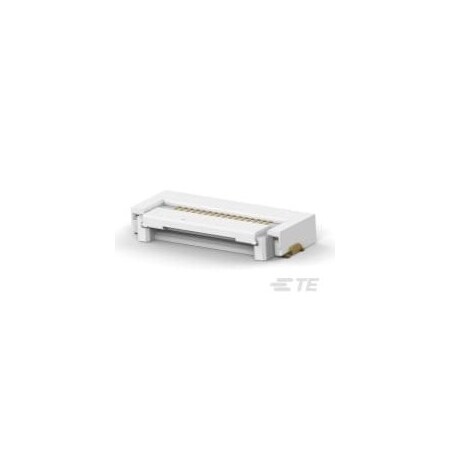

TE Raychem 1-1775333-6

mpn1-1775333-6
brandname: TE Connectivity AMP Connectors
manufacturername: TE Connectivity AMP Connectors

TE Raychem Connector

Brand: TE Raychem
PartNumber: 1-1775333-6
Manufacturer: TE Raychem
Label: TE Raychem

Attributes

Key	Value
Actuator Color	Natural
Actuator Material	Liquid Crystal Polymer .
Actuator Type	Front Flip (Rear Hinge)
Application	Signal
Base Product Number	1775333
Cable End Type	Straight
Category	Connectors, Interconnec.
Centerline (Pitch)&thin.	.5?mm?[?.0197?in?]
Color	Natural
Connection Material	Phosphor Bronze
Connector & Contact Ter.	Flexible Printed Circui.
Connector Mounting Type	Board Mount
Connector Style	Receptacle
Connector System	Flex-to-Board
Connector Terminates To	Flexible Printed Circuit
Connector Type	Connector Assembly, Rec.
Connector/Contact Type	Contacts, Bottom
Contact Base Material	Phosphor Bronze
Contact Current Rating .	.5
Contact Design	Single Beam
Contact Finish	Gold Plated, Gold
Contact Finish Thickness	50.0?in (1.27?m)
Contact Layout	Inline
Contact Material	Phosphor Bronze
Contact Mating Area Pla.	Gold
Contact Mating Area Pla.	.025??m?[?1??in?]
Contact Mating Location	Bottom
Contact Plating Thickne.	0.025 ?m
Contact Termination Are.	Gold
Contact Termination Are.	.025??m?[?1??in?]
Contact Transmits (Typi.	Signal (Data)
Contact Type	Socket
Current Rating	0.5 A
Current Rating (Amps)	0.5A
Description	CONN FPC BOTTOM 16POS 0.
Detailed Description	16 Position FPC Connect.
Digi-Key Part Number	A120285TR-ND - Tape & R.
Features	Circuit Identification .
FFC, FCB Thickness	0.30mm
Flat Flex Type	FPC
Height	2 mm
Height Above Board	0.081" (2.05mm)
Height?:</span> .	2?mm?[?.0787?in?]
Hole Center to Center	0.5 mm
Housing Color	Natural
Housing Material	LCP (Liquid Crystal Pol.
Insertion Force	ZIF
Item	Connector
Length	0.504 in
Locking Feature	Flip Lock
Manufacturer	TE Connectivity AMP Con.
Manufacturer Product Nu.	1-1775333-6
Material	Liquid Crystal Polymer
Material Flammability R.	UL94 V-0
Mating Alignment	With
Mating Cycles	-
Max. Temp.	85?C
Max. Voltage	250V AC
Mfr	TE Connectivity AMP Con.
Mounting Type	Surface Mount, Right An.
Number of Contacts	16
Number of Positions	16
Number of Rows	1
Operating Temperature	-20?C ~ 85?C
Operating Voltage	250
Package	Tape & Reel (TR)
Package Quantity	1
PCB Mount Alignment	Without
PCB Mount Orientation	Right Angle
PCB Mount Retention	With
Pitch	0.020" (0.50mm)
Product Status	Obsolete
Product Type	Connector
Sealable	No
Series	-, FPC
Shielded	No
Terminal Finish	Gold Plated
Terminal Type	Surface Mount
Termination	Solder
Termination Method to P.	Surface Mount
Voltage Rating	250V
Width	0.2461 in
Width?:</span> .	6.25?mm?[?.2461?in?]
Wire/Cable Type	FPC/FFC

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Waldom	TE CONNECTIVITY AMP BRAND 1-1775333-6	0.37	2000	37442	TE CONNECTIVITY/AMP BRAND	0.37 @ 2000
TE Connectivity	1-1775333-6	0.536	1	186	TE Connectivity (TE)	0.536 @ 1
Digi-Key	5021878	1.176	1	6204	TE Connectivity AMP Connectors	1.176 @ 1
Zoro	G705783052	90.0	1	In Stock	Te Connectivity	90.0 @ 1
