Burndy K2C25

B00CBL67W6

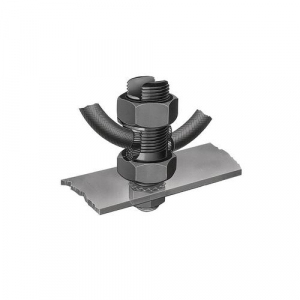

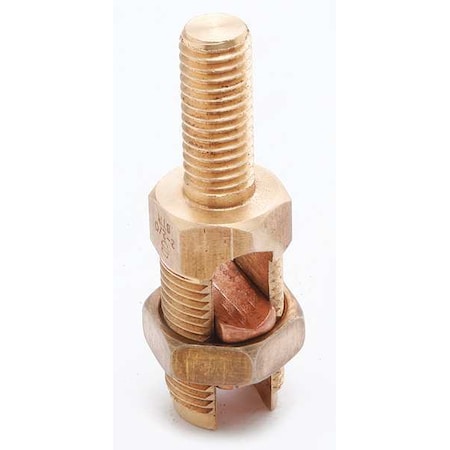

Burndy K2C25 Servit Post Mechanical Grounding Connector, 15/16" Nut Size, 9/16" Stud Length, for 1 or 2 Conductors

Burndy K2C25 Servit Post Mechanical Grounding Connector, 15/16" Nut Size, 9/16" Stud Length, for 1 or 2 Conductorszoom

Attributes

Key Value
ApplicationFor Direct Burial Appli.
ApprovalsUL
Certification - UL List.Yes
Conductor - Copper Soli.2 AWG;1 AWG;1/0 AWG;2/0.
Conductor - Copper Soli.2 AWG-2/0 AWG
Conductor - Copper Str .2 AWG;1 AWG;1/0 AWG
Conductor - Copper Str .1/0 AWG - 2 AWG
Conductor Size2 to 1/0 AWG STR
Conductor Size Range2-2/0 AWG
Conductor TypeRun
Connector MaterialLeaded Bronze alloy
Connector TypeMechanical
Country of OriginUS - United States
Dimension - B Length fr.9/16 in
Dimension - B Length in.0.53 in
Dimension - Body Width .0.75 in
Dimension - Bolt Size f.44928
Dimension - D inch0.75 in
Dimension - Height frac.39448
Dimension - Height inch1.56 in
Dimension - L Length Ov.62 mm
Dimension - Length Over.2.44 in
Dimension - Nut Width i.0.93 in
Dimension - P inch0.39 in
Dimension - Threads per.13
Dimension - Width inch40 mm
Direct BurialYes
ECCNEAR99
Family SeriesBurndy Grounding
For Use WithBusbar, Steel Structure.
Gross Weight0.0131 lbs
Grounding Wire Size2 to 1/0 AWG SOL, 2 to .
Industry Standard(s)UL467
Installation Torque480 in-lb
ItemGrounding Split Bolt Co.
Item - Grounding Connec.Grounding Split Bolt Co.
Item NumberK2C25
Length - Grounding Stud9/16 in
ManufacturerBurndy
Manufacturer Part NumberK2C25
MaterialBronze
Material - Grounding Co.Leaded Bronze alloy
Material of ConstructionLeaded Bronze alloy
Max Conductor Size2/0 AWG
Min Conductor Size2 AWG
Net Weight0 lbs
Number of Conductors2
Number of Wires - Groun.1
Overall Length1, 2 7/16 in
Overall Width3/4 in
Physical Attribute - Nu.2
Plating TypeUnplated
RoHSYes
SeriesK2C, KC
StandardsUL Listed, UL Listed-Di.
Standards - Industry St.UL467
Stud Installation Torqu.480 LBS/in
Stud Length9/16"
Stud Size1/2-13
Thread Size1/2"-13
Thread Size - Grounding.1/2 in 13
TypeKC and K2C Series
Type - Grounding Connec.Mechanical
UL ListedYes
UNSPSC39121408
Wire Size - Grounding2 to 1/0 AWG Stranded, .

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomKelly HayesK2C2551.41174Burndy51.41 @ 1
thumbzoomZoroG469783165.55154Burndy0.265.55 @ 1
thumbzoomusmegastore.comK2C2571.551In StockBurndy71.55 @ 1
Graybar8804755876.0481In StockBurndy76.048 @ 1
thumbzoomgordonelectricsupply.comK2C2593.231In StockBURNDY93.23 @ 1
grainger.caWWG22C072100.219292481In StockBURNDY0.2100.21929248 @ 1
thumbzoomGalcoK2C25-BURN111.941In StockBurndy0.0131111.94 @ 1
thumbzoomRaptor SuppliesAB6QZM151.43444551In StockBURNDY151.4344455 @ 1
kirbyrisk.com1929064166.571In StockBurndy166.57 @ 1
