TE Connectivity / AMP 42K7513

B00DJUIVAY

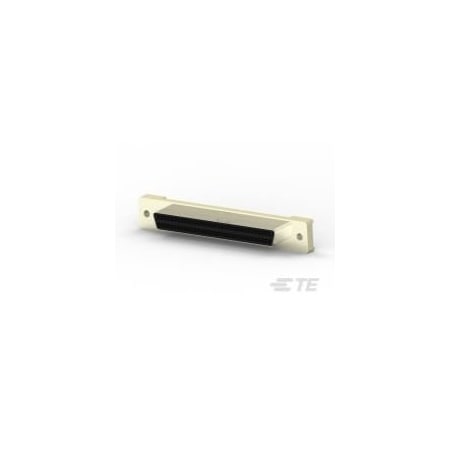

TE CONNECTIVITY/AMP 5749070-7 WIRE-BOARD CONNECTOR, RCPT 68POS 1.27MM

TE CONNECTIVITY/AMP 5749070-7 WIRE-BOARD CONNECTOR, RCPT 68POS 1.27MMzoom

Attributes

Key Value
Alternate Mfr Part Numb.5749070-7
AngleStraight
Backset Spacing-
Base Product Number5749070
CategoryConnectors, Interconnec.
Centerline (Pitch)1.27?mm?[?.05?in?]
Circuit ApplicationSignal
ColorBlack
ConnectorPrinted Circuit Board
Connector Mounting TypeBoard Mount
Connector StyleReceptacle, D-Type
Connector SystemCable-to-Board
Connector TypeReceptacle, Female Sock.
Contact Base MaterialPhosphor Bronze
Contact Current Rating .1
Contact FinishGold
Contact Finish Thickness-
Contact Form-
Contact MaterialPhosphor Bronze
Contact PlatingGold
Contact TypeSignal
Country of Origin (subj.China
Current Rating (Amps)1A
DescriptionCONN D-TYPE RCPT 68POS .
Detailed Description68 Position D-Type Rece.
Dielectric MaterialThermoplastic
Digi-Key Part NumberA31822-ND
FeaturesShielded
Flange FeatureHousing/Shell (4-40)
Housing MaterialThermoplatic
Ingress Protection-
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.5749070-7
Manufacturer Standard L.4 Weeks
Material Flammability R.UL94 V-0
Mating Connector LockWithout
Mating Connector Lock T.Screwlocks
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Contacts68
Number of Positions68, 50
Number of Rows2, 4
Operating Temperature-55?C ~ 105?C
Operating Temperature R.-55 ? 105??C?[?-67 ? 22.
PackageTube
PCB Contact Termination.Tin
PCB Mount AlignmentWithout
PCB Mount OrientationVertical
PCB Mount RetentionWith
PCB Mount Retention TypeMounting Hole
PCB Mounting StyleThrough Hole - Solder
Primary TypeD-Sub
Product StatusActive
ProfileStandard
Row-to-Row Spacing.1 in, 2.54 mm
SealableNo
SeriesIII Series, AMPLIMITE ..
Shell Material, FinishSteel, Nickel Plated
Shell Size, Connector L.0.050 Pitch x 0.100 Row.
Shell TypeFull Metal Shell
TerminationSolder, Through Hole
Termination Method to P.Through Hole - Solder
TypePCB Socket
Voltage Rating30V
Wire Gauge-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Future Electronics37048149.06504In StockTE Connectivity9.06 @ 504
Onlinecomponents.com5749070-79.141801TE Connectivity / AMP Brand9.14 @ 1
TE Connectivity5749070-711.412211423TE Connectivity (TE)11.4122 @ 1
thumbzoomNewark42K751316.6198AMP - TE CONNECTIVITY16.6 @ 1
us.rs-online.com7008566317.4812TE Connectivity17.48 @ 1
thumbzoomZoroG60104349618.158In StockTe Connectivity18.15 @ 8
thumbzoomDigi-Key80717118.4441612TE Connectivity AMP Connectors18.444 @ 1
AmazonSCB00DJUIVAY21.941In StockTE Connectivity / AMP21.94 @ 1
RS Delivers680-7740P23.1361In StockTE Connectivity23.136 @ 1
AmazonTPB083N6LKFL143.991In Stock1TE Connectivity / AMP143.99 @ 1
