TE Connectivity 2337994-4

B082BF1XJ3

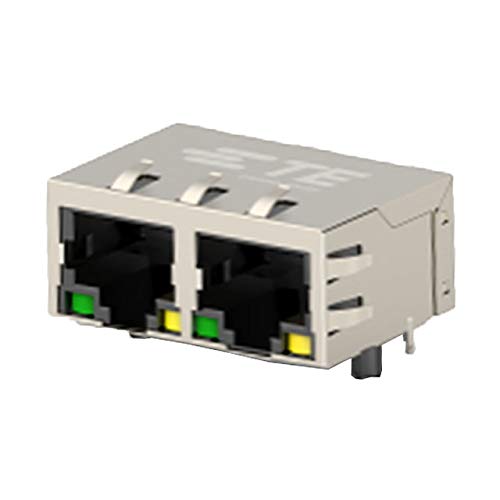

2337994-4, Conn RJ-45/RJ-45 F/F 8/8 POS 1.27mm Solder RA Thru-Hole 28 Terminal 2 Port Cat 5e T/R

2337994-4, Conn RJ-45/RJ-45 F/F 8/8 POS 1.27mm Solder RA Thru-Hole 28 Terminal 2 Port Cat 5e T/Rzoom

Attributes

Key Value
Applications10/100 Base-T, AutoMDIX.
Base Product Number2337994
BrandTE Connectivity
CategoryConnectors, Interconnec.
ConfigurationMultiple Ports
ConnectorPrinted Circuit Board
Connector Contact Densi.Standard
Connector Height13.76?mm?[?.542?in?]
Connector ProfileStandard
Connector StyleJack
Connector TypeRJ45
Contact Base MaterialCopper Alloy
Contact FinishGold
Contact Finish Thickness30.0?in (0.76?m)
Contact MaterialCopper Alloy
Contact Mating Area Pla.Gold over Nickel
Contact Mating Area Pla..76??m?[?30??in?]
Contact PlatingGold over Nickel, Tin o.
Contact Underplating Ma.Nickel
Data Rate10 ; 100 Mbps
DepthDepth
DescriptionCONN JACK 2PORT 100 BAS.
Detailed Description2 Port RJ45Through Hole.
Digi-Key Part NumberA145022TR-ND - Tape & R.
Ethernet Connector TypeRJ45 Connector
FeaturesBoard Guide
Finish PlatingMatte
Flammability RatingUL 94V-0
GenderFemale
Grounding OptionsPCB and Panel Ground
Height13.76 mm[.542 in]
Height Above Board0.539" (13.69mm)
Housing ColorBlack
Housing MaterialLiquid Crystal Polymer .
IndicatorLED
Insulation MaterialLCP
IP RatingIP20
KeyedNo
LAN CategoryCat5
LED ColorGreen - Yellow
LED Color (Bottom Left)Green
LED Color (Bottom Right)Yellow
LED Color (Top Left)None
LED Color (Top Right)None
Length34.6mm
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.2337994-4
Manufacturer Standard L.18 Weeks
Mating Entry LocationSide
MfrTE Connectivity AMP Con.
Modular Connector StyleJack
Modular JackRJ45 with Integrated Ma.
Modular Jack Latch Orie.Standard - Latch Down
Modular JacksRJ Type Jacks & Plugs
Mounting TypeThrough Hole
Multiple Port Configura.Ganged
Number of Cores per Jack4
Number of Loaded Positi.8
Number of Ports2, 1 x 2
Number of Positions8
Number of Rows1
Number Of Ways8
Operating Temperature-40?C ~ 85?C
Operating Temperature R.-40 ? 85??C?[?-40 ? 185.
OrientationRight Angle, 90? Angle .
PackageTape & Reel (TR)
Package TypeReel
Packaging MethodReel
Packaging Quantity80
PCB Contact Termination.Tin
PCB Mount OrientationRight Angle
PCB Mount Retention TypeBoardlock
Performance CategoryCat 5
Plating MaterialNickel
Port ConfigurationMultiple Ports
Port Matrix Configurati.1 x 2
Product StatusActive
SealableNo
Series-
Series Number2337994
Shield MaterialBrass
Shield Plating MaterialNickel
Shield TypeNickel Plated Brass
ShieldedYes
ShieldingShielded, EMI Finger
Status IndicatorLED
StockStock
Tab DirectionDown
Temperature Range-40 to 85 C
TerminationSolder
Termination Method to P.Through Hole - Solder
UL Flammability RatingUL 94V-0
Width21.35mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier

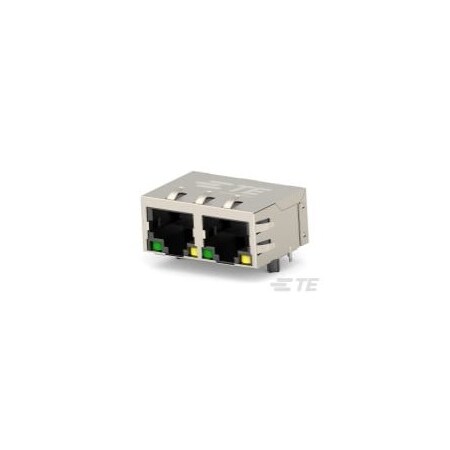

WaldomTE CONNECTIVITY AMP BRAND 2337994-417.7480800TE CONNECTIVITY/AMP BRAND17.74 @ 80
Future Electronics311299427.3848080TE Connectivity27.384 @ 80
thumbzoomZoroG60593038928.268010Te Connectivity28.26 @ 80
thumbzoomDigi-Key999904229.7852180TE Connectivity AMP Connectors29.7852 @ 10
thumbzoomNewark99AC309330.91110TE CONNECTIVITY30.91 @ 10

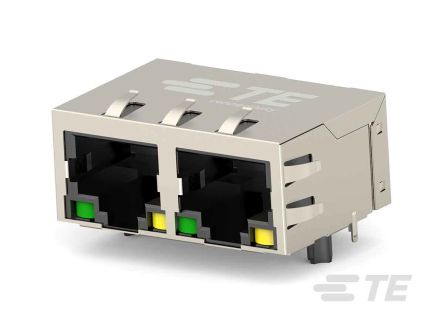

thumbzoomRS Delivers188-446032.604110TE Connectivity32.604 @ 10
us.rs-online.com7164217452.01180TE Connectivity52.01 @ 10
