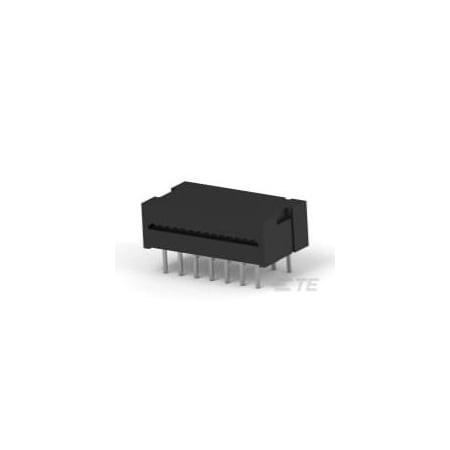

TE Connectivity 5746613-2

mpn5746613-2
brandname: TE Connectivity
manufacturername: TE Connectivity

TE Connectivity Part Number 5746613-2

TE Connectivity Part Number 5746613-2

zoom

Brand: TE Connectivity
PartNumber: 5746613-2
Manufacturer: TE Connectivity
Label: TE Connectivity

Attributes

Key	Value
Accepts Wire Insulation.	.81 ? 1.07?mm?[?.032 ? .
Alternate Mfr Part Numb.	5746613-2
Centerline (Pitch)	2.54?mm?[?.1?in?]
Circuit Application	Signal
Color	Black
Connector	Plug, Printed Circuit B.
Connector Height	6.43?mm?[?.253?in?]
Connector Mounting Type	Board Mount
Connector System	Wire-to-Board
Connector Width	7.06?mm?[?.278?in?]
Contact Base Material	Phosphor Bronze
Contact Current Rating .	1
Contact Mating Area Pla.	2.54??m?[?100??in?]
Contact Type	Pin
Country of Origin (subj.	China
Housing Color	Black
Mating Alignment	With
Mating Alignment Type	Polarization
Mating Retention	Without
Number of Contacts	14
Number of Positions	14
Number of Rows	2
Operating Temperature R.	-65 ? 105??C?[?-85 ? 22.
Packaging Method	Box & Tray, Tray
Packaging Quantity	288
Panel Mount Feature	Without
PCB Mount Alignment	Without
PCB Mount Orientation	Vertical
PCB Mount Retention	Without
PCB Thickness (Recommen.	3.18?mm?[?.125?in?]
Pitch	2.54 mm (0.100")
Primary Type	Board Mount
Row-to-Row Spacing	2?mm?[?.1?in?]
Series	AMP-LATCH Series
Termination	Solder
Termination Method to P.	Through Hole - Solder
Termination Method to W.	Insulation Displacement.
Termination Post	3.94?mm?[?.155?in?]
Type	Plug
UL Flammability Rating	UL 94V-0
Wire Size	.051 ? .15, 30 ? 26, 10.

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Newark	42K7422	0.748	1	44		AMP - TE CONNECTIVITY		0.748 @ 1
	Avnet	5746613-2	1.795	180	864		TE Connectivity		1.795 @ 180
	Waldom	TE CONNECTIVITY AMP BRAND 5746613-2	2.24	25	2173		TE CONNECTIVITY/AMP BRAND		2.24 @ 25
	Onlinecomponents.com	5746613-2	2.66	1	37		TE Connectivity / AMP Brand		2.66 @ 1
	TE Connectivity	5746613-2	3.46967	1	1450		TE Connectivity (TE)		3.46967 @ 1
	Digi-Key	A107231-ND	3.77	1	26		TE Connectivity AMP Connectors		3.77 @ 1
	Zoro	G700946643	4.06	1800	24		Te Connectivity		4.06 @ 1800
	us.rs-online.com	70042816	4.09	1800	24		TE Connectivity		4.09 @ 1800
	Future Electronics	3026954	5.51388	1800	26		TE Connectivity		5.51388 @ 1800
	AmazonSC	B06WWQ18Z5	795.85	1	24		TE Connectivity		795.85 @ 1
