TE Connectivity 5520257-2

B0090M6BPM

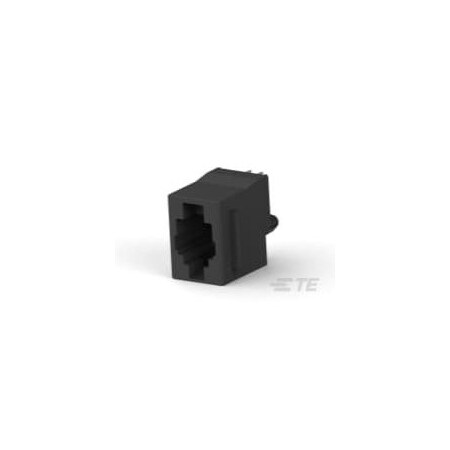

TE Connectivity 5520257-2 Jack Modular Connector 4p4c (RJ9, RJ10, RJ22) Vertical Unshielded Cat3 New Lot Quantity-10

TE Connectivity 5520257-2 Jack Modular Connector 4p4c (RJ9, RJ10, RJ22) Vertical Unshielded Cat3 New Lot Quantity-10zoom

Attributes

Key Value
Agency ApprovalsUL ; CSA
Alternate Mfr Part Numb.5520257-2
AngleStraight
Base Product Number5520257
Cable TypeCat 3
CategoryConnectors, Interconnec.
Centerline (Pitch).04 in
Circuit ApplicationSignal
ColorBlack
Connector & Contact Ter.Printed Circuit Board
Connector Contact Densi.Standard
Connector Height.65 in
Connector StyleJack
Connector TypeJack
Connectors & Connector .Connector
Contact Base MaterialPhosphor Bronze
Contact Current Rating .1.5 A, .2 A
Contact FinishGold
Contact Finish Thickness50.0?in (1.27?m)
Contact MaterialPhosphor Bronze
Contact PlatingGold Plated Nickel
Current Rating1.5 A
DescriptionCONN MOD JACK 4P4C VERT.
Detailed DescriptionJack Modular Connector .
Digi-Key Part NumberA31409-ND
Entry LocationTop
FeaturesBoard Lock, Panel Stops
Housing ColorBlack
Housing MaterialPolyester, PBT Polyeste.
Ingress Protection-
KeyedNo
Latch OrientationStandard - Latch Down
LED ColorDoes Not Contain LED
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.5520257-2
Manufacturer Standard L.4 Weeks
MfrTE Connectivity AMP Con.
ModeSinglemode
Modular Jacks & Plugs P.RJ Type Jacks & Plugs
Mounting TypeThrough Hole
Number of Contacts4
Number of Ports1
Number of Positions4
Number of Positions/Con.4p4c (RJ9, RJ10, RJ22)
Number of Rows1
Operating Temperature-40?C ~ 85?C
Operating Temperature R.-40 to 185?F
OrientationVertical
PackageTray
Panel Mount FeatureWith
PCB Thickness (Recommen..062 in
Performance CategoryCat 3
Port ConfigurationSingle Port
Port Matrix Configurati.1 x 1
Primary TypeRJ22
Product StatusActive
RatingsCat3
Series-
ShieldingUnshielded
Tab DirectionUser Selectable
TerminationSolder, Through Hole
Termination Method to P.Through Hole - Solder
TypeModular Jack
UL Flammability RatingUL 94V-0
Voltage Rating150 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
us.rs-online.com700429380.621246TE Connectivity0.62 @ 100
Avnet5520257-20.6341681242TE Connectivity0.634 @ 168
Onlinecomponents.com5520257-20.8912584TE Connectivity / AMP Brand0.89 @ 100
thumbzoomNewark26M75450.9661789AMP - TE CONNECTIVITY0.966 @ 100
WaldomTE CONNECTIVITY AMP BRAND 5520257-20.9855100TE CONNECTIVITY/AMP BRAND0.98 @ 100
thumbzoomTMERJ9GP-AMP1.161100TE Connectivity1.16 @ 100
thumbzoomDigi-Key7695531.5619216010TE Connectivity AMP Connectors1.56192 @ 100
RS Delivers615-42821.882811925TE Connectivity1.8828 @ 100
AmazonSCB06XMZ6BDF37.891100TE Connectivity37.89 @ 100
AmazonTPB00LQPL9AS81.1711002TE CONNECTIVITY / AMP81.17 @ 100
thumbzoomZoroG805930349101.51100Te Connectivity101.5 @ 100
Hawk Electronics5520257-21200.09999100TE Connectivity1200.0 @ 9999
