Souriau SMS9PHGE4

mpnSMS9PHGE4
brandname: Souriau
manufacturername: Souriau

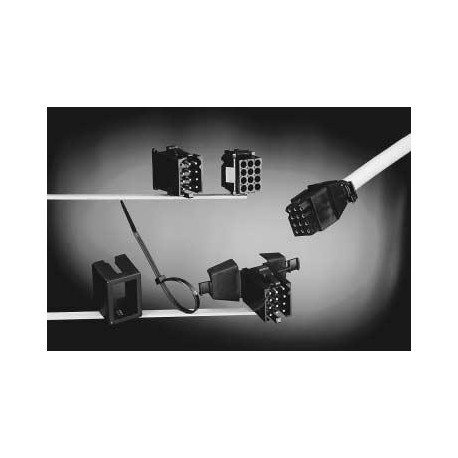

Headers & Wire Housings 9P Strt Pin Header Boardmount

Headers & Wire Housings 9P Strt Pin Header Boardmount

zoom

Brand: Souriau
PartNumber: SMS9PHGE4
Model: SMS9PHGE4
PackageQuantity: 1
Binding: Electronics
Manufacturer: Souriau
Label: Souriau

Attributes

Key	Value
Amperage Rating	7.5A
Connector Style	Receptacle
Connector Type	Header, Rectangular
Contact Finish - Mating	Gold
Contact Finish Thicknes.	16.0
Contact Length - Post	0.165" (4.19mm)
Contact Material	Copper Alloy
Contact Mating Life	500
Contact Plating	Gold
Contact Shape	Circular
Contact Size	9#16
Contact Style	Pin
Contact Type	Male Pin
Contacts Supplied	Yes
Contacts, # of	9
Current Rating (Amps)	7.5A
Export Class	EAR / EAR99
Fastening Type	Push-Pull
Features	Mounting Flange
Insert Arrangement	9 Way
Insulation Color	Black
Insulation Height	0.370" (9.40mm)
Insulation Material	Thermoplastic, Glass Fi.
Lead Free Status / RoHS.	RoHS Compliant
Manufacturer Part Number	SMS9PHGE4
Manufacturer Standard L.	14 Weeks
Material Flammability R.	UL94 V-0
Mounting Type	Panel - Front Mount, Th.
Number of Positions	9
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-55
Operating Temperature &.	-67 to +257 (-55 to +12.
Packaging	Bulk Pack
Pitch - Mating	0.200" (5.08mm)
RoHS	Yes
Sealing	IP30
Series	SMS
Shell Color	Black
Shell Material	Glass Filled Thermoplas.
Shielding	No
Shrouding	Shrouded - 4 Wall
Specification	UL/CSA
Standard Package	100
Style	Board to Cable/Wire
Termination	Solder
Termination Method	PCB - Straight
Weight (g)	8.00000
Weight (lbs)	0.01764

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	iodParts	SMS9PHGE4	10.14	25	100		Souriau		10.14 @ 25
