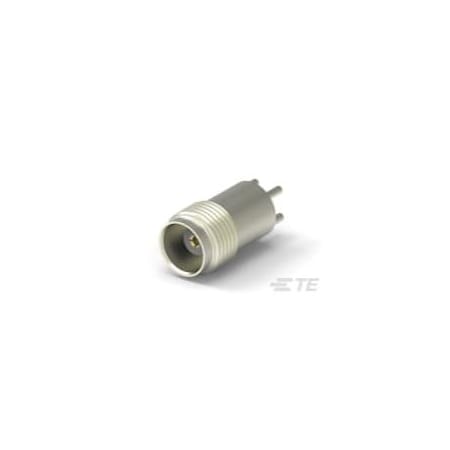

TE Connectivity 5-1814805-1

mpn5-1814805-1
brandname: TE Connectivity
manufacturername: TE Connectivity

TE Connectivity Part Number 5-1814805-1

Brand: TE Connectivity
PartNumber: 5-1814805-1
Manufacturer: TE Connectivity
Label: TE Connectivity

Attributes

Key	Value
Alternate Mfr Part Numb.	5-1814805-1
Angle	Straight
Base Product Number	1814805
Body Finish	Nickel
Body Material	Zinc
Body Plating Material	Nickel
Cable Group	-
Category	Connectors, Interconnec.
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector	Printed Circuit Board
Connector Mounting Type	Board Mount
Connector Style	TNC
Connector System	Cable-to-Board
Connector Type	Jack, Female Socket
Contact Plating	Gold
Contact Termination	Solder
Country of Origin (subj.	Taiwan, Province of Chi.
Detent	Without
Dielectric Material	Polytetrafluoroethylene.
Fastening Type	Threaded
Features	-
Frequency	4GHz
Frequency - Max	4 GHz
Height Above PC Board	18.3?mm?[?.72?in?]
Housing Color	Silver
Housing Finish	Nickel
Impedance	50Ohm, 50 Ohms, 50
Includes	-
Ingress Protection	-
Insertion Loss	-
Mating Cycles	500
Mfr	TE Connectivity AMP Con.
Mounting Feature	-
Mounting Type	Through Hole, PCB Mount
Number of Coaxial Conta.	1
Number of Ports	1
Number of Positions	1
Operating Frequency	4
Operating Temperature	-55?C ~ 85?C
Operating Temperature R.	-55 ? 85??C?[?-67 ? 185.
Package	Bulk
Packaging	Bulk
Packaging Method	Box & Tray, Box
Packaging Quantity	100
PCB Mount Orientation	Vertical
PCB Mount Retention	Without
PCB Tail Length	4?mm?[?.157?in?]
Polarity	Normal
Port Configuration	Single Port
Primary Type	TNC
Product Status	Obsolete
RF Connector Center Con.	Phosphor Bronze
RF Connector Center Con.	Gold
RF Connector Coupling M.	Threaded
RF Connector Mated Oute.	16.256?mm?[?.64?in?]
RF Connector Style	Jack
RF Contact Captivation .	Mechanical
RF Interface	TNC
Sealable	No
Series	ZDC, Greenpar, ZDC Gree.
Shield Termination	Solder
Size	Standard
Termination	Solder
Termination Method to P.	Through Hole - Solder
Type	PCB Jack
Voltage Rating	500 V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Waldom	TE CONNECTIVITY AMP BRAND 5-1814805-1	2.18	25	27	TE CONNECTIVITY/AMP BRAND	2.18 @ 25
Onlinecomponents.com	5-1814805-1	2.9	1	1550	TE Connectivity / AMP Brand	2.9 @ 1
us.rs-online.com	70084658	3.24	1000	30	TE Connectivity	3.24 @ 1000
TE Connectivity	5-1814805-1	3.37638	1	2406	TE Connectivity (TE)	3.37638 @ 1
Hotenda	H836400	3.98	1	30	TE Connectivity AMP Connectors	3.98 @ 1
Zoro	G300984748	4.24	2	23	Te Connectivity	4.24 @ 2
Digi-Key	1755979	15.46	1	30	TE Connectivity AMP Connectors	15.46 @ 1
