TE Connectivity 2-644803-2

B00KSP1P8S

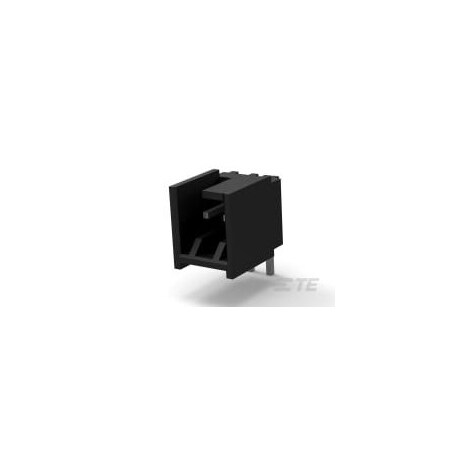

TE Connectivity Part Number 2-644803-2

TE Connectivity Part Number 2-644803-2zoom

Attributes

Key Value
Alternate Part No.571-2-644803-2
ApplicationWire-to-Board
ApplicationsGeneral Purpose
Base Product Number644803
BrandTE Connectivity / AMP
CategoryConnectors, Interconnec.
Centerline (Pitch)2.54?mm?[?.1?in?]
Circuit ApplicationSignal
ConnectorPrinted Circuit Board
Connector Height10.41?mm?[?.41?in?]
Connector Mounting TypeBoard Mount
Connector SystemWire-to-Board
Connector TypeHeader
Contact Base MaterialCopper Alloy
Contact Current Rating .5
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.-
Contact Finish Thicknes.-
Contact GenderPin (Male)
Contact Length - Mating0.200" (5.08mm)
Contact Length - Post0.130" (3.30mm)
Contact MaterialCopper Alloy
Contact Mating Area Pla.Tin
Contact Mating Area Pla.Matte
Contact Mating Area Pla.3.81 ? 6.3??m?[?150 ? 2.
Contact PlatingGold
Contact Retention Withi.Without
Contact ShapeSquare
Contact TypeMale Pin, Pin
Contact Underplating Ma.Nickel
Country of Origin (subj.China
Current Rating5 A
Current Rating (Amps)Varies by Wire Gauge
DescriptionCONN HEADER R/A 2POS 2..
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberA30924-ND
Fastening TypeFriction Lock
Features-
Flammability RatingUL 94 V-0
Header TypeShrouded
Housing ColorBlack
Housing MaterialPolyester, Polyester - .
Ingress Protection-
Insulation ColorBlack
Insulation Height0.343" (8.71mm)
Insulation MaterialPolyester
Latching TypeFriction Lock
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.2-644803-2
Manufacturer Product Nu.2-644803-2
Manufacturer Standard L.15 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
Mating RetentionWith
MfrTE Connectivity AMP Con.
Mounting AngleRight
Mounting TypeThrough Hole, Right Ang.
Number of Positions2
Number of Positions Loa.All
Number of Rows1
Operating Temperature-55?C ~ 105?C
Operating Temperature R.-55 ? 105??C?[?-67 ? 22.
Overall Contact Length-
PackageBulk
Packaging MethodBag/Box
Packaging Quantity500
Panel Mount FeatureWithout
PCB Connector Assembly .PCB Mount Header
PCB Contact Termination.Tin
PCB Contact Termination.Matte
PCB Mount AlignmentWithout
PCB Mount OrientationRight Angle
PCB Mount RetentionWithout
PCB Thickness (Recommen.1.6?mm?[?.063?in?]
Pitch2.54 mm
Pitch - Mating0.100" (2.54mm)
Product CategoryHeaders & Wire Housings
Product StatusActive
Product TypeHeaders
Row Spacing - Mating-
SealableNo
SeriesMTA-100
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder
Termination Method to P.Through Hole - Solder
Termination Method to W.Solder
Termination Post3.3?mm?[?.13?in?]
Termination Post Length3.3 mm
Termination StyleThrough Hole
TypeShrouded
UL Flammability RatingUL 94V-0
Voltage Rating250 V, 250VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 2-644803-20.21225063483TE CONNECTIVITY/AMP BRAND0.212 @ 250
Onlinecomponents.com2-644803-20.2211147917TE Connectivity / AMP Brand0.221 @ 250
Newark66M81280.2883000250AMP - TE CONNECTIVITY0.288 @ 2500
TE Connectivity2-644803-20.3360711795TE Connectivity (TE)0.33607 @ 250
thumbzoomZoroG0009280800.3823250Te Connectivity0.38 @ 250
thumbzoomDigi-Key6984390.44761994TE Connectivity AMP Connectors0.4476 @ 250
thumbzoomswatee.com2-644803-20.612988TE Connectivity0.6 @ 250
