TE Connectivity / AMP Brand 5558068-1

B00FRBTR7O

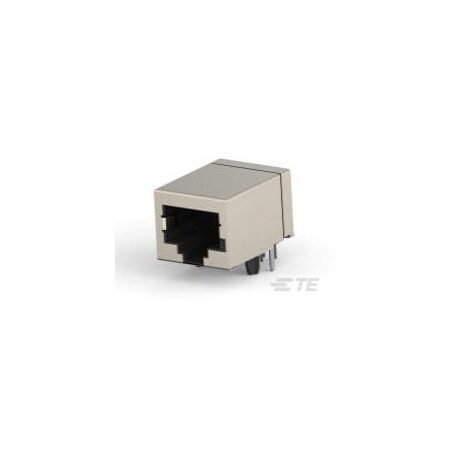

TE Connectivity/AMP Brand 5558068-1 Connector Telephone and Telecom

TE Connectivity/AMP Brand 5558068-1 Connector Telephone and Telecomzoom

Attributes

Key Value
Base Product Number5558068
CategoryConnectors, Interconnec.
Centerline (Pitch)&thin.1.02?mm?[?.04?in?]
Connector & Contact Ter.Printed Circuit Board
Connector Contact Densi.Standard
Connector Height&thinsp.13.64?mm?[?.537?in?]
Connector Mounting TypeBoard Mount
Connector Product TypeConnector Assembly
Connector StyleJack
Connector TypeJack
Connectors & Connector .Connector
Contact Base MaterialPhosphor Bronze
Contact Current Rating .1.5
Contact FinishGold
Contact Finish Thickness50.0?in (1.27?m)
Contact MaterialPhosphor Bronze
Contact Mating Area Pla.Gold
Contact Mating Area Pla.1.27??m?[?50??in?]
Contact Underplating Ma.Nickel
Country of Origin (subj.China
DescriptionCONN MOD JACK 10P10C R/.
Detailed DescriptionJack Modular Connector .
Digi-Key Part NumberA31462-ND
Entry LocationSide
FeaturesBoard Lock, Keyed
Grounding OptionsPCB Ground
Housing ColorBlack
Housing MaterialPCT Polyester, Polycycl.
Ingress Protection-
KeyedYes
LED ColorDoes Not Contain LED
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.5558068-1
Manufacturer Standard L.14 Weeks
MfrTE Connectivity AMP Con.
Modular Jack & Plug Int.RJ45
Modular Jack Latch Orie.Standard - Latch Down
Modular Jacks & Plugs P.RJ Type Jacks & Plugs
Mounting TypeThrough Hole
Number of Loaded Positi.10
Number of PCB Ground Ta.2
Number of Ports1
Number of Positions10
Number of Positions/Con.10p10c (RJ50)
Number of Rows1
Operating Temperature-40?C ~ 85?C
Orientation90? Angle (Right)
PackageTray
Panel Mount FeatureWith
PCB Contact Termination.Tin
PCB Ground Tab Location.-3.05?mm?[?-.12?in?]
PCB Mount OrientationRight Angle
PCB Tail Length?.3.56?mm?[?.14?in?]
PCB Thickness (Recommen.1.57?mm?[?.062?in?]
Port ConfigurationSingle Port
Port Matrix Configurati.1 x 1
Product StatusActive
ProfileLow
RatingsCat3
Series-
Shield MaterialCopper Alloy
Shield Plating MaterialTin
ShieldingShielded
Status IndicatorNone
Tab DirectionDown
TerminationSolder
Termination Method to P.Through Hole - Solder

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Verical5558068-15.237222TE Connectivity5.23 @ 7
WaldomTE CONNECTIVITY AMP BRAND 5558068-15.8510234TE CONNECTIVITY/AMP BRAND5.85 @ 10
Newark73P96746.8122502AMP - TE CONNECTIVITY6.81 @ 2250
thumbzoomZoroG9010175558.532252Te Connectivity8.53 @ 225
TE Connectivity5558068-19.3681221TE Connectivity (TE)9.368 @ 2
Mouser571-5558068-110.791231TE Connectivity10.79 @ 2
thumbzoomDigi-Key76960618.961234TE Connectivity AMP Connectors18.96 @ 2
