AO Smith 9709

B007ATNS30

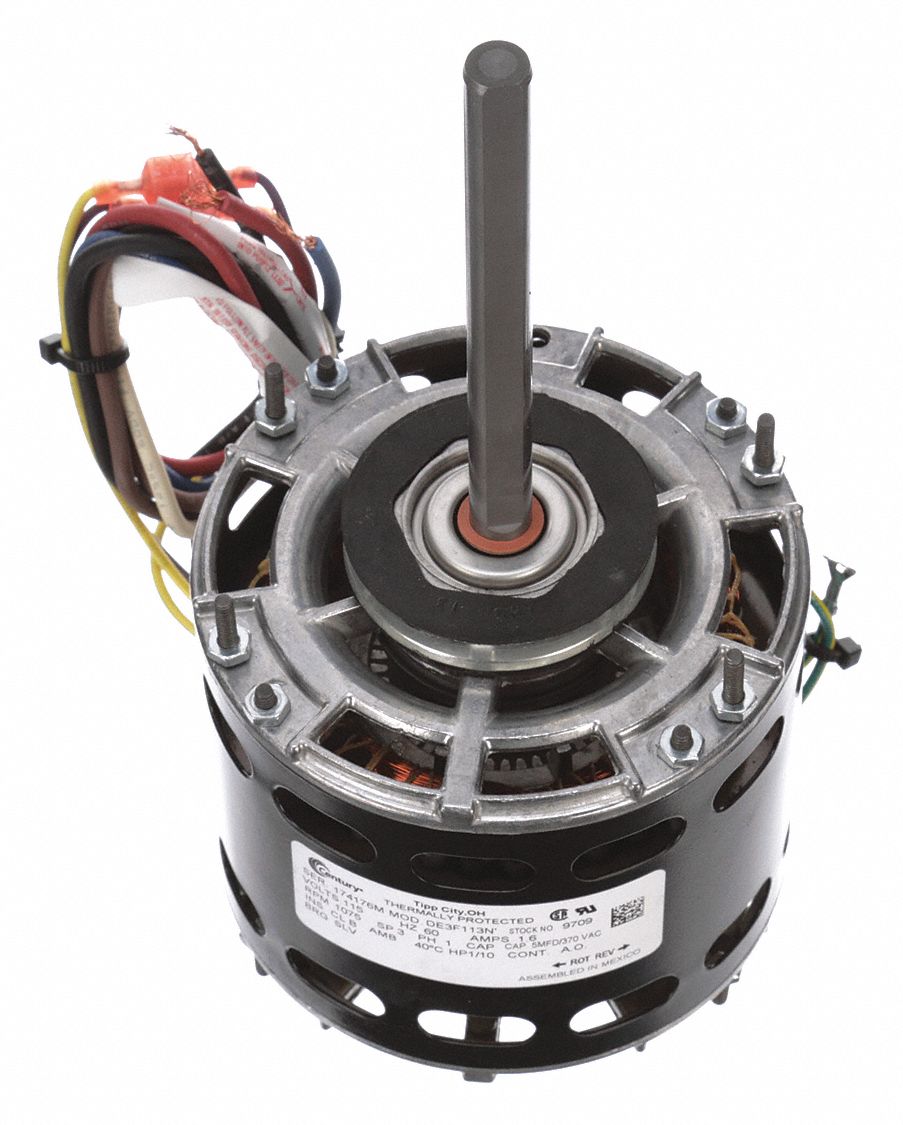

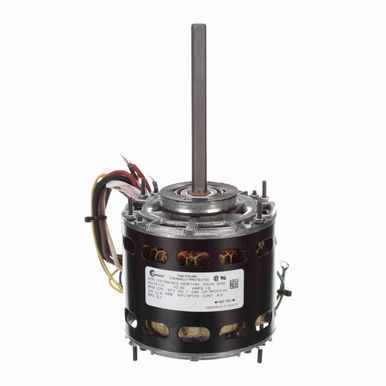

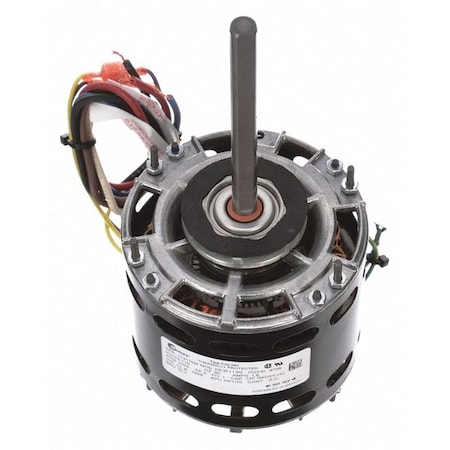

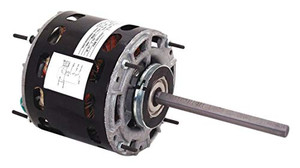

AO Smith 9709 5.0-Inch Frame Diameter 1/10 HP 1075 RPM 115-Volt 1.6-Amp Sleeve Bearing Blower Motor

AO Smith 9709 5.0-Inch Frame Diameter 1/10 HP 1075 RPM 115-Volt 1.6-Amp Sleeve Bearing Blower Motorzoom

Attributes

Key Value
9709 is listed in Centu.A.O. Smith DE3F113, Day.
Amps1.6
ApplicationBlowers, Fans and Air C.
BearingsSleeve
Best Sellers RankSee Top 100 in Tools & .
Body Dia.5 in
Bolt Circle Dia.4 5/8 in
BrandCentury
Capacitor5MFD @ 370VAC Required
Capacitor Required2MDV4
Current Stock197
Date First AvailableSeptember 9, 2010
Duty CycleContinuous
Enclosure TypeOAO (Open Air Over)
Frame42Y
HP1/10
Hz60, 60 Hz
Insulation ClassB
International ShippingNo
Item model number9709
Lead Length13 in
Lead TimeExpected to ship in 1-2.
Length Less Shaft5 3/16 in
ManufacturerCentury
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
Motor ApplicationHVAC/R
Motor BearingsSleeve
Motor DesignPermanent Split Capacit.
Motor Diameter5"
Motor Enclosure DesignOpen Air-Over
Motor Mounting PositionHorizontal
Motor Sub ApplicationRoom Air Conditioner
MountingBand/Ring/Stud
Mounting Stud LocationBoth Ends
Mpn9709
Number of Speeds3
Overall Length10 15/16 in
Package Dimensions21 x 18 x 18 inches; 9 .
Phase1, Single
Product TypePSC (Permanent Split Ca.
Product with faster shi.true
Resilient Ring Dia.2 1/2 in
RotationReversible
RPM1075
Service Factor (SF)1.00
Shaft Dia.1/2 in
Shaft Diameter1/2"
Shaft Length5-3/4", 5 13/16 in
Ship Weight9 lbs.
Shippingundefined (Fixed Shippi.
SKUZO-G2856235
Stud Size#8-32
SubCategoryMotors/Ac Motors
Thermal ProtectionAutomatic
UPC0786674009715
Voltage115V AC
Voltage Compatibility115/208-230V AC, 115/23.
Volts115

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomktool.net9709184.361In StockCentury184.36 @ 1
thumbzoomZoroG2856235185.991279Century9.35185.99 @ 1
thumbzoomsimsupply.comZO-G2856235220.21197Century220.2 @ 1
thumbzoomemotorpro.com9709225.01In StockCentury9.0225.0 @ 1
thumbzoommidwestapplianceparts.com9709-AO-P227.281In StockAO Smith227.28 @ 1
thumbzoomsustainablesupply.comC1561821229.491In StockCentury9.35229.49 @ 1
thumbzoomNational Supply NetworkB244808229.941In StockAO SMITH229.94 @ 1
thumbzoomGlobal IndustrialWBB244808235.951In StockCentury235.95 @ 1
thumbzoomhomeessentialsdirect.com9709238.231In StockCENTURY238.23 @ 1
thumbzoomVoomi Supply9709239.031In StockCentury Motors239.03 @ 1
hvacdiscountstore.comCEN--9709242.011In StockCENTURY MOTORS242.01 @ 1
thumbzoomindustrialstores.com9709248.8312Century Motors by Regal Beloit248.83 @ 1
AmazonTPB007ATNS30270.01In Stock2Century Electric/AO Smith Motors Co270.0 @ 1
