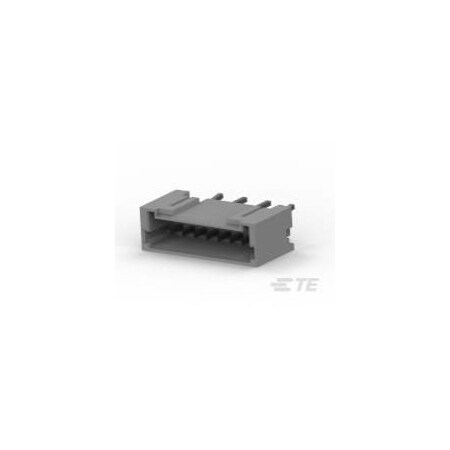

TE Connectivity Part Number 292207-8

TE Connectivity Part Number 292207-8zoom

Attributes

Key Value
ApplicationsGeneral Purpose
Assembly Process FeaturePick and Place Cover
Base Product Number292207
CategoryConnectors, Interconnec.
Centerline (Pitch)1.5?mm?[?.059?in?]
Circuit ApplicationSignal
ConnectorPrinted Circuit Board
Connector Height8.4?mm?[?.33?in?]
Connector Mounting TypeBoard Mount
Connector SystemWire-to-Board
Connector TypeHeader, Male Pin
Connector Width4.7?mm?[?.185?in?]
Contact Base MaterialBrass
Contact Current Rating .2
Contact Finish - Mating39.4?in (1.00?m), Tin
Contact Finish - PostBrass, Tin
Contact Finish Thicknes.Tin, 39.4?in (1.00?m)
Contact Finish Thicknes.-, General Purpose
Contact Length - Mating0.094" (2.40mm), 0.118".
Contact Length - Post0.118" (3.00mm), 0.307".
Contact MaterialBrass, Polyamide (PA), .
Contact Mating Area Pla.Tin
Contact Mating Area Pla.Matte
Contact Mating Area Pla.1??m?[?39.37??in?]
Contact Retention Withi.With
Contact ShapeTin, Square
Contact TypeMale Pin, 0.059" (1.50m.
Country of Origin (subj.China
Current Rating (Amps)50VAC, Varies by Wire G.
DescriptionCONN HEADER VERT 8POS 1.
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberA98687-ND
Fastening TypeDetent Lock, 0.094" (2..
FeaturesBoard Guide, -30?C ~ 10.
Header TypeShrouded
Housing ColorNatural
Housing MaterialNylon(G.F)
Ingress ProtectionUL94 V-0, -
Insulation ColorGray, Varies by Wire Ga.
Insulation HeightSquare, 0.272" (6.91mm)
Insulation MaterialBoard Guide, Polyamide .
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.292207-8
Manufacturer Standard L.11 Weeks
Mated Stacking Heights-
Material Flammability R.Gray, UL94 V-0
Mating RetentionWith
MfrTE Connectivity AMP Con.
Mounting TypeKinked Pin, Solder, Thr.
Number of Positions1, 8
Number of Positions Loa.All, Board to Cable/Wire
Number of Rows1, -
Operating Temperature-30?C ~ 105?C, -
Operating Temperature R.-22 ? 221??C?[?-30 ? 10.
Operating Voltage50
Overall Contact Length0.307" (7.80mm), 0.272".
PackageActive, Bulk
Packaging MethodBox & Tray
Packaging Quantity1000
Panel Mount FeatureWith
Part StatusHeader
PCB Connector Assembly .PCB Mount Header
PCB Contact Termination.Tin
PCB Mount AlignmentWith
PCB Mount OrientationVertical
PCB Mount RetentionWith
PCB Mount Retention TypeKinked Legs
PCB Thickness (Recommen.1.6?mm?[?.063?in?]
Pitch - Mating8, 0.059" (1.50mm)
Product StatusActive
Row Spacing - MatingAll, -
SealableNo
SeriesBulk, Mini CT
ShroudingThrough Hole, Shrouded .
StyleBoard to Cable/Wire, Sh.
TerminationDetent Lock, Kinked Pin.
Termination Method to P.Through Hole - Solder
Termination Post3?mm?[?.118?in?]
UL Flammability RatingUL 94V-0
Voltage Rating-, 50VAC
