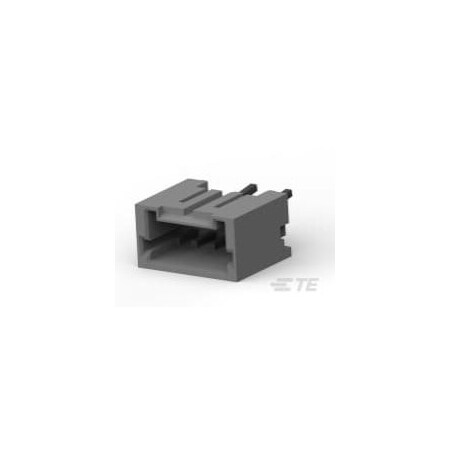

TE CONNECTIVITY/AMP 292207-4 Connector, Header, 4POS, 1ROW, 1.5MM

TE CONNECTIVITY/AMP 292207-4 Connector, Header, 4POS, 1ROW, 1.5MMzoom

Attributes

Key Value
Alternate Part No.571-292207-4
ApplicationsGeneral Purpose
Assembly Process FeaturePick and Place Cover
Base Product Number292207
BrandTE Connectivity / AMP
CategoryConnectors, Interconnec.
Centerline (Pitch)1.5?mm?[?.059?in?]
Circuit ApplicationSignal
ColorNatural
Connection MaterialBrass
ConnectorPrinted Circuit Board
Connector Height8.4?mm?[?.33?in?]
Connector Mounting TypeBoard Mount
Connector SystemWire-to-Board
Connector Terminates ToPrinted Circuit Board
Connector TypeHeader
Connector Width4.7?mm?[?.185?in?]
Contact Base MaterialBrass
Contact Current Rating .2
Contact FinishTin Plated
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.39.4?in (1.00?m)
Contact Finish Thicknes.-
Contact GenderPin (Male)
Contact Length - Mating0.094" (2.40mm)
Contact Length - Post0.118" (3.00mm)
Contact MaterialBrass
Contact Mating Area Pla.Tin
Contact Mating Area Pla.Matte
Contact Mating Area Pla.1??m?[?39.37??in?]
Contact PlatingTin
Contact Plating Thickne.39.37 ?in
Contact Retention Withi.With
Contact ShapeSquare
Contact TypeMale Pin, Pin
Current Rating2 A
Current Rating (Amps)Varies by Wire Gauge
DescriptionCONN HEADER VERT 4POS 1.
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberA98683-ND
Fastening TypeDetent Lock
FeaturesBoard Guide, Panel Moun.
Flammability RatingUL 94 V-0
Header TypeShrouded
Height8.4 mm
Hole Center to Center1.5 mm
Housing ColorNatural
Housing MaterialNylon(G.F)
Ingress Protection-
Insulation ColorGray
Insulation Height0.272" (6.91mm)
Insulation MaterialPolyamide (PA), Nylon, .
ItemPCB Mount Header
Length0.334 in
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.292207-4
Manufacturer Product Nu.292207-4
Manufacturer Standard L.13 Weeks
Mated Stacking Heights-
MaterialNylon
Material Flammability R.UL94 V-0
Mating RetentionWith
Max. Temp.105?C
Max. Voltage50V AC/DC
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Contacts4
Number of Positions4
Number of Positions Loa.All
Number of Rows1
Operating Temperature-30?C ~ 105?C
Operating Temperature R.-22 ? 221??C?[?-30 ? 10.
Operating Voltage50
Overall Contact Length0.307" (7.80mm)
PackageBulk
Package Quantity1
PackagingTray
Packaging MethodBox & Tray
Packaging Quantity1750
Panel Mount FeatureWith
PCB Connector Assembly .PCB Mount Header
PCB Contact Termination.Tin
PCB Mount AlignmentWith
PCB Mount OrientationVertical
PCB Mount RetentionWith
PCB Mount Retention TypeKinked Legs
PCB Thickness (Recommen.1.6?mm?[?.063?in?]
Pitch1.5 mm
Pitch - Mating0.059" (1.50mm)
Product CategoryHeaders & Wire Housings
Product StatusActive
Product TypeHeaders
Row Spacing - Mating-
SealableNo
SeriesMini CT
ShroudingShrouded - 4 Wall
StandardsUL 94V-0; CSA Certified.
StyleBoard to Cable/Wire
Terminal FinishTin Plated
Terminal TypeThrough Hole - Solder
TerminationKinked Pin, Solder
Termination Method to P.Through Hole - Solder
Termination Post3?mm?[?.118?in?]
Termination StyleThrough Hole
TradenameCOMMON TERMINATION
TypeShrouded
UL Flammability RatingUL 94V-0
Voltage Rating50VAC
Width0.185 in
