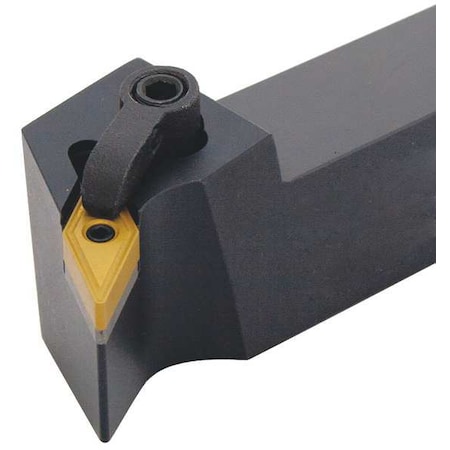

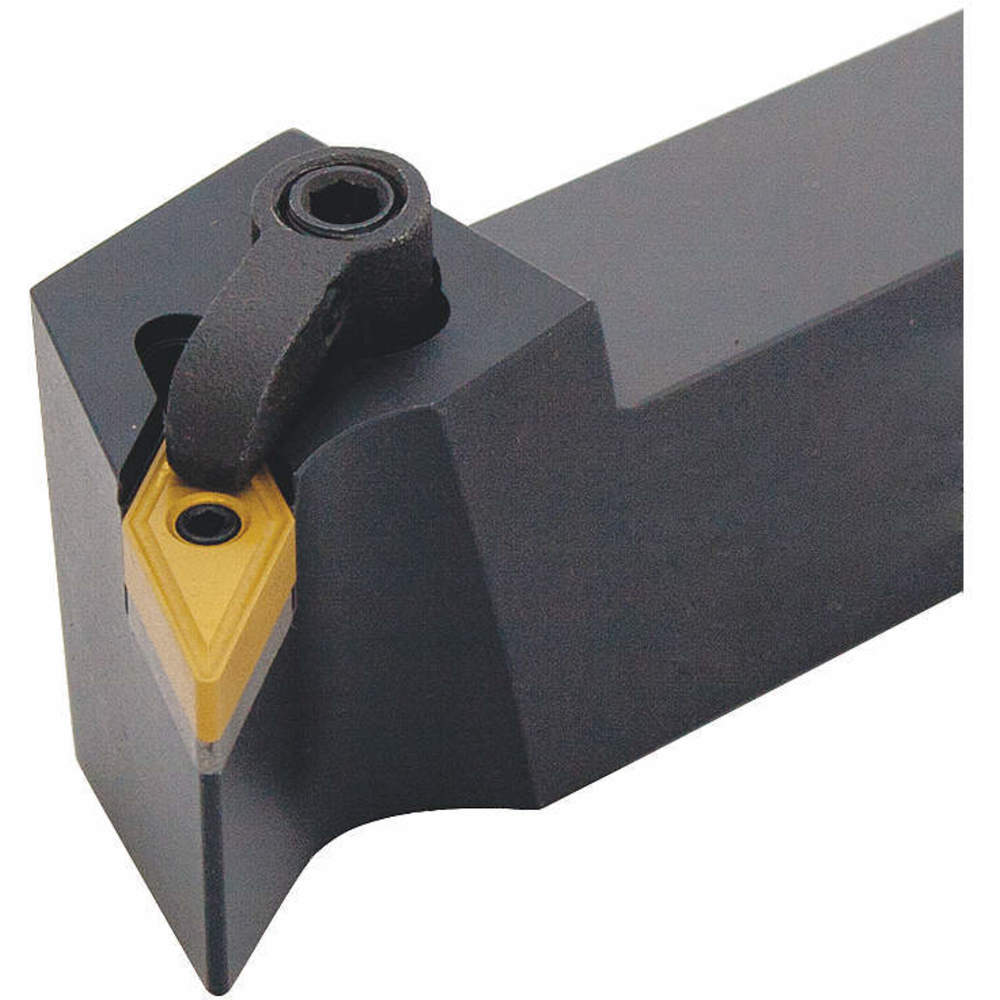

Indexable Turning Toolholder, MVTN, Insert Style VNM., Overall Length 6 in

Technical Specification Item Indexable Turning Toolholder Toolholder Style MVTN Insert Style VNM. Insert Shape 35 Degrees Diamond Overall Length 6 Shank Width 1 Cutting Direction Right Hand Rake Negative ANSI Code MVTNR163D Cutting Application Turning Cutting Height 1 Features Hardened to 44 HRC Head Length 1-5/8 Insert Clearance Angle 0 Degrees Insert Holding Type Clamp and Lock Pin Insert Inscribed Circle 3/8 Insert Size 332 ISO Number MVTNR163D Shank Height 1 Shank Material Alloy Steel Side Cutting Edge Angle -27.5 Degrees This listing is for each. Clamp : CL-30 Clamp Screw : XNS-510 Insert Screw : NL-34L Insert Shape : 35 Degrees Diamond Shim : IVSN-322 Rake : Negative Shank : Square Style : MVTNR16-3D Type : VNMG Holder Item : Indexable Turning Toolholder Insert Size : 332 Overall Length : 6 in Cutting Direction : Right Hand ANSI Code : MVTNR163D Insert Style : VNM. Shank Width : 1 in Toolholder Style : MVTN Insert Holding Type : Clamp and Lock Pin Cutting Height : 1 in Shank Material : Alloy Steel Cutting Application : Turning Shank Height : 1 in Insert Clearance Angle : 0 Degrees Insert Inscribed Circle : 3/8 in Side Cutting Edge Angle : -27.5 Degrees Head Length : 1-5/8 in ISO Number : MVTNR163D Features : Hardened to 44 HRC Shop By : New Low Price Country of Origin (subject to change) : United States
