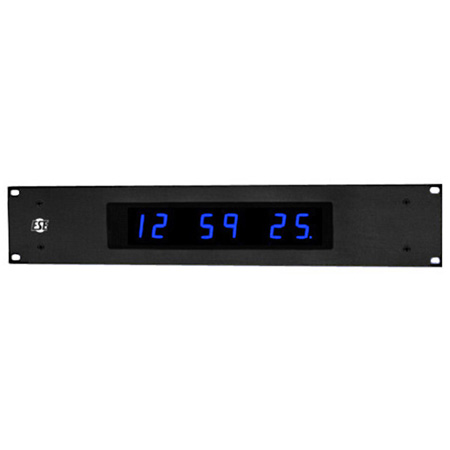

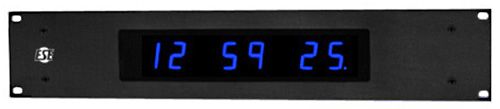

The ES-166UE is a Time Code display featuring 1" Blue LED displays. The unit accepts, via the rear-mounted BNC connector, either ESE Time CodeT (TC76T, TC89T, or TC90T) or SMPTE/EBU Time Code (Time of Day only). RS-232C ASCII Time Code (format "0", "1" or "A" at 9600 baud) may be input via the rear-mounted 9-pin connector.</p><p>The ES-166UE will automatically determine which code is being received. An internal DIP switch is used to configure the display for 12 or 24 Hour format, or to display the Date instead of time-of-day (if incoming time code contains Date information, such as ESE TC90, date-encoded SMPTE/EBU or ASCII formats "1" or "A").</p><p>If the Time Zone option is ordered, an internal DIP switch is installed for this function. If receiving ESE Time CodeT from a timer, the unit will display Minutes, Seconds and Tenths of Seconds (if the timer has the Tenths option).</p><p>The unit may be housed in one of several enclosures: the black anodized aluminum case (ES-166UE); the more rugged baked-powdercoat aluminum case (LX-166U); a 19" x 3.5" panel/chassis (ES-166UEP) or a wall-mount case (ES-166UE/Wall).</p><p><br />Viewing <br />Distance: 35'<br />Time Code Input: ESE, SMPTE/EBU, ASCII<br />Options: ESE, J, NTP-C, NTP-C/PoE, P, P2, PoE, Q, RS, TZ,UL,W, Wall</p><p><br />This unit includes the following options: <br /><b>NTP-C</b> - NTP Client: NTP Client Displays synchronize exclusively with an NTP server (replaces all standard inputs).<br /><b>Blue:</b> Blue LED Displays.<br /><b>P:</b> 19" Front Panel (Rack Mount): Designed for mounting into a standard equipment rack. Panel is 1/8" black anodized Aluminum and chassis is 5" - 10" deep.<br /><b>PoE:</b> Receives 48V operating power via Ethernet cable.</p>
