Thomson Super Ball Bushing,Bore Dia 1.000 In SUPER16OPN ZO-G2778833 - SIM Supply
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| simsupply.com | ZO-G2778833 | 1 | 97 | 1 | 1 @ $126.72 |
| TLM-465 | 1 | 1 | 1 @ $83.27 | ||
| cbtcompany.com | SUPER16OPN | 1 | 1 | 1 @ $101.24 | |
 Misumi USA | SUPER16OPN | 1 | 1 | 1 @ $108.68, 10 @ $108.68 | |
 MRO Supply | 1815855 | 2 | 2 | 1 @ $78.73 | |
 Zoro | G2778833 | 1 | 102 | 1 | 1 @ $93.75 |
| Grainger | 2LEW2 | 1 | 1 | ||
 National Supply Network | 35528132 | 1 | -2 | 1 | 1 @ $100.48 |
| Applied Industrial | 100765255 | 1 | 1 | ||
| TOM SUPER16OPN | 1 | -2 | 1 | 1 @ $0.00 | |
| motionindustries.com | 00000600 | 1 | -2 | 1 | 1 @ $130.27 |
 Purvis | SUPER16OPN | 1 | -2 | 1 | 1 @ $103.18 |
| sustainablesupply.com | C1674077 | 1 | -2 | 1 | 1 @ $106.32 |
 AmazonTP | B00BJD0AKW | 1 | 1 | 1 @ $77.01 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

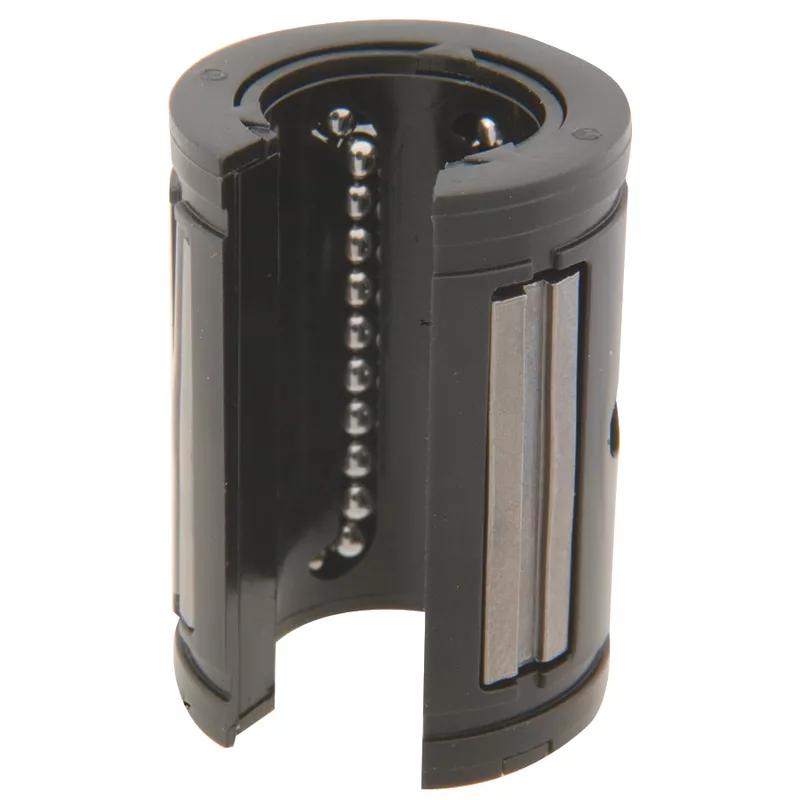

Thomson SUPER16OPN Super Bushed Ball Bearing, 1.000" Bore
Brand: THOMSON
'Super Ball Bushing, Open, Bore Dia 1.000 In, Inside Dia Tolerance +/- .001, Outside Dia 1.563 In, Required Housing Bore Dia 1.563 In, Slot Width 0.560 In, Slot Angle (Degrees) 15, Retention Hole Dia 0.140 In, Retention Hole Location 0.130 In, Between Grooves 1.884 In, Length 2.250 In, Dynamic Load Capacity 780 Lb, Temp Range 0 - 185 F, Delrin Material, For Use With Thomson Shafting'
Details
- Dimension E: - Dimension d: - Outside Dia. Tolerance: - Dimension T: 1.000 Dimension YZ: - Outside Dia.: 1.5630" Slot Width (mm): - Dimension C: 2.250 Dimension XZ: - Max. Pv: - Dimension JB: - Dimension C2: - Dimension JA: - Dimension B: - Dimension J: - Dimension Y: - Required Housing Bore Dia. (mm): - Dimension HB: - Dimension X: -
- Price For: Each Includes: - Agency Compliance: - Retention Hole Dia. (mm): 0.140" Static Load Capacity (Lb.): - Accelerated Speed: 450 Feet/Second Steady State Speed: 10 Feet/Second Temp. Range (F): 0 - 185 Self-Alignment: Yes Seal: - Material: Delrin Dimension C1: 1.884" Dimension G: 0.130" Dimension F: 0.140" Dynamic Load Capacity (Lb.): 780
- Item: Super Ball Bushing Bearing Type: Open Inside Dia. Tolerance: +/- .001 Slot Width (In.): 0.560 Slot Angle (Degrees): 15 Retention Hole Location: 0.130" Between Grooves (mm): 1.884" Length (In.): 2.250 Required Housing Bore Dia. (In.): 1.563 Dimension HA: - Dimension K: - Load Capacity: - Dimension H3: - Dimension H2: - Length (mm): - Dimension B2: - Bore Dia.: 1.000"
- Country of Origin : United States
Listing
| Binding | Misc. |
|---|---|
| Product group | BISS |
| Product type | BEARINGS_AND_BUSHINGS |
| Model | SUPER16OPN |
| Part number | SUPER16OPN |
| Items per pack | 1 |
| Label | Thomson |
| Manufacturer | Thomson |
Catalog
| Feature | Price For: Each Includes: - Agency Compliance: - Retention Hole Dia. (mm): 0.140" Static Load Capacity (Lb.): - Accelerated Speed: 450 Feet/Second Steady State Speed: 10 Feet/Second Temp. Range (F): 0 - 185 Self-Alignment: Yes Seal: - Material: Delrin Dimension C1: 1.884" Dimension G: 0.130" Dimension F: 0.140" Dynamic Load Capacity (Lb.): 780 |
|---|---|
| Category | Industrial & Scientific |
| MPN | SUPER16OPN |
| UPC | 662486102625 |
| EAN | 662486102625 |
| Product group | BISS |
| Product type | BEARINGS_AND_BUSHINGS |
| Manufacturer | Thomson |
Thomson SUPER16OPN, Ball Bushing Bearing, Super, Open, for continuously supported applications, self-aligning; use with 1 in Diameter Shaft, Class L
Brand: THOMSON
Details
- The Super Ball Bushing Bearing is the industry standard for self-aligning linear bearings; This bearing provides 3X the load capacity or 27 times the travel life of conventional linear bearings
- Besides the dramatic increase in load capacity, Super Ball Bushing bearing is self-aligning, lightweight and adjustable with a low coefficient of friction
- The wear-resistant, engineered-polymer retainers and outer sleeves reduce inertia and noise in critical, high speed applications
- Radially floating bearing plates; When installed in an adjustable housing, the Super Ball Bushing Bearing may be adjusted to a specific diametrical fit-up for accurate and repeatable movement
Listing
| Binding | Misc. |
|---|---|
| Product group | BISS |
| Product type | BEARINGS_AND_BUSHINGS |
| Model | SUPER16OPN |
| Part number | SUPER16OPN |
| Items per pack | 1 |
| Label | Thomson industries |
| Manufacturer | Thomson industries |
Catalog
| Feature | The Super Ball Bushing Bearing is the industry standard for self-aligning linear bearings; This bearing provides 3X the load capacity or 27 times the travel life of conventional linear bearings |
|---|---|
| Category | Industrial & Scientific |
| MPN | SUPER16OPN |
| UPC | 662486917977 |
| EAN | 662486917977 |
| Product group | BISS |
| Product type | BEARINGS_AND_BUSHINGS |
| Manufacturer | Thomson industries |
