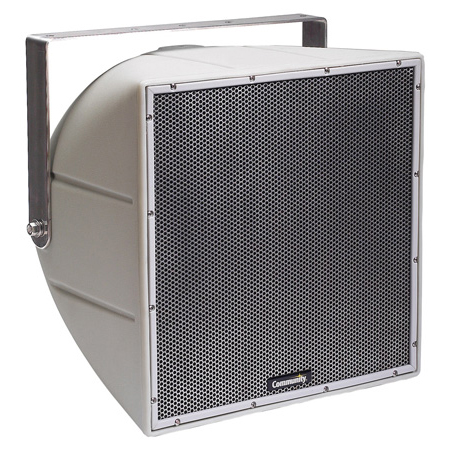

The R.5-66TZ two-way, full-range loudspeaker system is engineered to provide quality full-range sound projection in a variety of outdoor and indoor applications. Its wide range, smooth frequency response and high efficiency ensure both high fidelity music reproduction and superb projection of clear intelligible speech with very low distortion. An input autoformer with switchable taps provides impedance matching to 70V or 100V lines. Five year limited product warranty - <strong>fifteen-year</strong> enclosure warranty.<strong>Applications:</strong><br />Fill speaker for stadia, athletic fields, arenas and race tracks<br />Convention centers<br />Outdoor background music / paging systems<br />Theme and amusement parks<br />Fairgrounds, rodeos, air shows<br />Malls, cruise ships, skating rinks<br />Swimming pools<br />Portable sound systems</p>

The R566TZ twoway fullrange loudspeaker system is engineered to provide quality fullrange sound projection in a variety of outdoor and indoor applications Its wide range smooth frequency response and high efficiency ensure both high fidelity music reproduction and superb projection of clear intelligible speech with very low distortion An input autoformer with switchable taps provides impedance matching to 70V or 100V lines Features. Weatherresistant rotomolded UV enclosure. Weathertreated drivers and crossovers. Corrosionresistant zincrich epoxy duallayer. Powder coated steel grille and yoke. Pattern control down to 630 Hz. High efficiency. Integral mounting points. High power passive crossover. DYNATECH protection circuitry. Multitap 200W autoformer for 70V and 100V inputs. Recommended Power. 50W to 200W at 100 Volts. 102 dB SPL 250 Hz to 4 kHz speech rangeSpecifications. Color Gray. Size 12 in. Loudspeaker Type 2way horn loaded coaxial weatherresistant. Protocols TCPIP UDP RTP SIP DHCP Multicast. Operating Range 85 Hz to 16 kHz. Sensitivity 1W1m 102 dB SPL 125 Hz to 10 kHz 13 octave bands. 200W Tap 125 dB SPL. Impedance 25 ohms. Impedance 164 ohms at 93 kHz. Axial Q DI 214 133 16 kHz to 125 kHz. Crossover Frequency 2 kHz. Processing 90 Hz high pass filter. Drivers LF 1 12 Ferrofluidcooled. Driver Protection DYNATECH. Input Connection 12 foot 4 m SJOW 16 gauge. Weight 43 lbs
