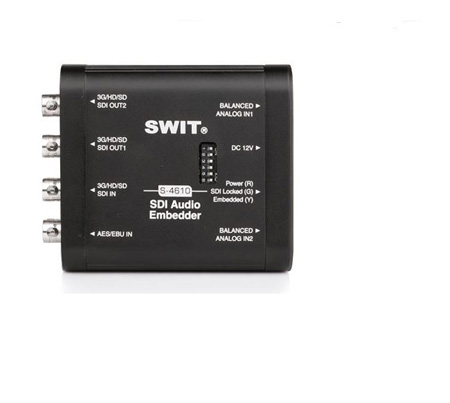

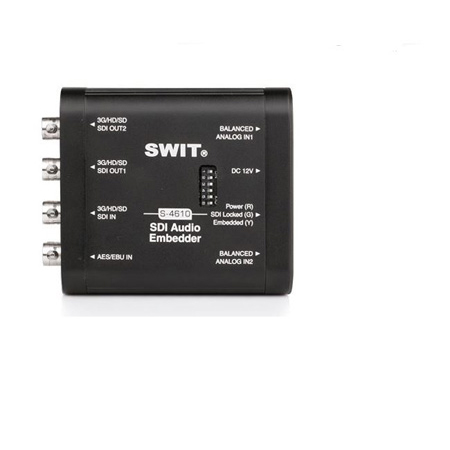

The <strong>Swit S-4610</strong> is a mini SDI audio Embedder, supports up to 3Gb/s SDI, and can be widely used in broadcast field production and professional audio/video conversion and transmission. S-4610 can embeded 2-ch AES /EBU or anolog audios to any 2 audio channels of SDI signal. User can select the channel number to be embedded by the 6 switchers on the front panel of the product. S-4610 also has two SDI with embedded audio outputs. <br />S-4610 built with 3 LED indictors which is convenience for user checking the status of power connections, SDI input recognization and output status of the new embedded SDI signal delivery. </p><p>S-4610 offers:<br />1x 3G/HD/SD-SDI input<br />1x AES/EBU digital audio input (2-ch)<br />2x 6.35mm 1/4" analog audio input (balanced) <br />2x New Embedded 3G/HD/SD-SDI outputs <br />(If both AES/EBU audio and analog audio is connected, only AES/EBU audio embeded)</p>

The Swit S4610 is a mini SDI audio Embedder supports up to 3Gbs SDI and can be widely used in broadcast field production and professional audiovideo conversion and transmission S4610 can embeded 2ch AES EBU or anolog audios to any 2 audio channels of SDI signal User can select the channel number to be embedded by the 6 switchers on the front panel of the product S4610 also has two SDI with embedded audio outputs S4610 built with 3 LED indictors which is convenience for user checking the status of power connections SDI input recognization and output status of the new embedded SDI signal delivery Features. Mini 3GSDI Audio Embedder. Mini 3GSDI Audio Eembedder. Embed audio to any 2 channels of the first 8channels of SDI signal. 1x AESEBU audio input. 2x 635mm balanced audio inputs. Provided 2x 3GSDI with embedded audio outputs. Powerinputoutput status indicators. Poletap 618V DC power input. Heavy duty aluminium housing. Bottom screw threads for installing. Power consumption 3W. Working voltage DC 65 17V. Working environment Temperature 0C70C Humidity1090. Dimension 39 x 33x 11 inch 98 x 84 x 29mm. SMPTE425M 1080p. SMPTE274M 1080i 1080p. SMPTERP211 1080psf. SMPTE296M 720p. SMPTE125M 480i. Type AESEBU. Output level 5Vpp. Max output level 24dbu. Input1 3GHDSDSDI 1 AESEBU digital audio input 2 Analog audio 14 input. Output2x New embedded 3GHDSDSDI outputIncludes. 1xS4610 1x AIP00 installing plate 1x ACDC power adaptorSpecifications. Weight 2 lbs
