Amp - Te Connectivity 1658620-3

B00FRBUXT0

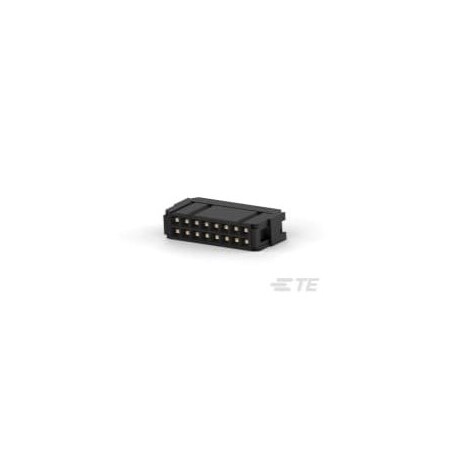

Amp - Te Connectivity Wire-Board Connector Receptacle 16 Position, 2.54Mm - 1658620-3

Amp - Te Connectivity Wire-Board Connector Receptacle 16 Position, 2.54Mm - 1658620-3zoom

Attributes

Key Value
Accepts Wire Insulation..787 ? .94?mm?[?.031 ? .
Agency ApprovalsCSA ; UL
AngleStraight
Base Product Number1658620
Cable TerminationIDC
CategoryConnectors, Interconnec.
Centerline (Pitch)2.54?mm?[?.1?in?]
Circuit ApplicationSignal
ColorBlack
ConnectorWire & Cable, Receptacle
Connector Height15.16?mm?[?.5968?in?]
Connector Mounting TypeCable Mount (Free-Hangi.
Connector ProfileLow
Connector SystemWire-to-Board
Connector TypeReceptacle
Connector Width6.1?mm?[?.2402?in?]
Contact Base MaterialPhosphor Bronze
Contact Current Rating .1
Contact FinishGold
Contact Finish Thickness15.0?in (0.38?m)
Contact MaterialPhosphor Bronze
Contact Mating Area Pla.Gold or Palladium Nicke.
Contact Mating Area Pla..38??m?[?15 ? 15??in?]
Contact PlatingGold Over Nickel
Contact TypeForked, Socket
Current Rating1 A
Fastening Type-
FeaturesFeed Through
Header TypePin Header
Housing ColorBlack
Housing FinishTin-Lead
Housing MaterialThermoplastic
Mating AlignmentWith
Mating Alignment TypePolarization
Mating RetentionWithout
MfrTE Connectivity AMP Con.
Mounting TypeFree Hanging (In-Line)
Number of Contacts16
Number of Positions16
Number of Rows2
Operating Temperature-55 to +105 ?C
Operating Temperature R.-65 ? 105??C?[?-85 ? 22.
Overall Length0.98 "
PackageTube
Packaging MethodBox & Tube, Tube
Packaging Quantity60
Panel Mount FeatureWithout
Part StatusActive
PCB Mount AlignmentWithout
PCB Mount OrientationVertical
PCB Mount RetentionWithout
Pin Spacing0.1 in
Pitch0.100" (2.54mm), 2.54 m.
Primary TypeCable Connector
Product HeaderNovo Type AMP-LATCH? Ri.
Row Spacing0.100" (2.54mm)
Row-to-Row Spacing2.54?mm?[?.1?in?]
SeriesAMP-Latch, AMP-LATCH NO.
Special FeaturesMilitary Polarized
TerminationIDC
Termination Method to P.Through Hole - Solder
Termination Method to W.Insulation Displacement.
TypeReceptacle
UL Flammability RatingUL 94V-0
Wire Gauge26-28 AWG
Wire Size.08 ? .15, 28 ? 26, 158.
Wire TypeRibbon Cable

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Freelance Electronics1658620-30.56379125TE Connectivity0.56379 @ 25
WaldomTE CONNECTIVITY 1658620-31.0154025TE Connectivity1.01 @ 25
Future Electronics83894701.038108025TE Connectivity1.038 @ 1080
Onlinecomponents.com1658620-31.11857TE Connectivity / AMP Brand1.1 @ 25
TE Connectivity1658620-31.282219968TE Connectivity (TE)1.2822 @ 25
thumbzoomNewark36K30111.321861AMP - TE CONNECTIVITY1.32 @ 25
RS Delivers782-88521.848125TE Connectivity1.848 @ 25
thumbzoomNEP Electronics1658620-31.87676025TE Connectivity1.8767 @ 60
Digi-Key147755581.8933615704TE Connectivity AMP Connectors1.89336 @ 25
thumbzoomZoroG0058920102.166025Te Connectivity2.16 @ 60
us.rs-online.com700430702.671181TE Connectivity2.67 @ 25
AmazonTPB07KWHZLDX43.011251TE Connectivity / AMP Brand43.01 @ 25
