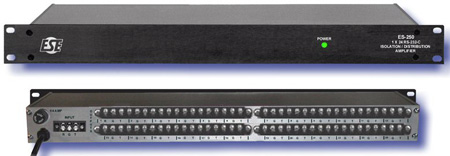

The ES-250 is an RS-232-C Isolation and Distribution Amplifier. Three 1 x 8 amplifier circuits allow the incoming signal to be distributed via the 24 outputs. The unit receives RS-232-C and buffers the signal so that each of the 24 outputs can drive a single ?user? at a distance of up to 50 feet (per output). All inputs and outputs are via rear mounted terminal block connectors. The two main purposes of the ES-250 are to: <br />1) improve the distribution capabilities of RS-232-C<br />2) provide isolation between users of RS-232-C</p>

RS232 ASCII Distribution Amplifier The ES250 is an RS232C Isolation and Distribution Amplifier Three 1 x 8 amplifier circuits allow the incoming signal to be distributed via the 24 outputs The unit receives RS232C and buffers the signal so that each of the 24 outputs can drive a single user at a distance of up to 50 feet per output All inputs and outputs are via rear mounted terminal block connectors The two main purposes of the improve the distribution capabilities of RS232C2 provide isolation between users of RS232C Features. Use for distributing ASCII Time Codes. 24 isolated outputs. Terminal Block Input Output connectors. RxD feed thru on Channel 1 output for Query ApplicationsSpecifications. Size 1 x 24 in. Weight 10 lbs
